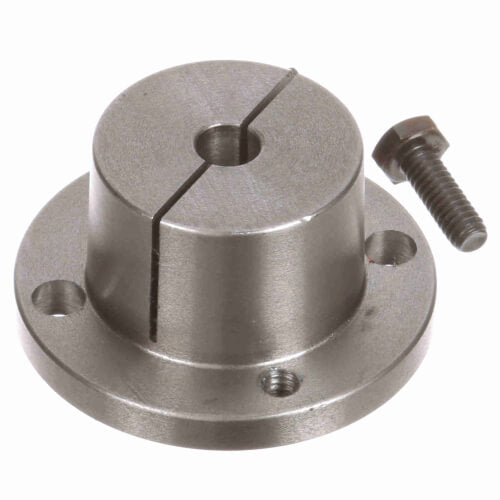

Browning H3/8 1/4 x 3/4 Split Taper Bushing w/ 3/8 Bore

Product Description

The Browning H3/8 is a 1/4 x 3/4 split taper bushing with a 3/8 bore. This bushing is designed for reliable performance in HVAC and motor applications. It features a lifetime guarantee and is keyed to both the shaft and hub, ensuring a secure fit. The external key delivers positive drive without introducing torque on the cap screws, enhancing overall stability.

• Lifetime guarantee
• Easy installation with solid flange
• Highest torque carrying capacity of 95 lb-in

Product Highlights

The Browning split taper bushing is engineered to provide a reliable clamp fit for consistent operation. The double split barrel enhances concentricity, ensuring that the shaft is accurately gripped.

Product Information

Standard Information

• Brand: Browning
• MPN: H3/8

Technical Specifications

• OD: 2-1/2 inches
• Bore Sizes: 3/8 and 3/4 inches
• Torque Rating: 95 lb-in
• Cap Screws: 2 units, size 1/4 x 3/4 inches
• Length: 1-1/4 inches
• Weight: 0.84 pounds
• Shipping Dimensions: 2.8 x 2.6 x 1.4 inches
