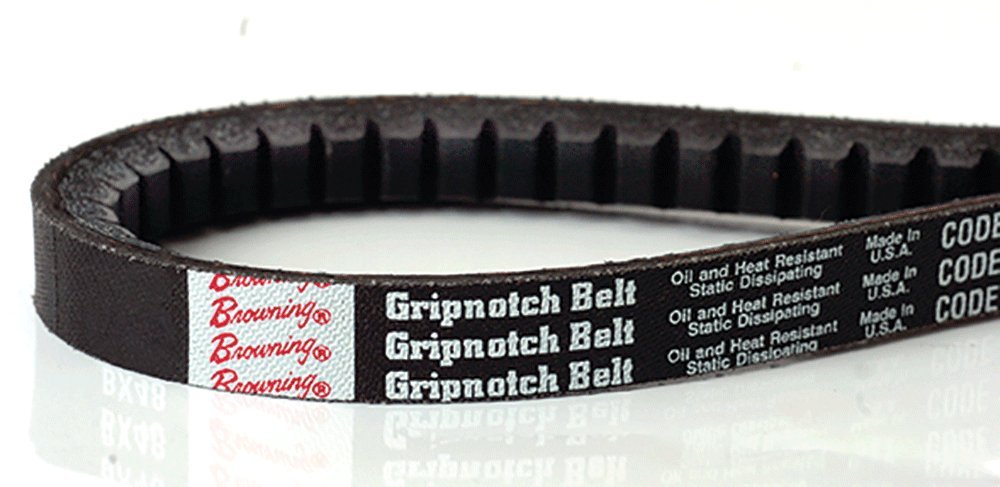

Browning BX210 Gripnotch Belt, BX Belt Section, 211.8 Pitch Length

Product Description

The Browning BX210 Gripnotch Belt is designed for robust industrial power transmission. Engineered with precision, this BX Belt Section ensures efficient power handling with a pitch length of 211.8 inches.

• Enhanced durability with oil and heat resistance.
• Features EPDM material for a wide temperature range, supporting environments from -60 degrees F to +230 degrees F.
• Engineered for stability, offering superior sidewall contact and reduced vibration.

Product Highlights

With a belt length of 213 inches, the Browning BX210 incorporates ground form design to minimize vibration and wear, extending the belt's operational lifespan. It's an excellent choice for applications needing high-grade energy transmission capabilities.

Technical Specifications

• Material: EPDM
• Temperature Range: -60F to +230F
• Belt Type: BX Section, Notched Grip
• Length: 213 inches
• Pitch Length: 211.8 inches
• Efficiency: Approximately 98%
• Maximum Operating Temperature: 250 degrees F
