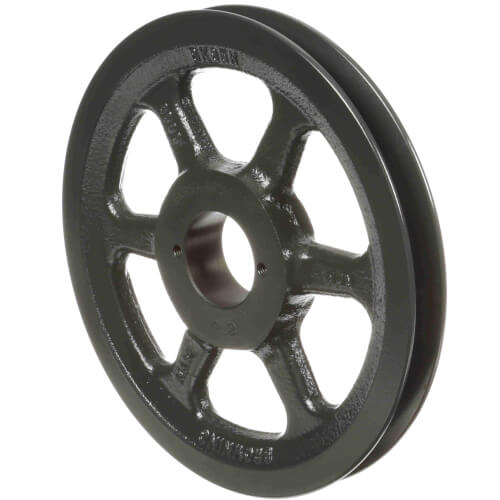

Browning BK85H V-Belt Pulleys - 4L or A, 5L or B Belt Section, 1 Groove, 7.7000 in (A) 8.2000 in (B) Pitch Dia., 8.2500 in O.D.

Product Description

The Browning BK85H is a V-belt pulley designed for various belt configurations. It fits A, 4L, B, and 5L belts, making it versatile for different applications. The product features a pitch diameter of seven point seven inches for configuration A and eight point two inches for configuration B. Its overall design includes a single groove with an outer diameter of eight point twenty-five inches.

• Material: Cast Iron
• Groove Count: 1
• Type of Bore: Split Taper Bushed

Product Highlights

This pulley is manufactured from durable cast iron, allowing for close tolerances and better performance. The statically balanced design ensures smooth and vibration-free operation.

Product Information

Standard Information

• Brand: Browning
• MPN: BK85H

Technical Specifications

• Face Width: 0.8750 in
• Height Through Bore: 1.2500 in
• Overall Width: 1.5625 in
• Weight: 5.05 lbs
• Pitch Diameter: 7.7000 in (A), 8.2000 in (B)
• Outside Diameter: 8.2500 in
• Number Of Grooves: 1
• Bushing Series: H
