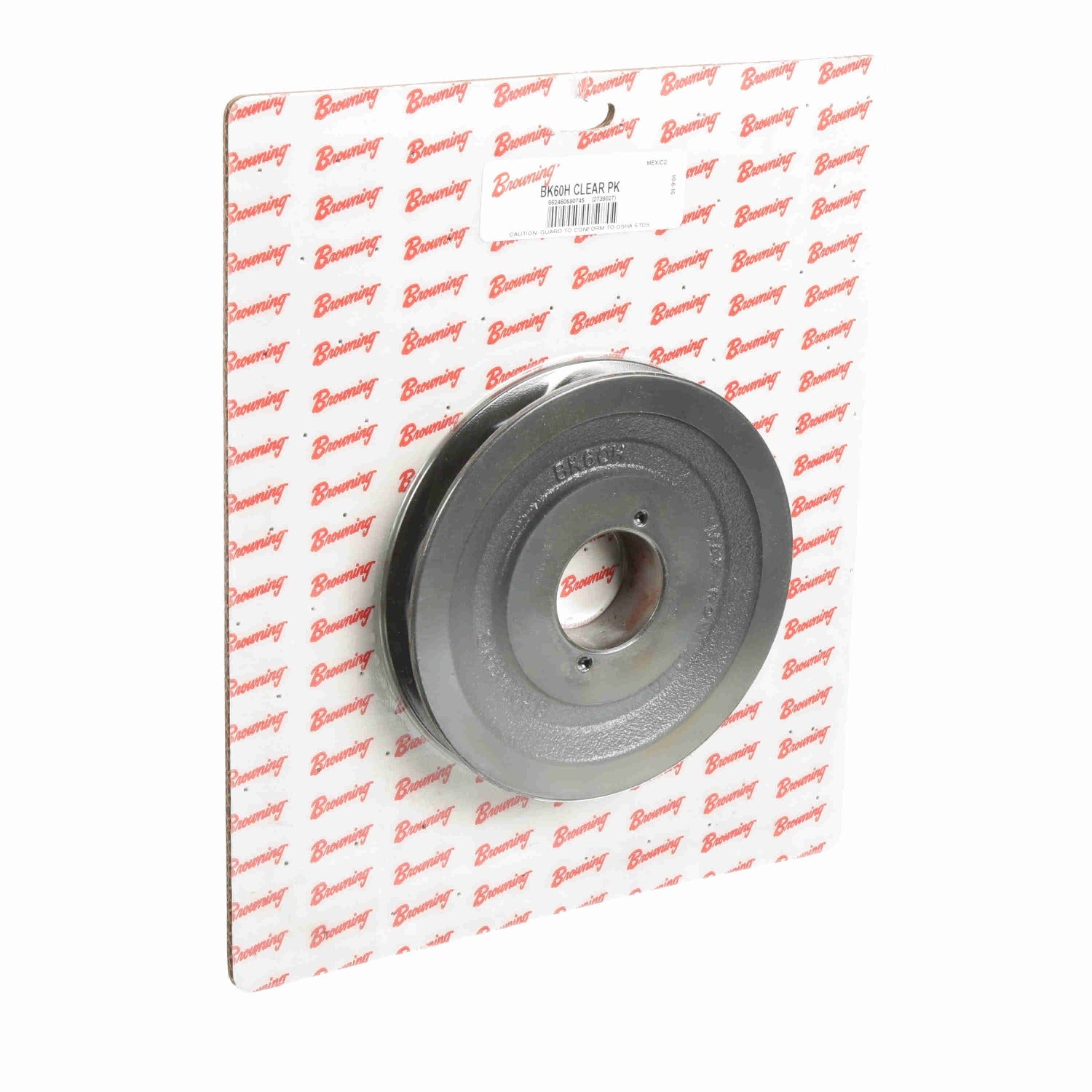

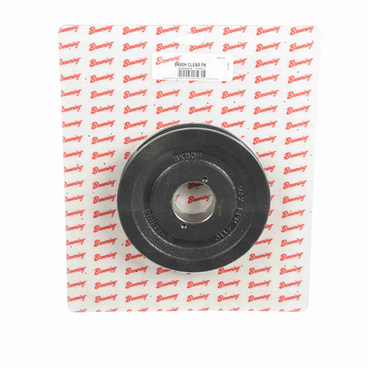

Browning BK60H CLEAR PK Bushed Fixed Diameter Sheave FHP (Clear Pack)

Product Description

Browning BK60H CLEAR PK is a bushed fixed-diameter sheave with an H-series split-taper bushing designed to accommodate multiple V-belt sections. The single combination groove accepts A, 4L, B and 5L belts and provides pitch diameters of 5.2 in (A) and 5.7 in (B) with a 5.75 in outside diameter. Made from close-grain cast iron and statically balanced for reduced vibration, it is intended for fractional-horsepower belt drive applications.

• H-series split-taper bushed bore; minimum bore 0.375 in; uses removable bushing
• Combination single groove accepts A, 4L, B and 5L belt sections; fixed pulley construction
• Close-grain cast iron construction; pitch diameters 5.2 in (A) / 5.7 in (B); outside diameter 5.75 in

Product Highlights

Single-groove cast iron sheave with H split-taper bushing for A/4L/B/5L belts; statically balanced for low vibration.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: BK60H CLEAR PK
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• MPN: BK60H CLEAR PK
• Product Name: Bushed fixed diameter sheave
• Model Name: BKH_Sheave_Master
• Manufacturer Catalog Number: 2739027
• UPC: 662460590745
• Type: V-belt sheave / FHP sheave
• Number of Grooves: 1
• Belt Sections: A, 4L, B, 5L
• Datum Diameter (A): 5.00 in
• Datum Diameter (B): 5.40 in
• Pitch Diameter (A): 5.20 in
• Pitch Diameter (B): 5.70 in
• Outside Diameter: 5.75 in
• Face Width: 0.8750 in
• Outside Length: 1.50 in
• Material: Close-grain cast iron
• Bushing Type: Split taper bushed
• Bushing Series: H
• Bore (Min): 0.375 in
• Bore Size: 1.5000 in
• Pulley Construction: Fixed
• Keyway: Yes
• Weight: 3.545 lb
• Package: Clear pack
• Country of Origin: Mexico
