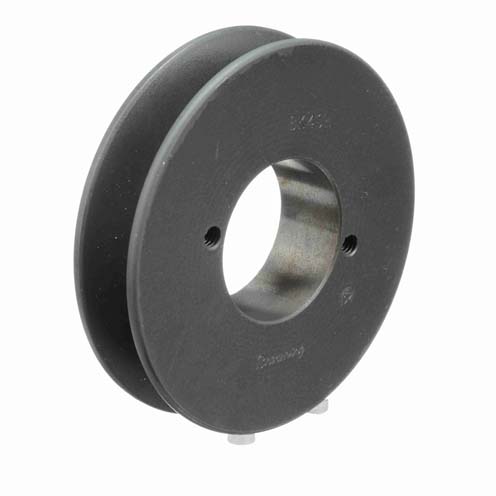

Browning BK40H V-Belt Pulleys - 4L or A, 5L or B Belt Section, 1 Groove, 3.4000 in (A) 3.9000 in (B) Pitch Dia.

Product Description

The Browning BK40H V-Belt Pulley is designed for use with 4L or A, and 5L or B belt sections. This pulley features a single groove and has a pitch diameter of three point four inches (A) and three point nine inches (B). The outer diameter is three point nine five inches. It is constructed from durable cast iron and uses a split taper bushing system. The H series bushing ensures secure mounting and compatibility with various belt types.

• Compatible with A, 4L, B, and 5L belts
• Statically balanced for smooth operation
• Precision machining for tight tolerances

Product Highlights

The BK40H is suitable for fractional horsepower applications, providing versatility across different mechanical power transmission setups.

Product Information

Standard Information

• Brand: Browning
• Country Of Origin: Mexico

Technical Specifications

• Weight: 1.58 lbs
• Face Width: 0.8750 in
• Overall Width: 1.5000 in
• Pitch Diameter: 3.4000 in (A), 3.9000 in (B)
• Outside Diameter: 3.9500 in
• Number of Grooves: 1
• Length Through Bore: 1.2500 in
• Bushing Bore Range: 0.500 - 1.500 in
• Bushing Series: H
