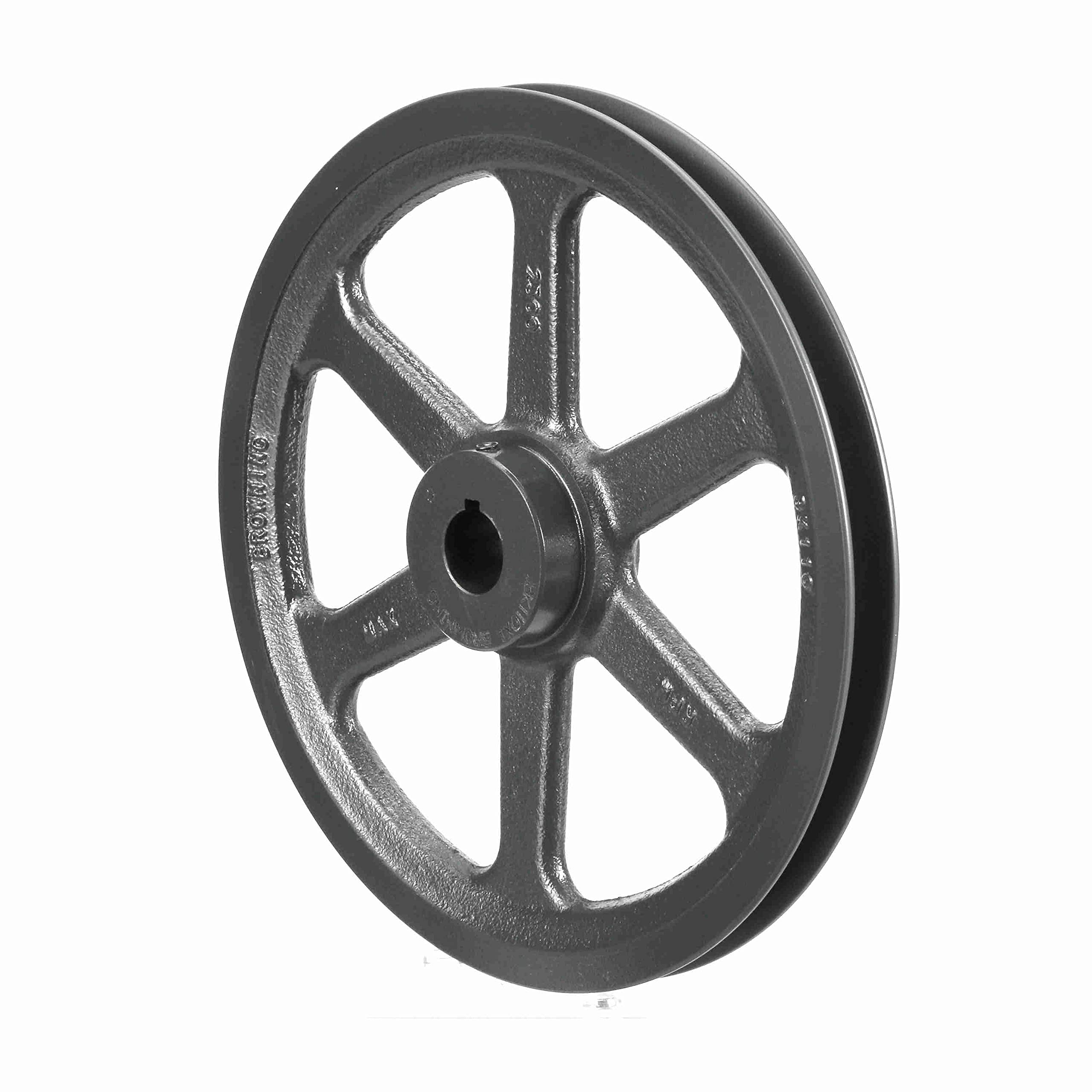

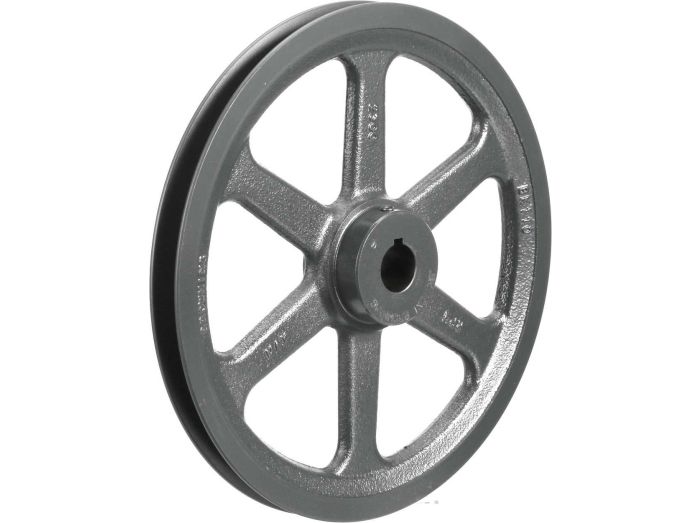

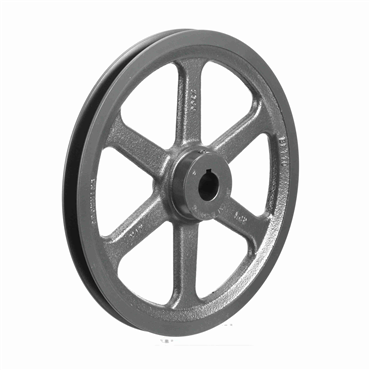

Browning BK110X1 finished bore sheave 1 groove 1 inch bore 10.75 inch diameter

Product Description

The BROWNING BK110X1 is a light-duty, fixed-pitch sheave designed for various applications, including air handling. This cast iron sheave features a 1-inch finished bore and a 10.75-inch outside diameter, accommodating A, B, 4L, and 5L section belts. It provides a single groove for efficient power transmission in fractional horsepower systems.

• Designed for light-duty applications, including air handling.
• Features a combination groove, compatible with A, 4L, B, and 5L section belts.
• Constructed from cast iron with a 1-inch finished bore and 10.75-inch outside diameter.

Product Highlights

Versatile cast iron sheave for light-duty applications, compatible with multiple belt types.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: BK110X1
• Country of Origin: United States

Technical Specifications

• Outside Diameter: 10.7500 in
• Model Name: BK_Sheave_Master2
• Pitch Diameter: 10.2000 in (A) 10.7000 in (B)
• Bore Diameter: 1 inch Finished
• Number of Grooves: 1
• Belt Section: 4L, 5L, A, B
• Material: Cast Iron
• Sheave Type: Fixed Pitch
• Bore Type: Finished Bore
• Face Width: 0.8750 in
• Keyway Size: 0.2500 in
• Overall Width: 1.5313 in
• Datum Diameter: 10.0000 in (A) 10.4000 in (B)
• Length Through Bore: 1.4688 in
• Pulley Construction: Spoked
• Outside Diameter Range: 9-10.9
