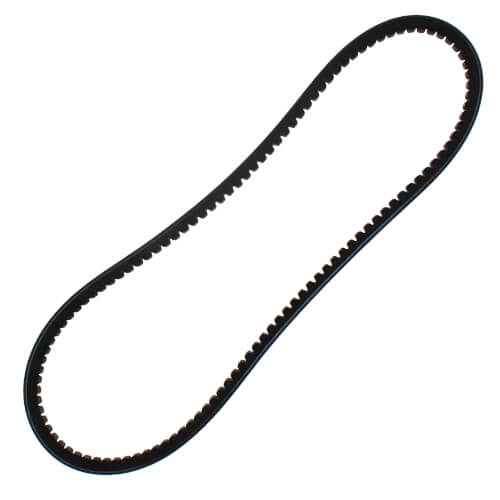

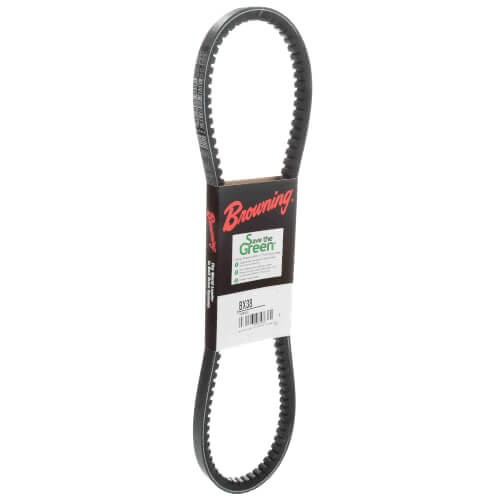

Browning Belt BX38 TorqTitan Gripnotch Belt w/ 39.8 inches Pitch

Product Description

The BROWNING BELT BX38 TorqTitan Gripnotch Belt features precision molded cogs that provide more surface area for heat dissipation and increase belt flexibility. It assures longer life when replacing existing Wrapped V-Belts. The belt offers the "Code 1" Match belt system, allowing easy selection of just one match number for each belt size.

• Precision Molded Cogs provide more surface area for heat dissipation and increase belt flexibility.
• Close Belt tolerance allows easy selection of just one match number for each belt size.
• High Tensile Cord provides strength and additional flex life while providing resistance to elongation.

Product Highlights

This Gripnotch Belt has raw-edge sidewalls for improved gripping and smoother performance. It is made of EPDM material and has a 39.8" pitch length.

Product Information

Standard Information

• Brand: BROWNING BELT
• Manufacturer Part Number: BX38

Technical Specifications

• Belt Type: Gripnotch Belt
• Pitch: 39.8
• Outside Length: 41"
• Max Operating Temp: 250°F
• Material: EPDM
• Belt Category: Gripnotch
• Section: BX
• Number Of Strands: 1
• Nominal Outside Length: 41 in
• Cogged/Smooth: Cogged
• Top Width Per Strand: 21/32 in
• Construction Type: Cogged
• Belt Style: Gripnotch
• Reinforcing Cord Material: Nylon
• Resistance Features: Water/Electrostatic
• Top Width: 21/32 in
• Pitch Length: 39.8000 in
• Manufacturer Upc Number: 662289234929
• UPC_NO: 662289234929
• Manufacturer Catalog Number: BX38
• Band Type: Belt with Ends Joined
• Belt Height: 13/32 in
• Product Type: Industrial V-Belts
• Cord Material: Synthetic Fiber
• Thickness: 0.4375 in
• Operating Temperature [Max] °F: 250
• Operating Temperature [Max] °C: 121
• Outside Diameter (in): 41
