Product Description

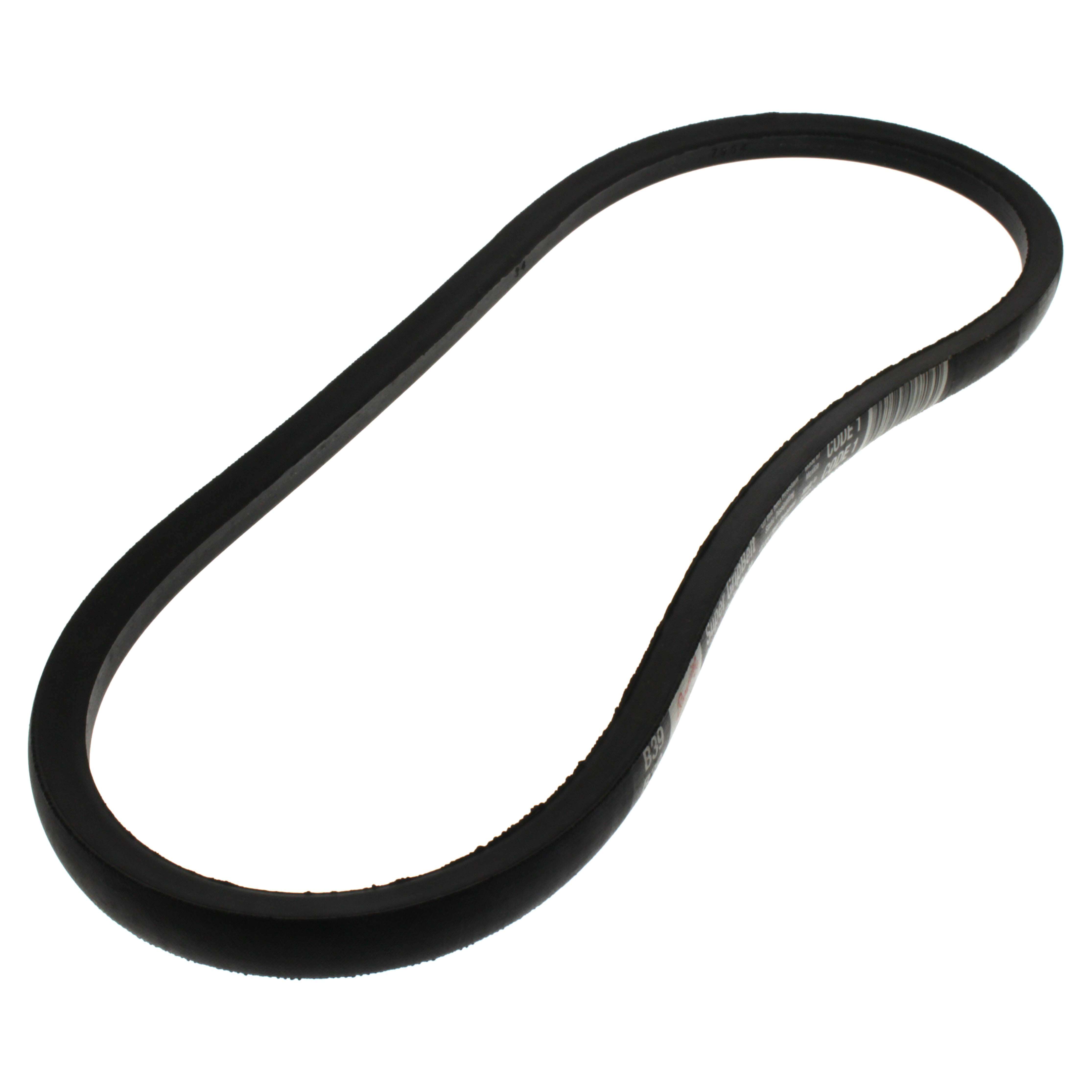

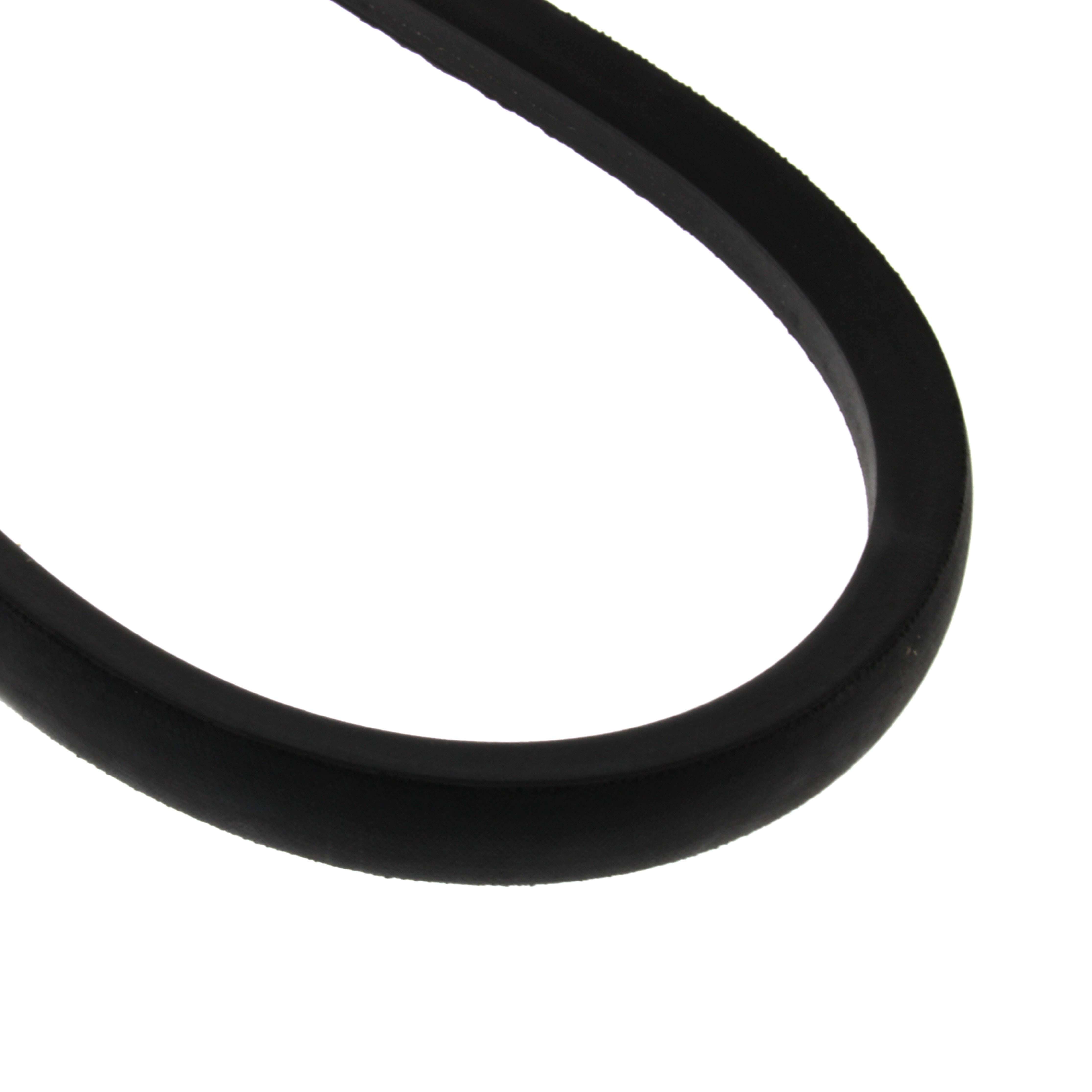

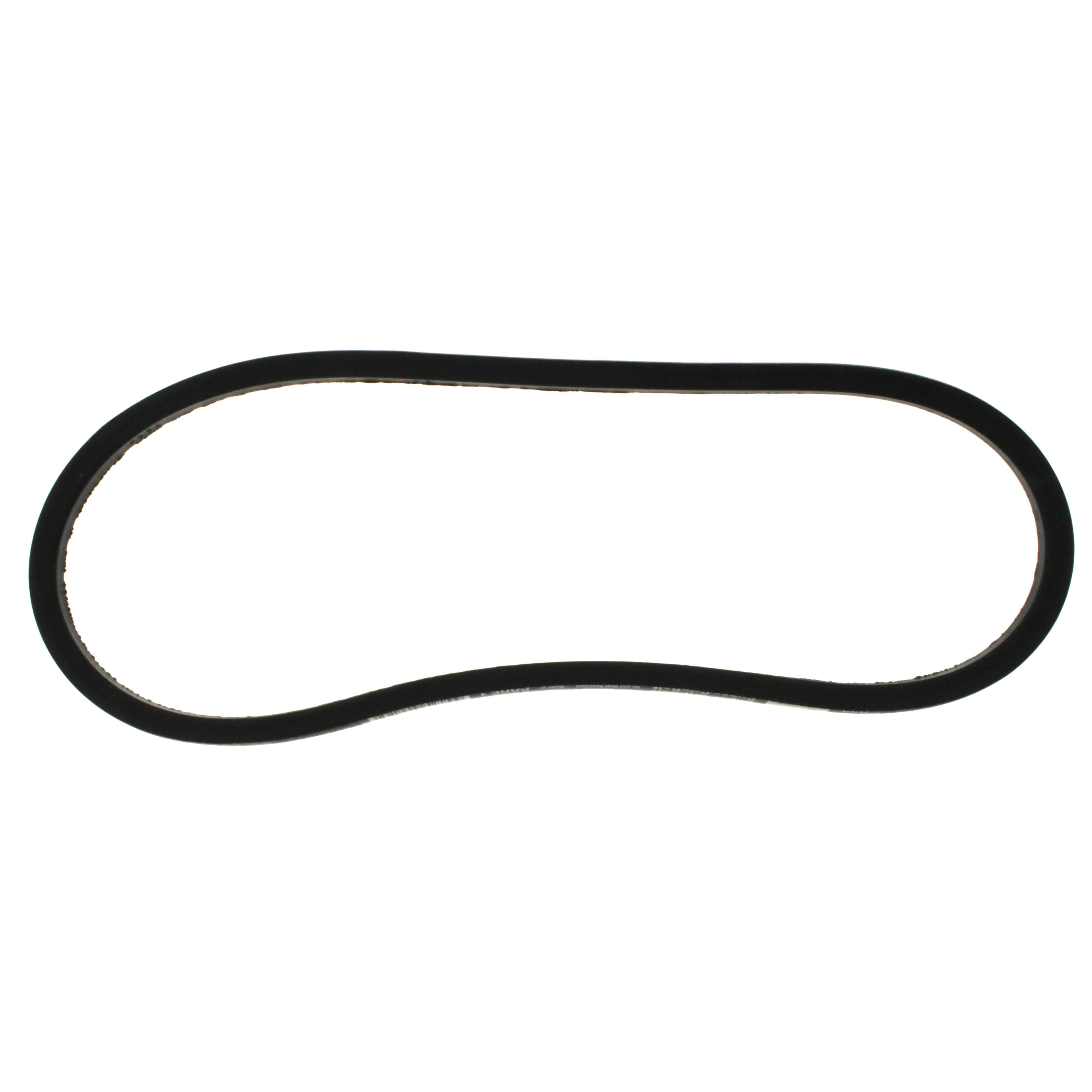

The BROWNING B39 V-Belt is a type B belt with an outside circumference of 42 inches and a top width of 21/32 inch. Constructed from SBR compound, it is suitable for applications such as aggregate and cement, agriculture, HVAC, minerals and mining, oil and gas, pulp and paper, and unit handling. The belt has a pitch length of 40.8 inches and a temperature rating of 140 Deg F.
- Wrapped construction provides smooth, quiet operation.
- Single fabric design allows greater flexibility.
- High tensile cord provides strength and additional flex life.
Product Highlights
This V-belt is designed for maximum performance and service life in demanding industrial applications. Its wrapped construction and high tensile cord ensure durability and reliable operation.
Product Information
Standard Information
-
Brand: BROWNING
-
Manufacturer Part Number: B39
-
Country of Origin: United States
Technical Specifications
-
Type: B
-
Outside Circumference: 42 Inch
-
Top Width: 21/32 in
-
Thickness: 7/16 Inch
-
Material: Synthetic Rubber - Neoprene Wrapped
-
Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper, Unit Handling
-
Pitch Length: 40.8 Inch
-
Temperature Rating: 140 Deg F
-
Brand Name: Browning
-
Category: Motors & Power Transmission
-
Manufacturer Name: Browning
-
Manufacturer Part Number: B39
-
Manufacturer Part Number Additional: 3433042
-
Series-Brand: Gripbelt
-
Mfg Series-Brand: Super Gripbelt
-
Construction: Wrapped
-
Belt Category: Gripbelt
-
Section: B
-
Number Of Strands: 1
-
Nominal Outside Length: 42 in
-
Cogged/Smooth: Smooth
-
Top Width Per Strand: 21/32 in
-
Construction Type: Classic
-
Belt Style: Gripbelt®
-
Reinforcing Cord Material: Synthetic Fiber
-
Standards Met: MPTA IP-20, RMA
-
Manufacturer Upc Number: 662289037162
-
UPC_NO: 662289037162
-
Manufacturer Catalog Number: B39
-
Band Type: Belt with Ends Joined
-
Belt Type: Super Gripbelt V-Belts
-
Belt Height: 13/32 in
-
Product Type: Industrial V-Belts
-
Cord Material: Synthetic Fiber
-
MODEL: 3433042
-
BRAND: Browning
-
SKU: 2285878
-
UOM: each
-
cogged: No
-
depth: 7/16"
-
depth (per rib): 7/16"
-
outside length: 42"
-
Part Height: 0.438
-
Product type: Wrapped Belt
-
top width: 21/32"
-
top width (per rib): 21/32"
-
Number of Bands: 1
-
Belt Pinch: 40.8
-
Smooth/Cogged: Smooth
-
Material [Features]: Neoprene
-
Belt Type [Features]: Super Gripbelt, B
-
Max Operating Temp [Features]: 140°F
-
Item [Specifications]: B39 Browning Belt
-
Country of Origin (subject to change) [Specifications]: United States
