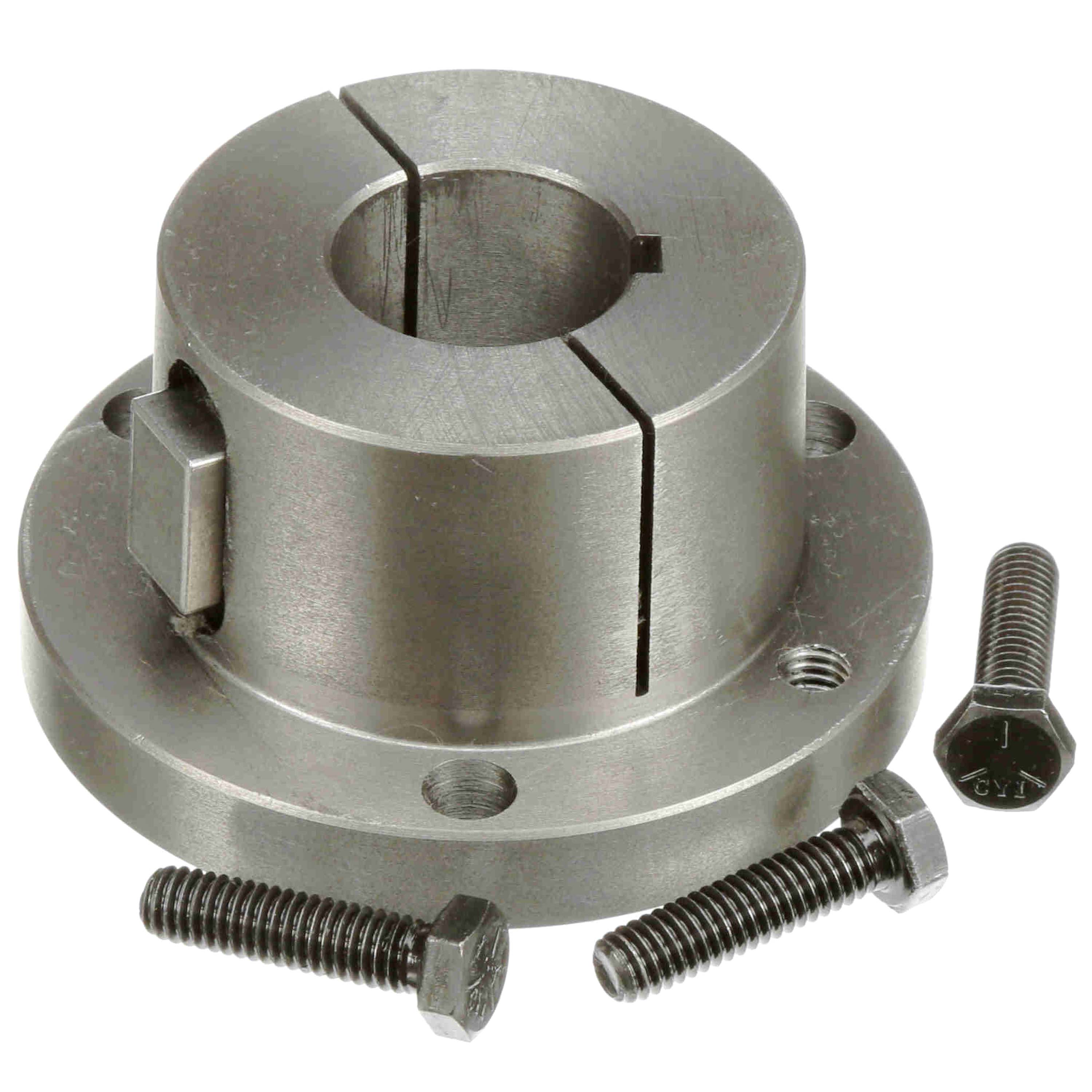

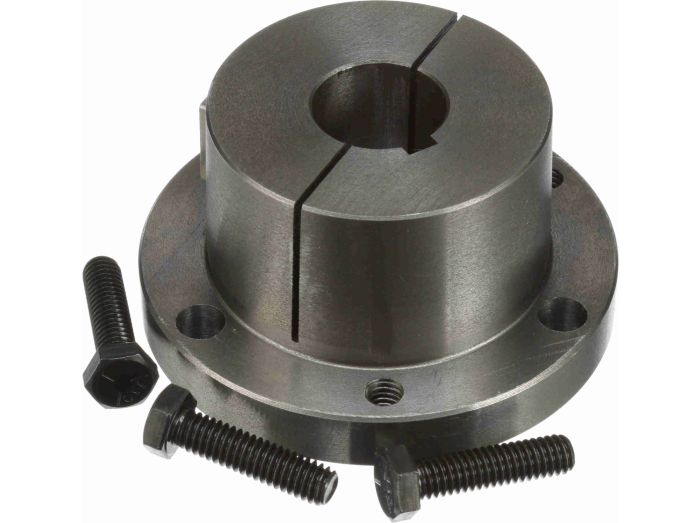

Browning B13/16 Bushing 1-3/16 inches Bore

Product Description

The Browning B13/16 bushing is a component designed to reduce friction and wear between moving parts in mechanical systems. It is suited for applications with relative motion between surfaces, such as shafts and bearings. Features a solid flange and double split barrel for better concentricity. The bushing has a 1-3/16" bore.

• Solid Flange & Double Split Barrel
• Key to Key Drive
• 3/4" per Foot Taper on Barrel

Product Highlights

This bushing reduces friction and wear between moving parts, ensuring optimal performance in mechanical systems.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: B13/16

Technical Specifications

• OD: 3-11/16"
• Bore: 1-3/16"
• Bushing: B
• Keyseat: 1/4" x 1/8"
• Product Type: Split Taper Bushing
• Length (Inches): 1-15/16"
• Cap Screws (No.): 3
• Cap Screws (Size): 5/16" x 1-1/4"
• Manufacturer Part Number: 3695087
• Manufacturer: Browning
• Family Series: Browning Bushings
• Bushing Type: B
• Brand: Browning
