Browning AK25X3/4 finished bore sheave 3/4 in bore (1 groove)

Product Description

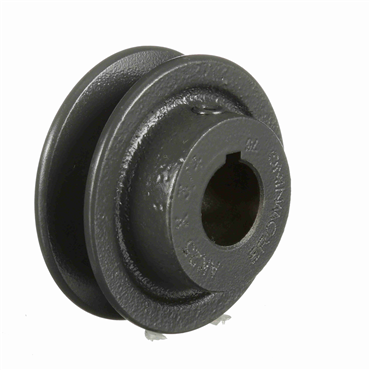

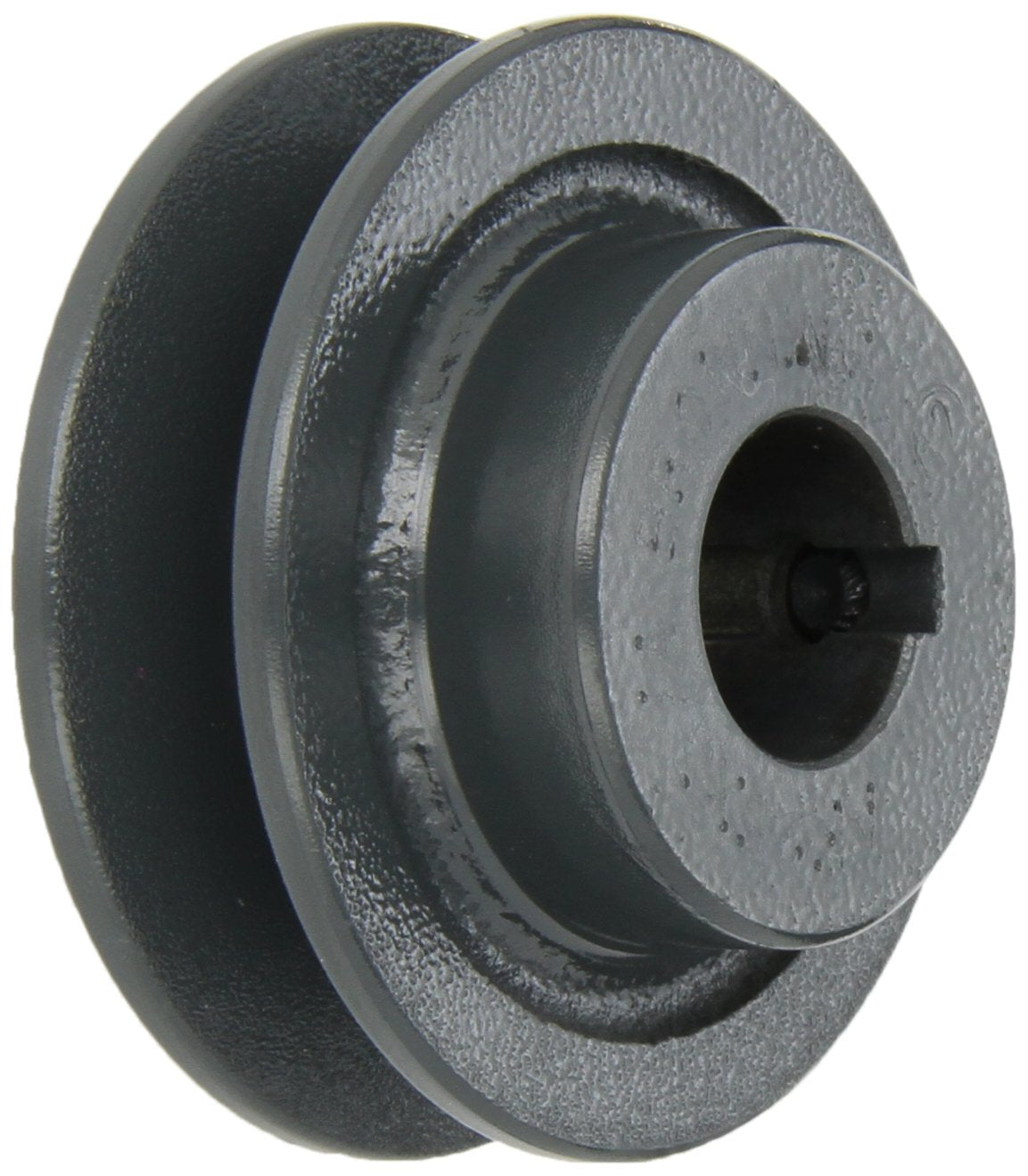

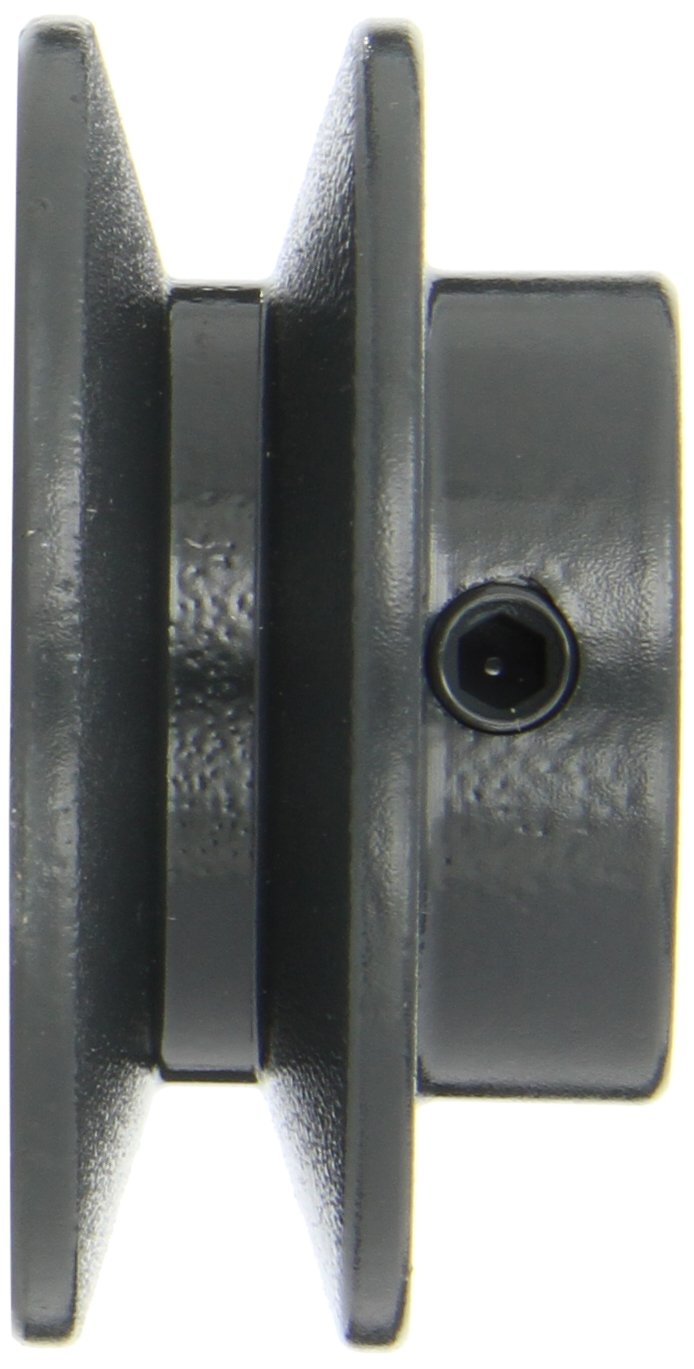

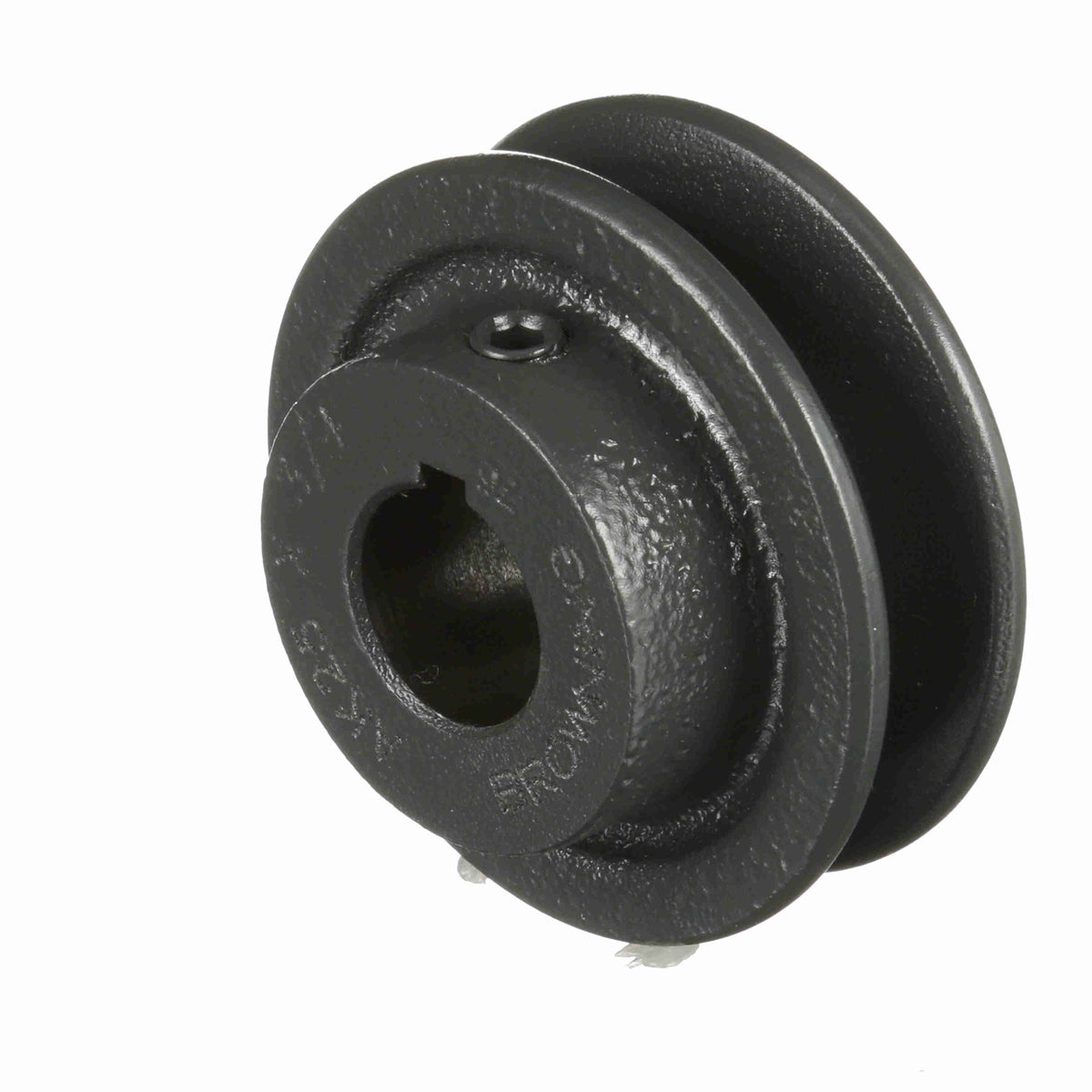

Browning AK25X3/4 is a finished-bore cast iron sheave with a 3/4 in (0.75 in) bore and a single V-belt groove. The sheave has a 2.50 in outside/pitch diameter (A), a 1.960 in pitch diameter for 3L belts, and a 0.75 in face width. It is statically balanced, machined from close-grain cast iron, and intended for fractional-horsepower V-belt drive applications using 3L or 4L/A belt sections.

• Finished 0.75 in bore, single-groove sheave compatible with 3L and 4L/A belts
• 2.50 in outside/pitch diameter (A) with 0.75 in face width; statically balanced
• Close-grain cast iron, solid construction; overall width 1.23 in, length through bore 0.9375 in

Product Highlights

Finished-bore cast iron V-belt sheave, 3/4 in bore, 2.5 in OD, 1 groove

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: AK25X3/4
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• Manufacturer Part Number: AK25X3/4
• Manufacturer: Regal
• Material: Close-grain cast iron
• Pulley Construction: Solid
• Bore Diameter: 0.75 in
• Bore Type: Finished bore
• Number of Grooves: 1
• Outside Diameter: 2.5000 in
• Pitch Diameter (3L): 1.9600 in
• Face Width: 0.75 in
• Overall Width: 1.23 in
• Length Through Bore: 0.9375 in
• Keyway Size: .1875 x .0938 in
• Weight: 0.7 lb
• Belt Section Compatibility: 4L or A, 3L
• Statically Balanced: Yes
• Finish: Painted
• Country of Origin: Mexico
• UPC: 662289176083
• Manufacturer Part Number (Catalog): AK25X3/4 (Catalog ref: 1026020)
