Browning AK134H AK Series FHP Sheave 13.25 in OD (1042340)

Product Description

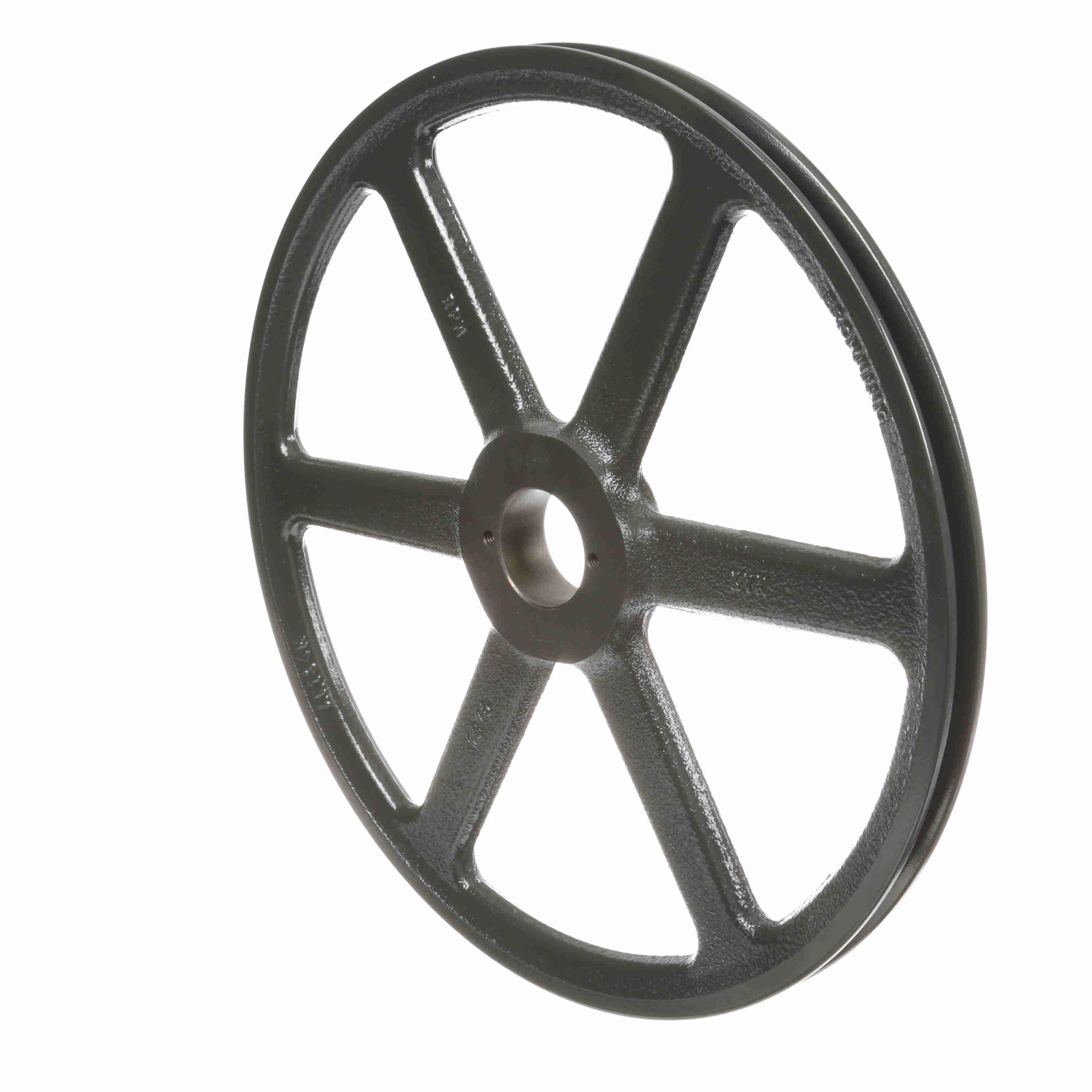

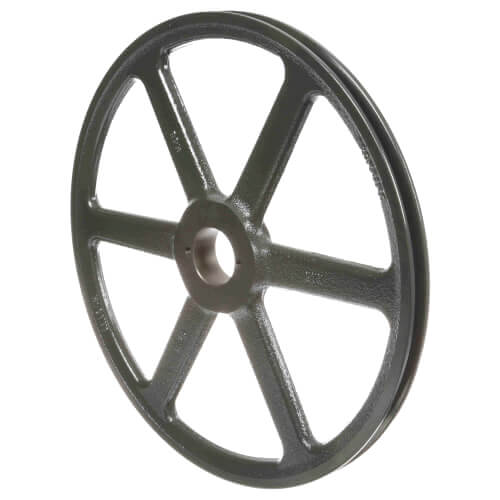

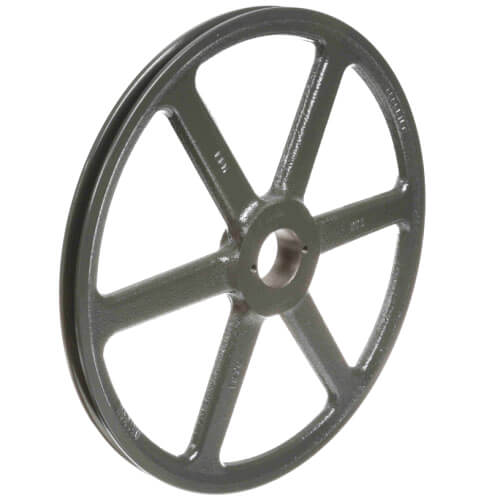

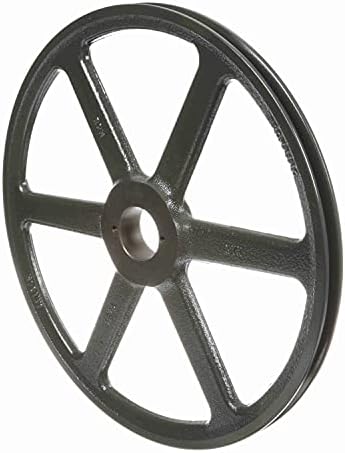

Browning AK134H is an AK Series FHP cast iron bushed sheave for fractional-horsepower V-belt drives. The single-groove sheave uses an H-series split-taper bushing and is statically balanced for reduced vibration. It has a 13.25 in outside diameter with pitch diameters of 13.2 in (A) and 12.66 in (3L), a 0.75 in face width and a 1.50 in overall length, suitable for 4L/A and 3L belt sections.

• Cast iron construction with close-grain machining tolerances and static balancing
• H-series split-taper bushed bore (bushing required) compatible with 4L/A and 3L belts
• Single groove design; outside diameter 13.25 in, pitch diameters 13.2 in (A) and 12.66 in (3L)

Product Highlights

1-groove cast iron FHP sheave with H-series split-taper bushing, 13.25 in OD

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: AK134H
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• MPN: AK134H
• Product Name: AK Series FHP Cast Iron Bushed Sheave
• Material: Cast iron
• Outside Diameter: 13.25 in
• Pitch Diameter (A): 13.2 in
• Pitch Diameter (3L): 12.66 in
• Number of Grooves: 1
• Belt Section: 4L or A, 3L
• Bushing Type: Split taper bushed
• Bushing Series: H
• Bushing Bore Range: 0.500 - 1.500 in
• Face Width: 0.75 in
• Overall Length: 1.50 in
• Weight: 8.645 lb
• Bore Type: Bushed
• Pulley Construction: Plain
• Keyway Size: Multiple sizes (see manufacturer specification)
• Country of Origin: Mexico
• Manufacturer Catalog Number: AK134H
• Manufacturer UPC: 662289162246
• Replacement MPN: 1042340
