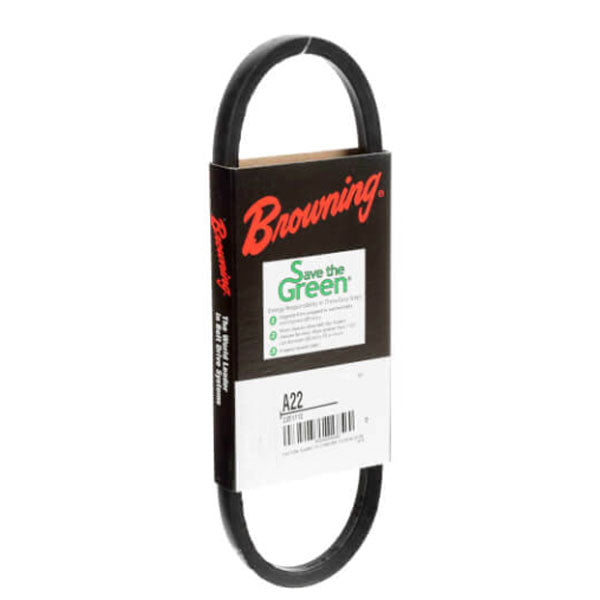

Browning A22 V-belt 24.2 Inches

Product Description

The BROWNING A22 is a standard A-section V-belt used in light- to medium-duty power transmission applications across HVAC, refrigeration, and general mechanical equipment. With an outside circumference of 24.2 inches and a cross-section width of 0.8 inches, this belt transfers rotational power from a motor or engine sheave to a driven component such as a blower wheel, fan, or pump. It is a direct-replacement belt suitable for equipment that calls for an A22 V-belt specification. HVAC technicians and mechanical service contractors routinely stock this size for preventive maintenance and emergency belt replacements in air handling units and rooftop equipment.

The A22 V-belt fits drives found in residential and light commercial HVAC equipment, as well as general-purpose machinery that uses standard A-section sheaves. It is commonly installed in belt-driven blower assemblies, condenser fan drives, and auxiliary power transmission setups where an A-section belt of approximately 24.2 inches outside circumference is specified. Always verify sheave groove profile and center distance before ordering a replacement belt.

Key Features

• Standard A-section V-belt profile for compatibility with A-groove sheaves
• 24.2-inch outside circumference fits a wide range of light commercial and residential drives
• 0.8-inch cross-section width matches standard A-section sheave groove dimensions
• Lightweight at 0.16 pounds for easy handling and stocking
• Direct OEM-style replacement requiring no sheave modification

Compatibility

Designed as a direct replacement for any drive system specifying a standard A22 V-belt with an A-section sheave groove profile. Verify sheave groove type and drive center distance before installation.

Installation Notes

A licensed HVAC technician or qualified mechanical technician should disconnect and lock out all power to the unit before removing or installing a drive belt. Use a belt tension gauge to set proper deflection after installation — do not over-tension, as this places excess load on motor and blower bearings. Never pry a belt over a sheave flange; loosen the motor mount to relieve center distance before seating the belt. Inspect sheave grooves for wear and proper alignment before fitting the new belt.

Technical Specifications

• Belt Section: A
• Outside Circumference: 24.2 inches
• Cross-Section Width: 0.8 inches
• Weight: 0.16 pounds

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: A22
