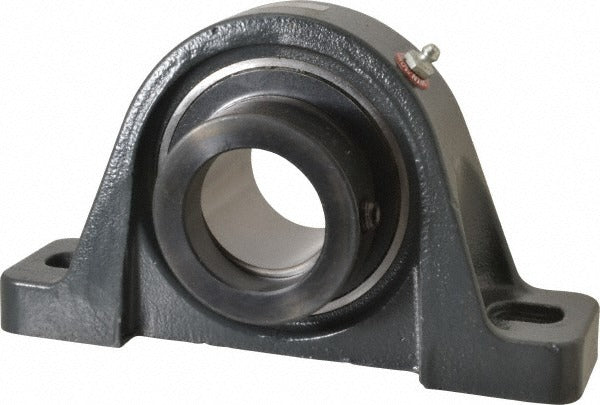

Browning 767964 Pillow Block Bearing 2 Inch Id Cast Iron

Product Description

The BROWNING 767964 is a cast iron pillow block bearing designed for industrial shaft support applications. It accepts a 2-inch inside diameter shaft and features eccentric lock-style mounting for secure shaft retention. The overall length measures 8-13/16 inches and the overall height measures 4-29/32 inches, making it a mid-frame unit suited for moderate-to-heavy duty rotating equipment. The 52100 steel insert delivers a static load capacity of 6,601 pounds and a dynamic load capacity of 9,752 pounds. Millwrights, maintenance mechanics, and industrial equipment technicians install this bearing in conveyor systems, fans, pumps, and other power transmission applications.

This pillow block is appropriate for residential and commercial industrial settings where a two-bolt base-mounted bearing is required. The 6-15/16-inch distance between mounting hole centers and a base-to-center height of 2-7/16 inches match common mounting patterns on fabricated steel frames and machine bases. It is suited for installations where eccentric collar locking is preferred over set-screw or adapter-sleeve retention. Typical applications include material handling conveyors, blower shafts, agricultural equipment, and general-purpose rotating machinery.

Key Features

• 2-inch bore with eccentric lock collar for positive shaft retention
• 52100 steel insert rated at 6,601 pounds static load capacity and 9,752 pounds dynamic load capacity
• Cast iron housing for durability in industrial environments
• 6-15/16-inch mounting hole center distance for standard two-bolt base mounting
• Overall length of 8-13/16 inches and height of 4-29/32 inches for mid-frame fitment
• Bearing length of 2-13/16 inches with a 13/16-inch flange height

Compatibility

Designed as an OEM-style replacement or new-install pillow block bearing for industrial rotating equipment requiring a 2-inch bore, two-bolt base mount, and eccentric lock shaft retention.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out all power sources before removing or installing any bearing. Align the shaft and housing carefully before tightening the eccentric collar and mounting fasteners to ensure even load distribution. Consult applicable ANSI and OSHA lockout/tagout standards when servicing equipment.
