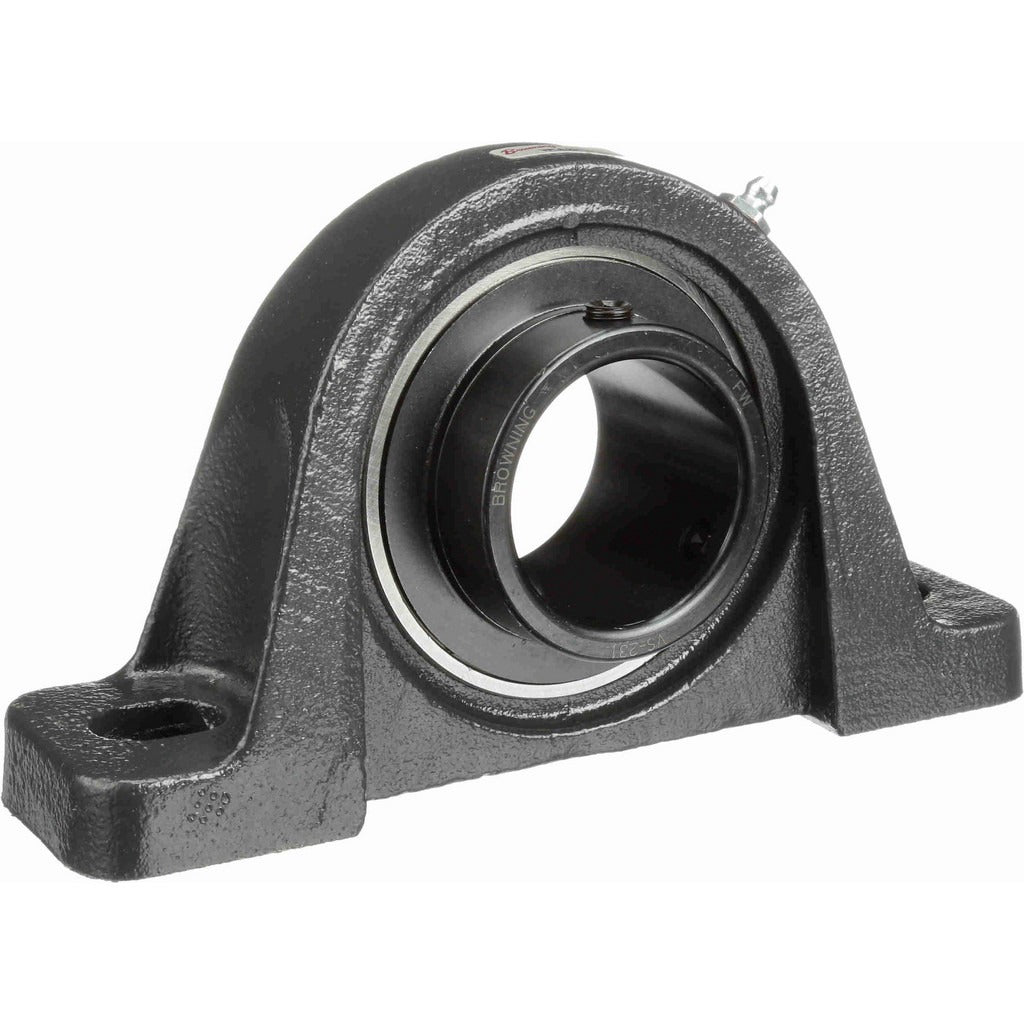

Browning 767922 Pillow Block Bearing 1-15/16 in Cast Iron

Product Description

The BROWNING 767922 is a two-bolt pillow block bearing unit in the VPLS 200 series, designed for general industrial shaft support applications. It carries a 1-15/16 inch straight bore, a static load capacity of 5,216 pounds, and a dynamic load capacity of 7,889 pounds. The housing is cast iron with a ball bearing insert made from 52100 bearing steel, locked to the shaft via set screw. The unit measures 8 inches overall length and 4-1/2 inches overall height. Licensed millwrights, maintenance mechanics, and industrial technicians install this type of unit in conveyor systems, fan assemblies, pumping equipment, and similar rotating machinery.

The 767922 is suited for light-to-medium industrial duty in both fixed and portable equipment. Its straight bore accepts 1-15/16 inch shafting directly without an adapter sleeve. The two-bolt mount pattern with 6-3/16 inch center-to-center spacing fits standard pillow block base layouts commonly found in HVAC fan sections, material handling equipment, and agricultural machinery. Maximum rated speed is 3,000 RPM, making it appropriate for moderate-speed rotating shaft applications in both indoor and sheltered outdoor installations.

Key Features

• 1-15/16 inch straight bore accepts standard shaft sizes without adapter
• 52100 bearing steel ball insert for reliable radial load handling
• Cast iron housing provides rigidity and resistance to shock loading
• Set screw lock type for straightforward shaft retention
• 5,216 pound static and 7,889 pound dynamic load ratings
• Rated to 3,000 RPM for moderate-speed shaft applications

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for 1-15/16 inch diameter shafting in industrial, HVAC, and mechanical systems requiring a two-bolt cast iron pillow block mount in the VPLS 200 series configuration.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize all connected drives and lock out the equipment per LOTO procedures before mounting or replacing the bearing unit. Align the bearing with the mating unit on the shaft before fully tightening set screws to avoid introducing misalignment stress. Consult the equipment manufacturer's documentation for lubrication intervals and grease type appropriate to the operating environment.
