Browning 767920 Pillow Block Bearing 2 Inch Id Cast Iron

Product Description

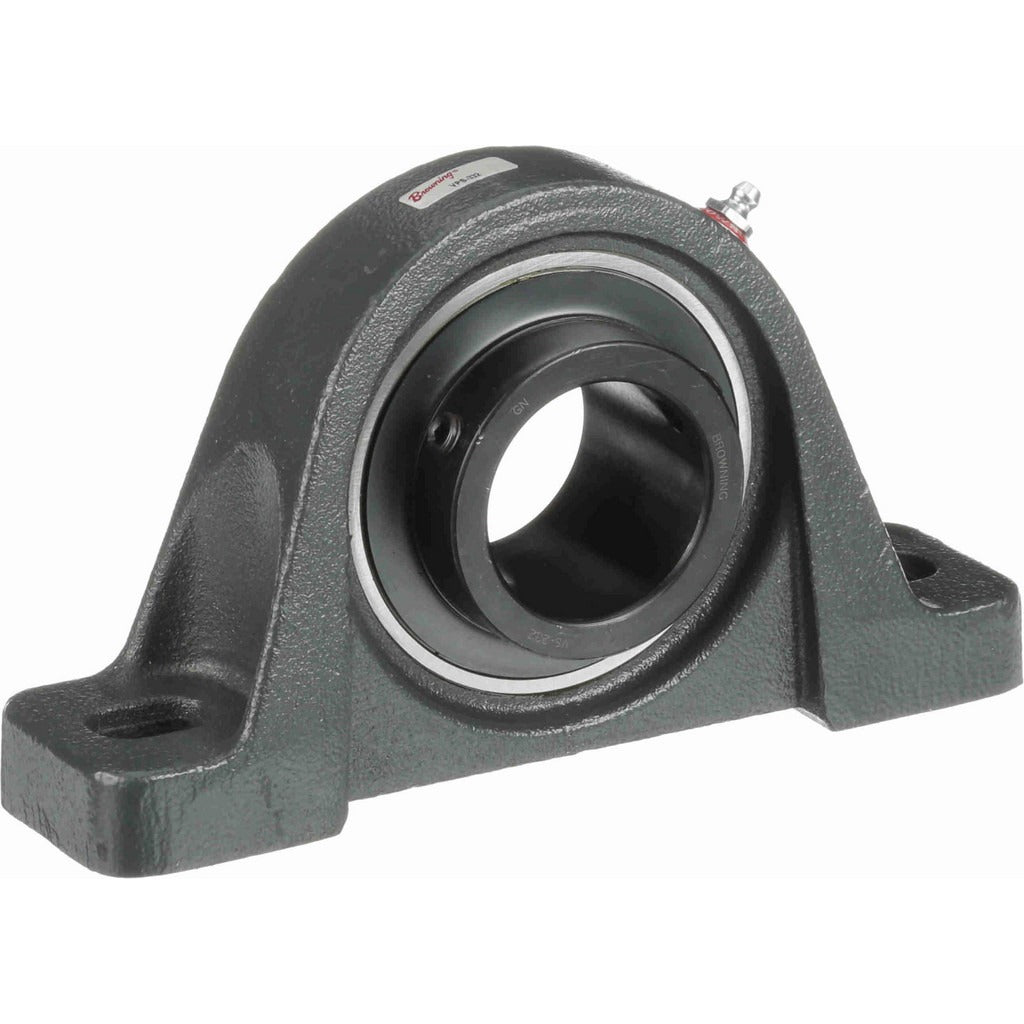

The BROWNING 767920 is a cast iron pillow block bearing in the VPS 300 series, designed to support rotating shaft assemblies in industrial and commercial mechanical systems. The bearing features a 2-inch straight bore with a set screw lock type and houses a 52100 bearing steel ball insert. It carries a static load capacity of 6,601 pounds and a dynamic load capacity of 9,752 pounds, making it well suited for moderate-to-heavy radial load applications. Licensed millwrights, maintenance mechanics, and industrial technicians are the typical installers. The two-bolt mounting configuration simplifies alignment and secure installation on standard equipment frames.

This pillow block bearing is used in a wide range of industrial drive and conveyor applications where a 2-inch shaft requires rigid, grounded support. The VPS 300 series configuration is common in agricultural equipment, material handling systems, fans, pumps, and light industrial machinery. The cast iron housing provides durability in typical indoor and sheltered outdoor mechanical environments. The straight bore and set screw lock accommodate standard solid shafting without the need for adapter sleeves or specialized tooling.

Key Features

• 2-inch straight bore with set screw locking for positive shaft retention
• 6,601 lb static load capacity and 9,752 lb dynamic load capacity
• 52100 bearing steel ball insert for reliable radial load performance
• Cast iron housing for rigidity and durability in industrial environments
• Two-bolt base mount with 6-15/16 inch center-to-center hole spacing
• Maximum rated speed of 2,500 RPM

Compatibility

Designed as an OEM-style replacement or direct installation pillow block bearing for industrial shaft assemblies requiring a 2-inch bore straight-shaft pillow block in the VPS 300 series configuration.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power to the driven equipment before handling any bearing assembly. Ensure the mounting surface is flat and clean before torquing the two base bolts, and verify shaft alignment before tightening set screws to prevent premature bearing wear. Follow applicable ANSI and equipment manufacturer guidelines for bearing installation and lubrication intervals.
