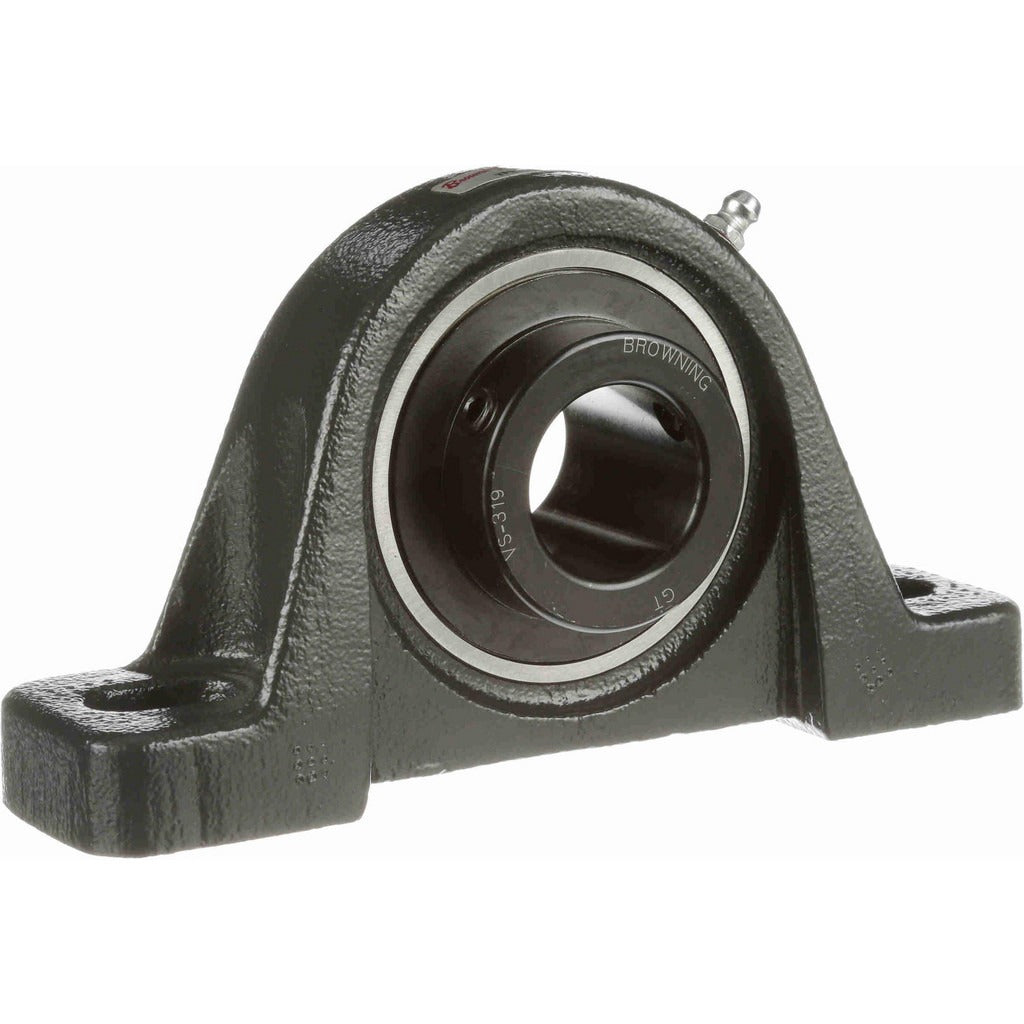

Browning 767919 Pillow Block Bearing 1-3/16 in Vps 300

Product Description

The BROWNING 767919 is a VPS 300 Series pillow block bearing designed for industrial rotating equipment applications. It features a 1-3/16 inch straight bore with a set screw lock type and is housed in a two-bolt cast iron block. The bearing insert is manufactured from 52100 bearing steel and carries a static load capacity of 3,493 pounds and a dynamic load capacity of 5,782 pounds. With a maximum operating speed of 4,000 RPM, this unit suits moderate-to-heavy duty shaft support in mechanical drive systems. Licensed millwrights, maintenance mechanics, and industrial equipment technicians are the primary installers.

This pillow block bearing is intended for use in industrial and commercial mechanical drive applications where a standard two-bolt mounted bearing is required. The straight bore and set screw locking mechanism make it compatible with solid shaft installations across conveyor systems, fans, pumps, and similar rotating machinery. The 5-inch bolt hole center-to-center spacing and 1-7/8 inch base-to-center height suit standard mounting plate layouts commonly found in light to medium industrial equipment.

Key Features

• 1-3/16 inch straight bore with set screw lock for positive shaft retention
• 52100 bearing steel insert for durability under radial and axial load
• Cast iron housing provides rigidity and resistance to deformation under load
• 3,493 pound static load capacity and 5,782 pound dynamic load capacity
• Maximum speed rating of 4,000 RPM suits a broad range of drive applications
• Two-bolt mounting with 5-inch center-to-center spacing for straightforward installation

Compatibility

Designed as an OEM-style replacement or direct installation pillow block bearing for industrial shaft support applications requiring a two-bolt, 1-3/16 inch bore mounted bearing unit in the VPS 300 Series.

Installation Notes

Installation is typically performed by licensed millwrights or qualified maintenance mechanics. Shut down and lock out all power to the drive system before removing or installing any bearing components, following LOTO procedures per applicable safety standards. Ensure shaft and mounting surfaces are clean and within tolerance before seating the insert and tightening set screws. Do not use impact tools to drive the bearing onto the shaft, as this can damage the insert raceway.
