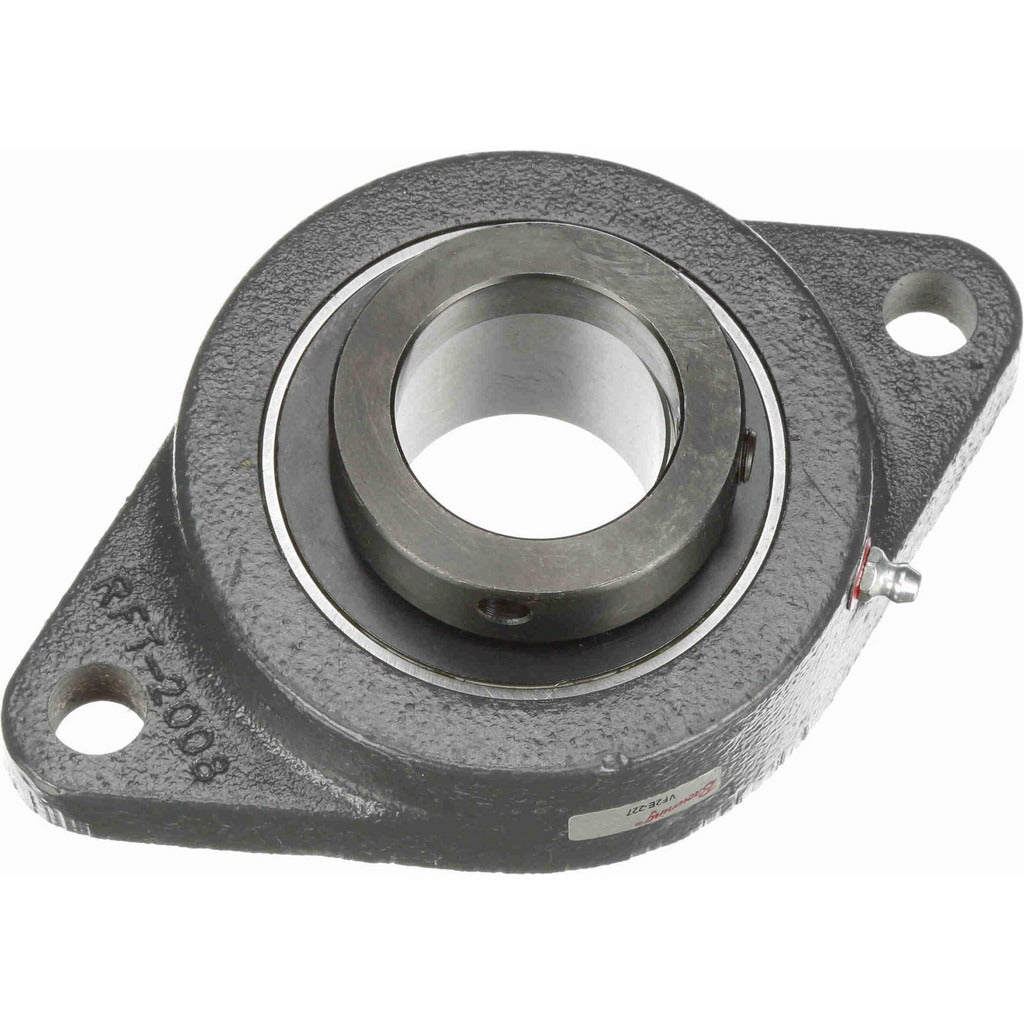

Browning 767902 2-bolt Flange Bearing 1-11/16 in Id

Product Description

The BROWNING 767902 is a 2-bolt flange bearing unit in the VF2E 20 series, designed for industrial shaft support applications requiring reliable radial load capacity in a compact cast iron housing. The bearing features a 1-11/16 inch bore and accepts a 52100 steel ball bearing insert secured by an eccentric lock collar. Static load capacity is 5,139 pounds and dynamic load capacity is 7,901 pounds, making this unit suitable for moderate-to-heavy duty conveyor, fan, and general power transmission installations. Lubrication is required during installation and at regular service intervals. This unit is installed by millwrights, maintenance mechanics, and industrial technicians.

The BROWNING 767902 fits applications where a 2-bolt flange mount is specified, including conveyor head and tail shafts, blower assemblies, agricultural equipment, and general industrial machinery. The cast iron housing provides rigidity in fixed-mount configurations. The unit measures 7-1/16 inches overall length and 4-3/8 inches overall height, with mounting hole centers spaced 5-27/32 inches apart, allowing direct bolt-in replacement in standard VF2E 20 series flange positions. Maximum rated speed is 3,000 RPM.

Key Features

• 1-11/16 inch bore ID with eccentric lock collar for secure shaft engagement
• 52100 steel ball bearing insert for strength and wear resistance
• 5,139 pound static load capacity and 7,901 pound dynamic load capacity
• Cast iron housing for rigid, fixed-position mounting
• 2-bolt flange mount with 9/16 inch bolt size and 5-27/32 inch center-to-center spacing
• Maximum operating speed of 3,000 RPM

Compatibility

Designed as a direct-fit unit in standard VF2E 20 series 2-bolt flange bearing positions requiring a 1-11/16 inch shaft bore.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power to the driven equipment before mounting or removing any bearing unit. Align the shaft carefully before tightening the 9/16 inch mounting bolts to avoid housing stress. Apply the specified grease to the bearing insert fitting before placing the unit in service, and follow the equipment manufacturer's recommended re-lubrication interval.
