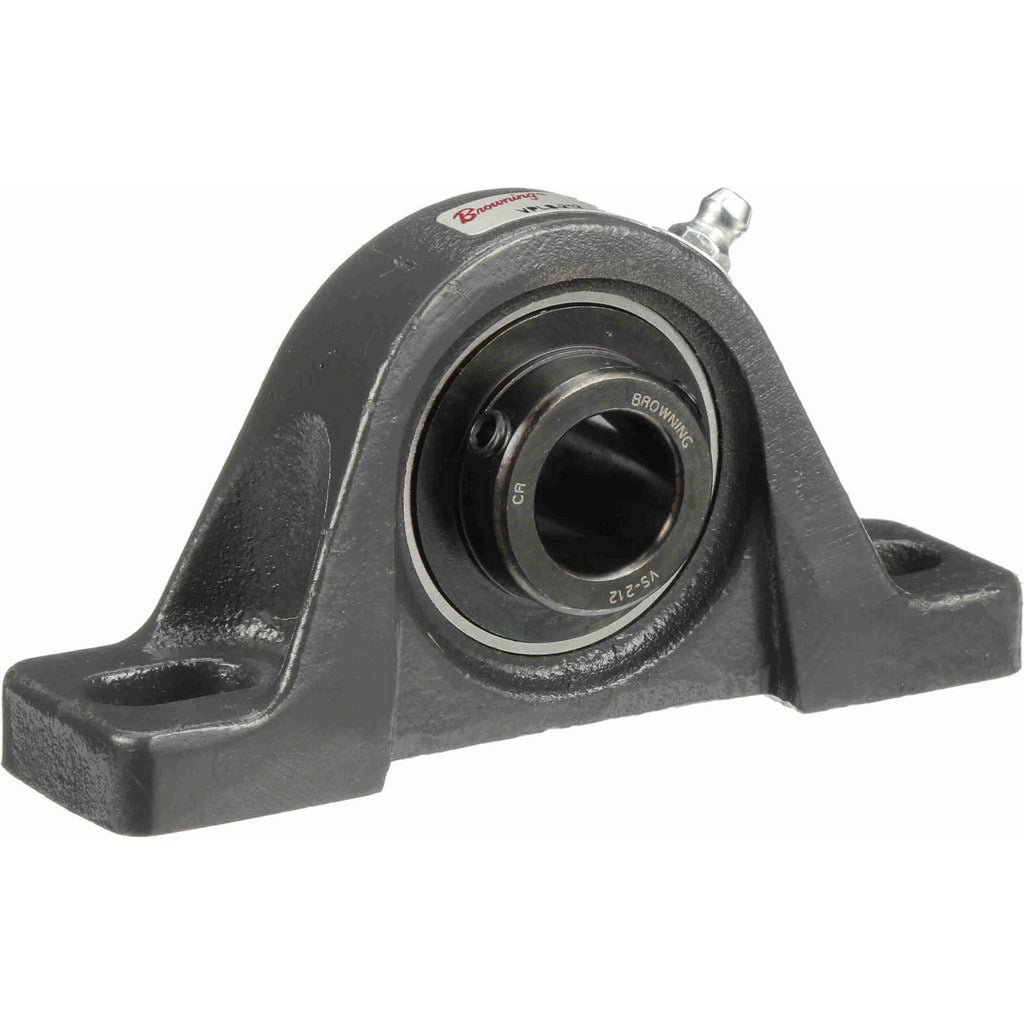

Browning 767890 Pillow Block Bearing 0.75 in Id

Product Description

The BROWNING 767890 is a two-bolt pillow block bearing in the VPLS 200 Series, designed for light-to-medium duty shaft support in industrial and mechanical drive applications. It features a straight-bore ball bearing insert with a 0.75 inch (3/4 inch) inside diameter and a set screw locking mechanism to secure the shaft. The housing is cast iron, and the bearing insert is manufactured from 52100 bearing steel for hardness and fatigue resistance. Static load capacity is 1,444 pounds and dynamic load capacity is 2,611 pounds. Maximum rated speed is 6,500 RPM. Licensed millwrights, maintenance mechanics, and industrial technicians are the typical installers for this type of component.

The BROWNING 767890 suits conveyor systems, fan shafts, augers, and general power transmission equipment where a standard two-bolt pillow block is the specified mount. The VPLS 200 Series is suited for both light industrial and agricultural machinery applications where a 3/4 inch shaft diameter is required. The overall assembly length of 5 inches and overall height of 2-15/32 inches make it compatible with standard mounting footprints in that shaft size class. The 3-25/32 inch center-to-center bolt hole spacing aligns with common mounting plate layouts in this bearing series.

Key Features

• 3/4 inch straight bore with set screw lock for positive shaft retention
• Cast iron housing provides rigidity and corrosion resistance in typical industrial environments
• 52100 bearing steel insert rated to 6,500 RPM maximum
• 1,444 lb static load capacity and 2,611 lb dynamic load capacity
• Two-bolt mounting with 3-25/32 inch center-to-center hole spacing for easy alignment
• VPLS 200 Series standardized dimensions simplify cross-referencing and replacement

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block bearing for applications requiring a two-bolt, 3/4 inch bore pillow block in the VPLS 200 Series footprint.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power to rotating equipment before removing or installing any bearing assembly. Ensure the mounting surface is flat and clean before torquing the mounting bolts, and verify shaft alignment before fully tightening the set screws. Do not hammer the bearing housing directly onto the shaft.
