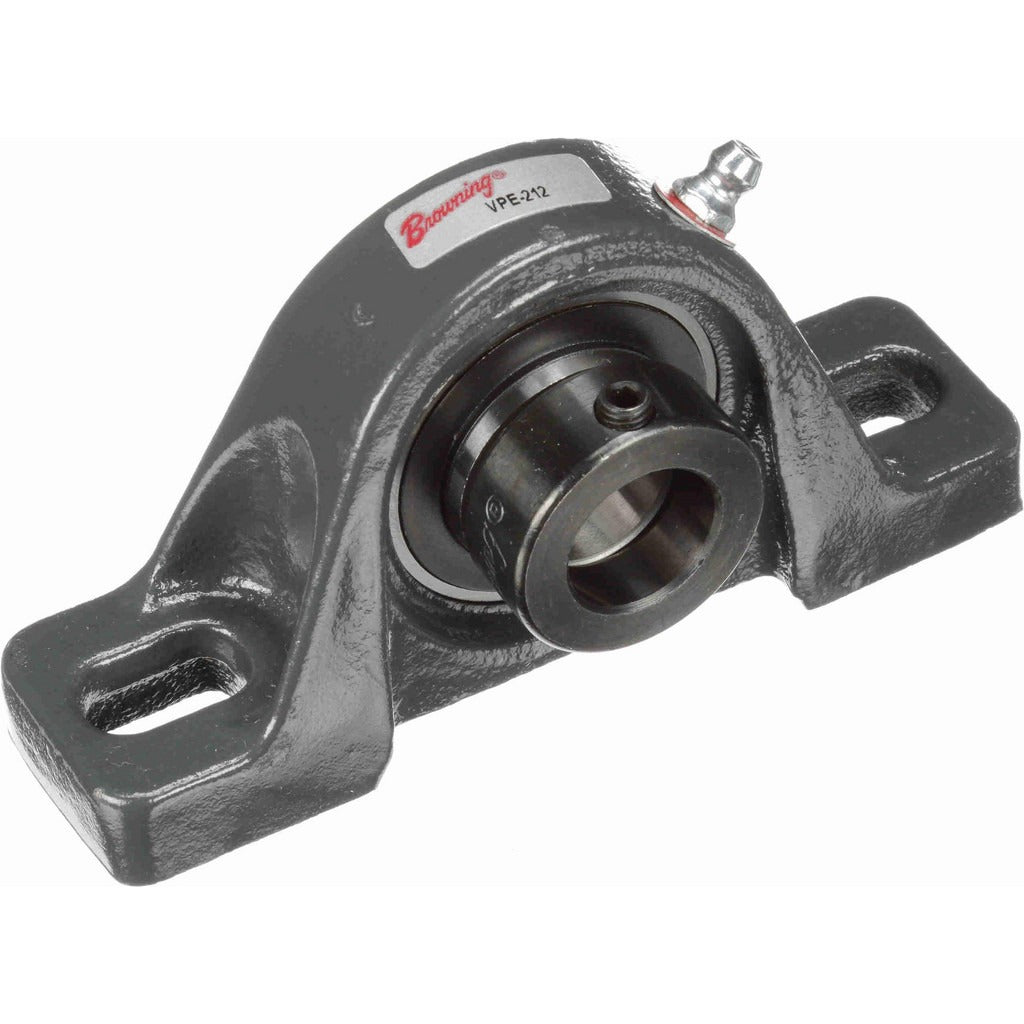

Browning 767885 Pillow Block Bearing 0.75 in Id Cast Iron

Product Description

The BROWNING 767885 is a two-bolt pillow block bearing in the VPE 200 series, designed to support rotating shafts in light-to-medium-duty industrial and mechanical applications. It features a 0.75-inch straight bore, a cast iron housing, and a 52100 bearing steel ball insert with an eccentric locking collar. The housing spans 5 inches overall length and stands 2-17/32 inches overall height, making it a compact, bolt-in unit suited for conveyor systems, fans, pumps, and similar rotating equipment. Static load capacity is 1,444 pounds and dynamic load capacity is 2,611 pounds, with a maximum rated speed of 6,500 RPM. Licensed HVAC, mechanical, and millwright tradespeople are the typical installers.

This pillow block is used in both light industrial and commercial mechanical systems where a two-bolt, floor-mounted or base-mounted bearing support is required. The VPE 200 series is commonly installed on conveyor lines, material-handling equipment, agricultural machinery, and building mechanical systems such as fan arrays and blower assemblies. The straight bore accommodates standard 3/4-inch shafting, and the eccentric locking collar provides a secure, tool-accessible shaft lock without requiring a keyed shaft. Mounting hole center-to-center distance is 3-25/32 inches, simplifying drop-in replacement on existing bolt patterns.

Key Features

• 0.75-inch straight bore fits standard 3/4-inch shafting
• 52100 bearing steel ball insert rated to 6,500 RPM maximum
• Eccentric collar lock secures shaft without a keyway
• Cast iron housing for durability in industrial environments
• 1,444-pound static and 2,611-pound dynamic load capacity
• Two-bolt mounting with 3-25/32-inch hole center spacing

Compatibility

Designed as an OEM-style replacement two-bolt pillow block bearing for applications requiring a 0.75-inch straight bore, 3-25/32-inch bolt center spacing, and a cast iron housing in the VPE 200 series configuration.

Installation Notes

Installation is performed by qualified millwrights or mechanical technicians. Shut down and lock out all rotating equipment per OSHA lockout/tagout procedures before removing or installing any bearing unit. Verify shaft diameter, bolt pattern, and shaft alignment before torquing mounting hardware. Do not force the bore onto a shaft that does not meet dimensional tolerances, as this can preload and damage the insert.
