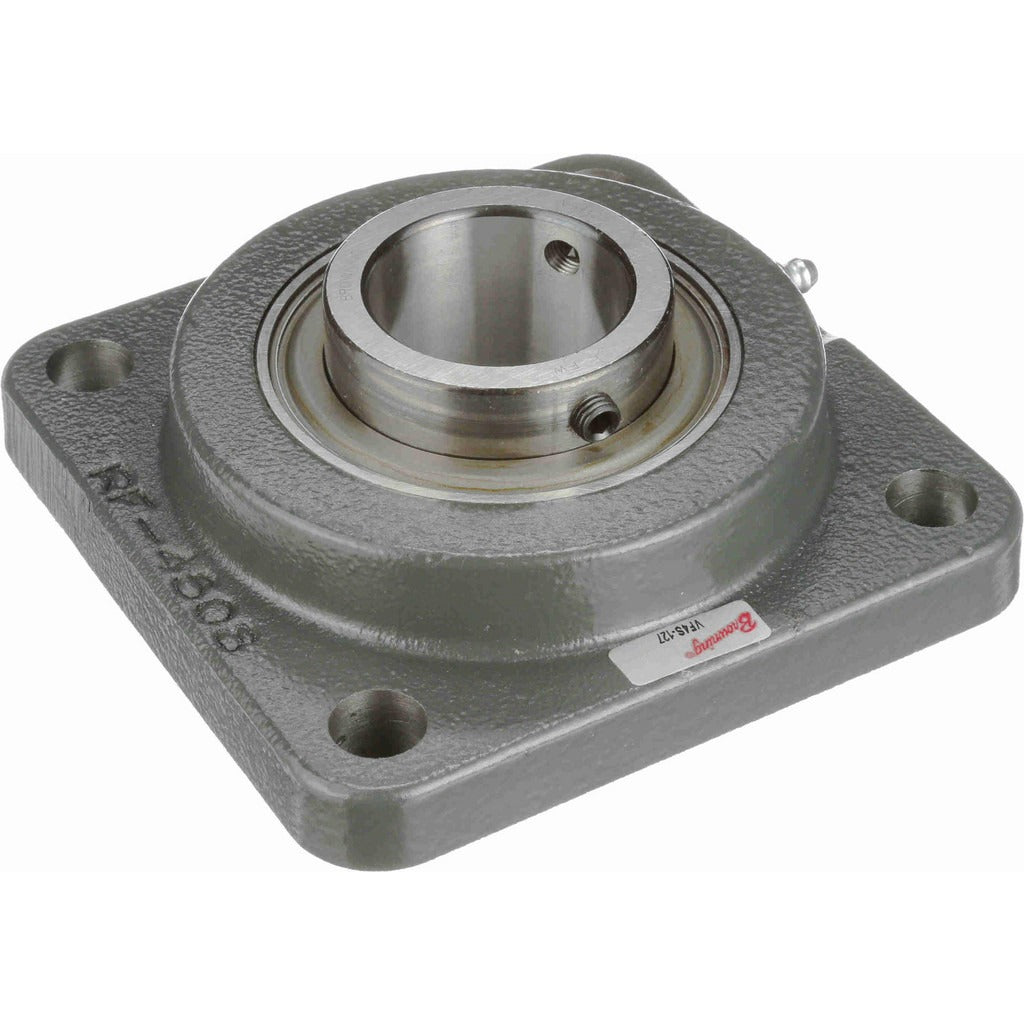

Browning 767868 4-bolt Flange Bearing 1-11/16 in Id

Product Description

The BROWNING 767868 is a VF4S-127 series 4-bolt flange bearing unit designed for industrial shaft support applications. The unit features a 1-11/16 inch bore and a cast iron housing with an inserted 52100 steel ball bearing element. It carries a static load capacity of 5,139 pounds and a dynamic load capacity of 7,901 pounds, making it suitable for moderate-to-heavy duty rotating equipment. The set screw lock secures the bearing insert to the shaft. Overall dimensions are 5-3/8 inches in length and 5-3/8 inches in height. The unit weighs 5.24 pounds. Installation is typically performed by millwrights, maintenance mechanics, or industrial technicians working on conveyor systems, fans, pumps, and similar belt-driven or direct-drive equipment.

This 4-bolt flange unit is used in industrial and commercial settings where a rigid, square-mount bearing housing is required. Common applications include conveyor drives, agricultural equipment, material handling systems, HVAC fan shafts, and light manufacturing machinery. The 4-bolt mounting pattern and cast iron housing provide a stable, rigid mount on flat surfaces. The bearing requires periodic lubrication through the grease fitting. Maximum operating speed is 2,000 RPM. This unit is part of the VF4S 100 series.

Key Features

• 1-11/16 inch bore accommodates standard industrial shaft sizes
• Cast iron housing for durability in industrial environments
• 52100 steel ball bearing insert for reliable load handling
• 5,139 lb static and 7,901 lb dynamic load capacities
• Set screw lock secures insert to shaft without additional adapters
• 4-bolt flange pattern with 4-1/8 inch center-to-center bolt spacing
• Rated to 2,000 RPM maximum operating speed

Compatibility

Designed as an OEM-style replacement or direct-fit flange bearing unit for 1-11/16 inch diameter shafts requiring a 4-bolt flange mount in the VF4S 100 series configuration.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance mechanic. De-energize and lock out all power to the equipment before removing or installing the bearing unit per LOTO procedures. Ensure the mounting surface is clean, flat, and free of debris before torquing the four mounting bolts. Apply appropriate grease through the lubrication fitting before commissioning and at regular service intervals per the equipment maintenance schedule.
