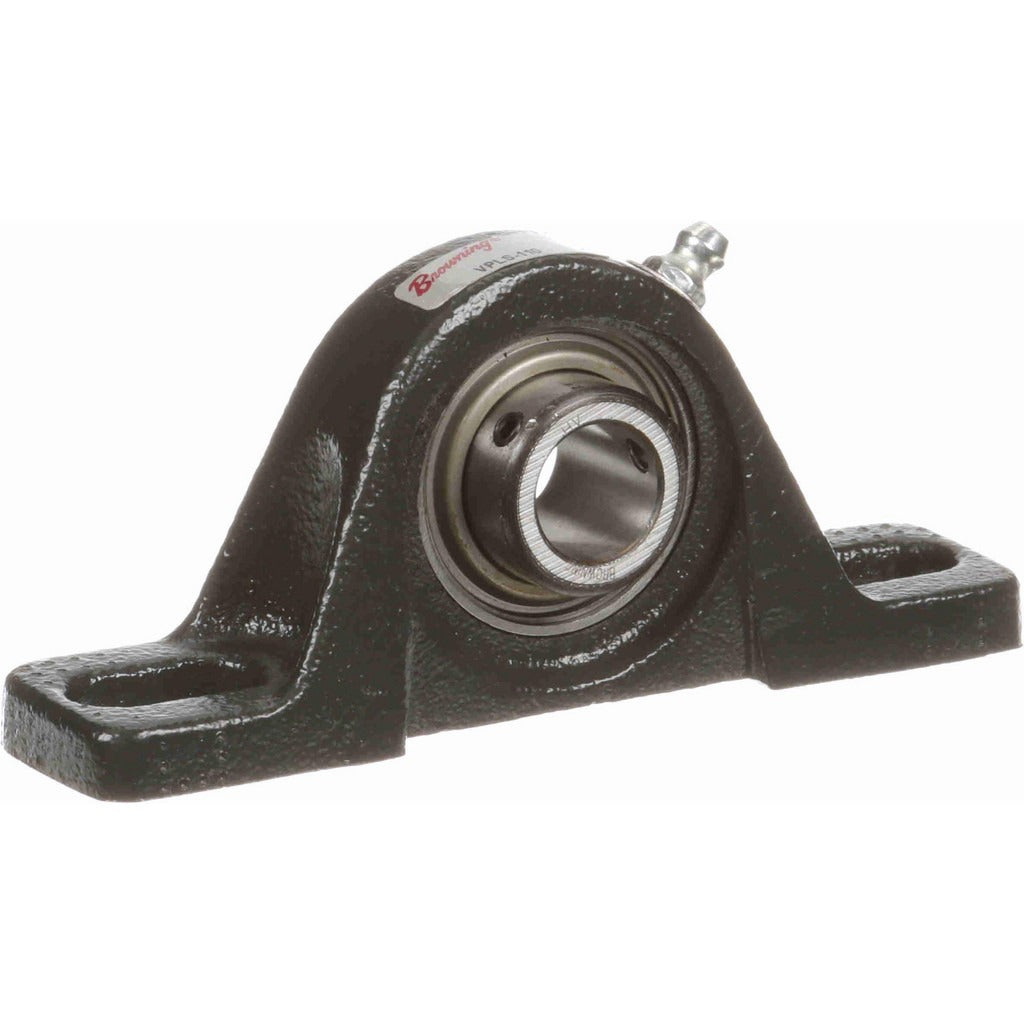

Browning 767836 Pillow Block Bearing 0.625 in Id Cast Iron

Product Description

The BROWNING 767836 is a cast iron pillow block bearing in the VPLS 100 series, designed to support rotating shafts in industrial and mechanical drive applications. It features a 0.625 inch (5/8 inch) straight bore with a set screw lock type, a static load capacity of 1,444 pounds, and a dynamic load capacity of 2,611 pounds. The bearing insert is made from 52100 bearing steel for durability under load. This unit is a two-bolt mount configuration and is installed by millwrights, maintenance mechanics, and industrial technicians in a wide range of shaft support and power transmission applications.

The 767836 pillow block is suited for industrial equipment where a compact, two-bolt mounted bearing housing is required. Its cast iron housing and 52100 steel insert make it appropriate for moderate-to-heavy duty environments. The maximum rated speed of 7,500 RPM supports use in conveyors, fans, pumps, agricultural equipment, and general-purpose power transmission systems. The VPLS 100 series design accommodates standard shaft sizes common in these installations.

Key Features

• 0.625 inch straight bore with set screw locking for secure shaft retention
• 1,444 pound static load capacity and 2,611 pound dynamic load capacity
• 52100 bearing steel insert for resistance to wear and fatigue under load
• Cast iron housing provides rigidity and dimensional stability
• Two-bolt mount with 3.625 inch center-to-center hole spacing for straightforward installation
• Maximum rated speed of 7,500 RPM suitable for a broad range of drive applications

Compatibility

Designed as an OEM-style replacement or direct-install pillow block bearing for industrial shaft support applications requiring a 0.625 inch bore two-bolt housing in the VPLS 100 series.

Installation Notes

Installation should be performed by a qualified millwright or maintenance technician. De-energize and lock out all connected equipment before mounting or removing any bearing housing. Ensure the mounting surface is flat and clean before torquing fasteners, and verify shaft alignment after securing the housing to prevent premature bearing wear. Follow applicable machinery safety standards and equipment manufacturer guidelines during installation.
