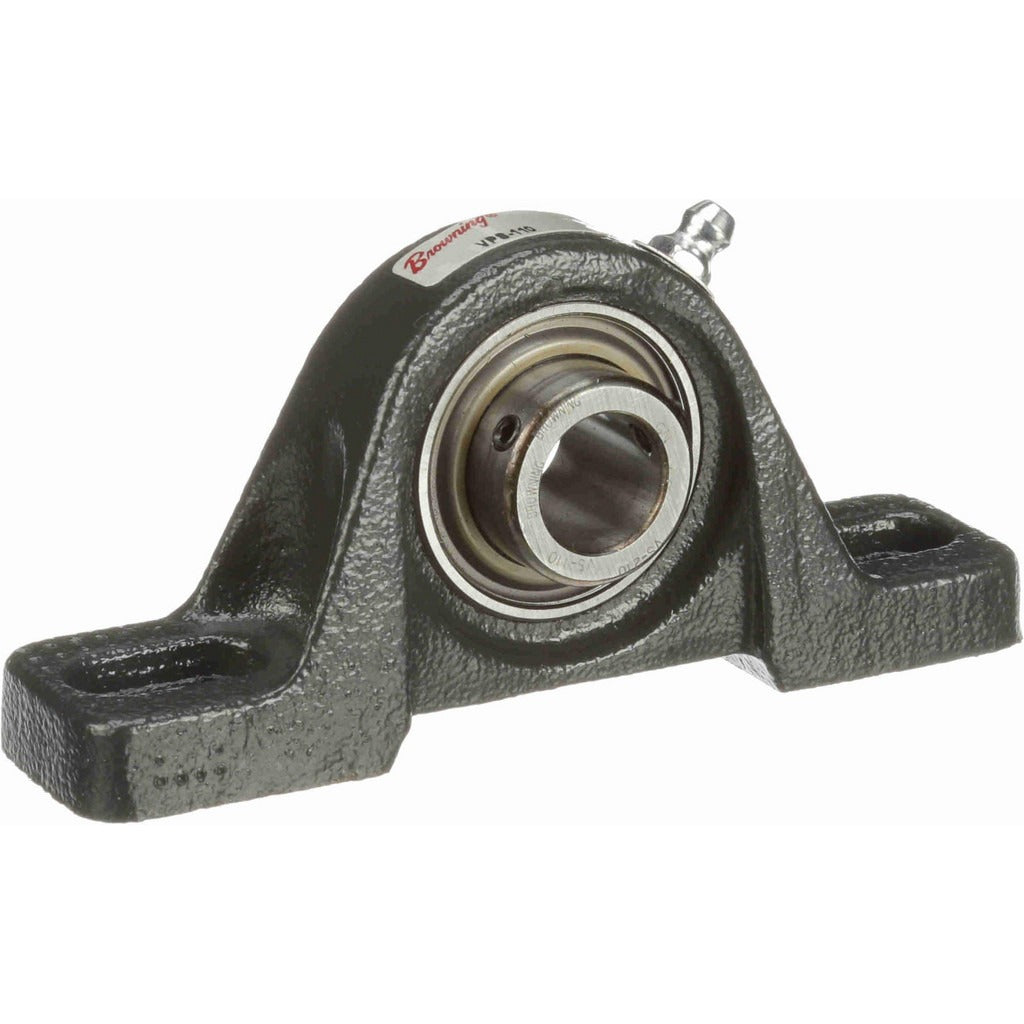

Browning 767835 Pillow Block Bearing 5/8 in Cast Iron

Product Description

The BROWNING 767835 is a cast iron pillow block bearing in the VPS 100 Series, designed to support rotating shafts in fixed-mount industrial and mechanical equipment. The bearing insert is a ball-type with a straight bore measuring 5/8 inch inside diameter and is secured with a set screw lock. Static load capacity is 1,444 pounds and dynamic load capacity is 2,611 pounds, making this unit suitable for moderate-load, continuous-duty applications. Maximum operating speed is 7,500 RPM. The insert is manufactured from 52100 bearing steel. This unit is installed by mechanical contractors, millwrights, and equipment service technicians.

The 767835 pillow block is suited for residential and light commercial mechanical systems where a two-bolt, base-mount bearing housing is required. Typical applications include fan shaft support in HVAC air handling equipment, blower assemblies, conveyor systems, and similar rotating machinery. The overall assembly measures 4-7/8 inches in overall length and 2-7/32 inches in overall height, with a base-to-center height of 1-3/16 inches and mounting hole center-to-center distance of 3-7/16 inches. No specific compatible model numbers are provided by the manufacturer for this SKU.

Key Features

• Ball-type bearing insert with straight bore and set screw lock for secure shaft retention
• 5/8 inch inside diameter accommodates standard shaft sizes in fan and blower applications
• 1,444 lb static load capacity and 2,611 lb dynamic load capacity for moderate-duty use
• Maximum rated speed of 7,500 RPM suitable for continuous-duty fan and blower service
• Cast iron housing provides rigidity and resistance to wear in fixed-mount installations
• 52100 bearing steel insert for durability under radial load conditions

Compatibility

Designed as an OEM-style replacement or direct-install pillow block bearing for two-bolt fixed-mount applications requiring a 5/8 inch bore in the VPS 100 Series configuration.

Installation Notes

Installation is typically performed by a qualified millwright or mechanical technician. De-energize and lock out all power to the equipment before removing or installing the bearing assembly, following LOTO procedures per applicable safety codes. Align the shaft carefully before tightening the set screw to prevent premature bearing wear. Ensure mounting surfaces are flat and fasteners are torqued to the equipment manufacturer's specifications.
