Browning 767780 Pillow Block Bearing 1 Inch Id Vpe 100

Product Description

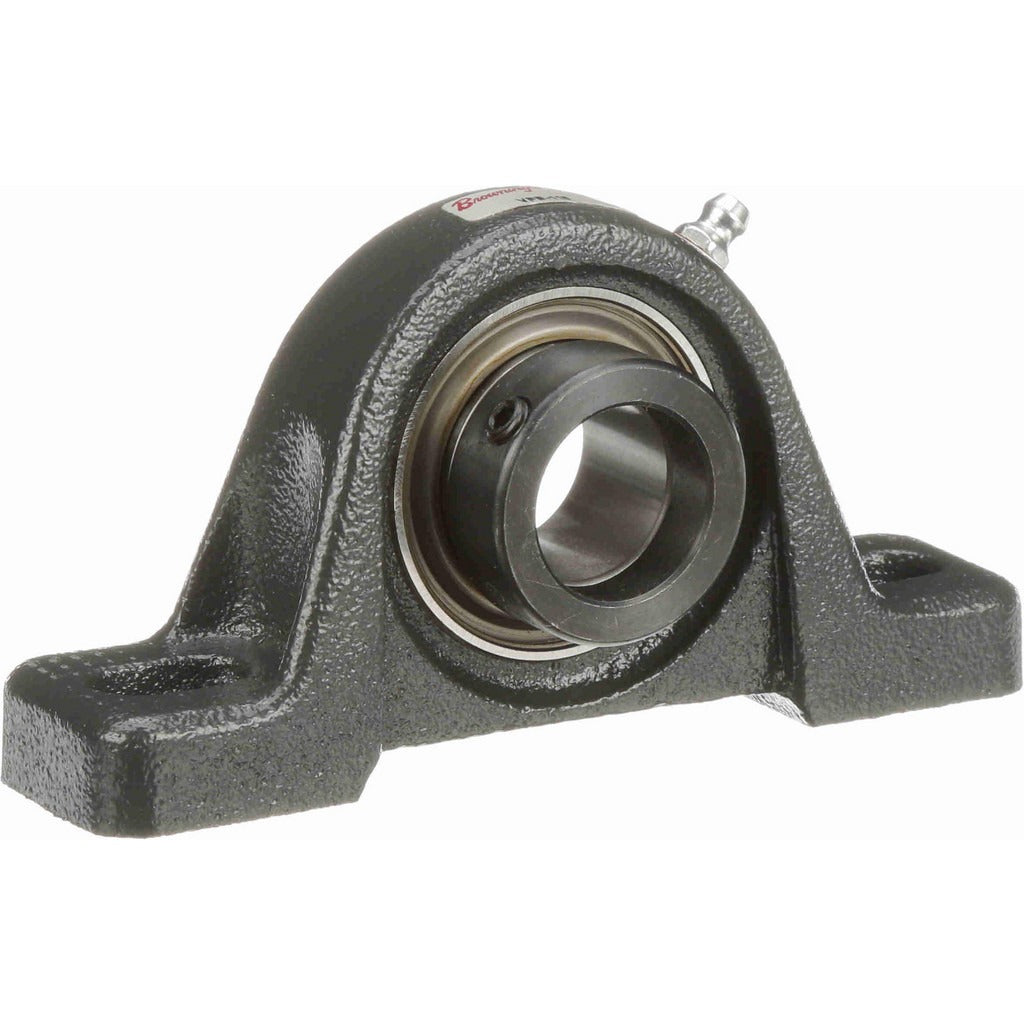

The BROWNING 767780 is a two-bolt pillow block bearing in the VPE 100 series, designed for industrial shaft support applications in conveyor, pump, fan, and general power-transmission equipment. The bearing features a 1-inch straight bore with eccentric lock collar, a cast iron housing, and a 52100 bearing steel insert. Static load capacity is 1,651 pounds and dynamic load capacity is 2,801 pounds, making it appropriate for moderate-duty continuous-rotation applications. Maximum rated speed is 3,500 RPM. Installation is handled by millwrights, mechanical contractors, or maintenance technicians performing equipment assembly or bearing replacement work.

This pillow block is suited for residential and light commercial equipment as well as industrial machinery requiring a compact, two-bolt mounted bearing unit. The VPE 100 series is commonly used in blower assemblies, auger drives, conveyor shafts, and similar rotating equipment where a standard pillow block mount is required. The straight bore and eccentric locking collar allow straightforward shaft installation without specialized tooling beyond standard wrenches and a shaft alignment gauge.

Key Features

• 1-inch straight bore with eccentric lock collar for positive shaft retention
• Cast iron housing provides durability in industrial environments
• 52100 bearing steel insert for reliable load-bearing performance
• Static load capacity of 1,651 pounds; dynamic load capacity of 2,801 pounds
• Rated to 3,500 RPM maximum shaft speed
• Two-bolt mounting pattern with 4.125-inch center-to-center spacing

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for rotating equipment requiring a two-bolt mounted unit with a 1-inch straight bore in the VPE 100 series form factor.

Installation Notes

Shaft and bearing installation should be performed by a qualified millwright or mechanical technician. Ensure the drive is fully de-energized and locked out before beginning work. Align the bearing housing to the shaft before tightening mounting bolts, and torque fasteners per the equipment manufacturer's specifications. The eccentric locking collar should be engaged in the direction of shaft rotation and secured before startup.
