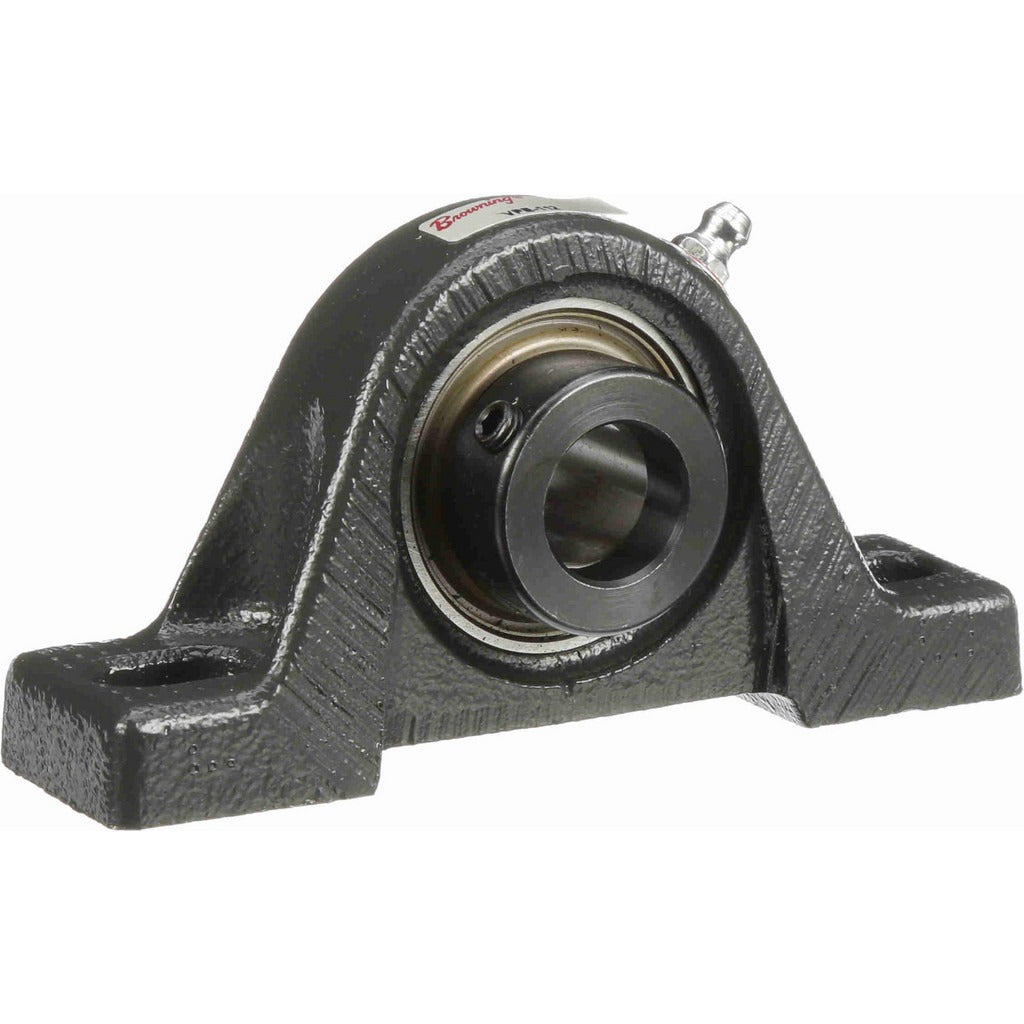

Browning 767764 Pillow Block Bearing 3/4 Inch Id Vpe 100

Product Description

The BROWNING 767764 is a two-bolt pillow block bearing in the VPE 100 Series, designed to support rotating shafts in light-to-medium industrial and mechanical applications. It features a 3/4 inch straight bore with an eccentric lock collar, a cast iron housing, and a 52100 bearing steel ball insert. Static load capacity is 1,444 pounds and dynamic load capacity is 2,611 pounds, making it suitable for moderate radial load applications. The unit spans 5 inches overall length and stands 2-17/32 inches overall height. Licensed HVAC, mechanical, and millwright trades install these bearings on fan shafts, conveyor drives, blower assemblies, and similar rotating equipment.

The BROWNING 767764 fits standard two-bolt pillow block mounting configurations. The 3-25/32 inch center-to-center bolt spacing and 1-5/16 inch base-to-center height are common dimensions used on commercial air handling units, exhaust fans, belt-driven blower assemblies, and light conveyor systems. The eccentric locking collar secures the bearing insert to the shaft without keyways, simplifying field installation and removal. The cast iron housing handles typical industrial environments where moderate vibration and shaft loading are present.

Key Features

• 3/4 inch straight bore with eccentric lock collar — no keyway required
• 52100 bearing steel ball insert for reliable radial load performance
• Cast iron housing for durability in industrial and HVAC applications
• 1,444 pound static load capacity and 2,611 pound dynamic load capacity
• Rated to 4,000 RPM maximum shaft speed
• Two-bolt mounting with 3-25/32 inch center-to-center bolt spacing

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for two-bolt applications requiring a 3/4 inch straight bore in the VPE 100 Series configuration.

Installation Notes

Installation and replacement should be performed by a qualified millwright, HVAC technician, or mechanical professional. De-energize and lock out the drive system before removing or installing any bearing. Confirm shaft diameter, bolt hole spacing, and base-to-center height match the mounting surface before tightening fasteners. Do not overtighten the eccentric locking collar; follow the bearing manufacturer torque guidelines and apply the collar in the direction of shaft rotation.
