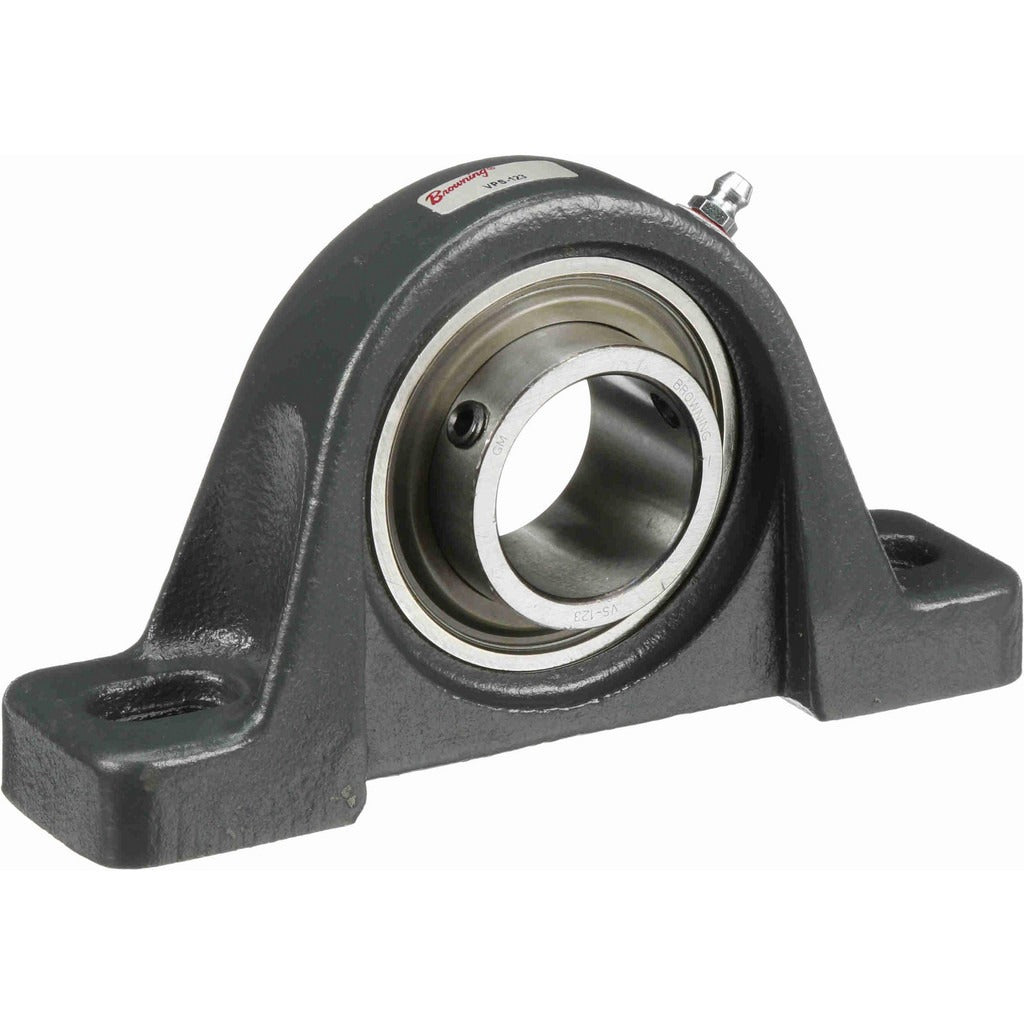

Browning 767755 Pillow Block Bearing 1-7/16 in Id Cast Iron

Product Description

The BROWNING 767755 is a VPS 100 Series pillow block bearing designed for shaft support in industrial rotating equipment. It accepts a 1-7/16 inch straight bore and houses a 52100 bearing steel ball insert locked in place with a set screw. The cast iron housing measures 6-3/4 inches overall length and 3-11/16 inches overall height, with a base-to-center height of 1-7/8 inches. Static load capacity is 3,493 pounds and dynamic load capacity is 5,782 pounds. The two-bolt mounting configuration centers the bolt holes at 5 inches apart. Maximum rated speed is 2,500 RPM. Licensed mechanics and millwrights install this bearing in conveyor systems, fan assemblies, pump drives, and similar power transmission applications.

The BROWNING 767755 suits light-to-medium duty power transmission installations in commercial and industrial settings. It is appropriate for mounting on structural steel frames, equipment bases, and machine beds where a two-bolt pillow block configuration is required. The 1-7/16 inch bore accommodates standard shaft sizes common in HVAC fan drives, material handling conveyors, and general industrial machinery. The VPS 100 Series provides a direct-mount solution where precise shaft alignment and reliable radial load support are required.

Key Features

• 1-7/16 inch straight bore with set screw locking for positive shaft retention
• 52100 bearing steel ball insert for durability under radial load
• Cast iron housing resists deformation under sustained static and dynamic loads
• 3,493 pound static load capacity and 5,782 pound dynamic load capacity
• Two-bolt mounting with 5 inch center-to-center hole spacing
• 2,500 RPM maximum rated speed suitable for belt-driven fan and pump applications

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for industrial power transmission equipment requiring a two-bolt, 1-7/16 inch bore straight-bore pillow block in the VPS 100 Series configuration.

Installation Notes

Installation is performed by licensed mechanics or millwrights. De-energize and lock out all connected drive equipment before removing or installing any bearing. Secure both mounting bolts evenly to the manufacturer torque specification for the fastener grade used. Tighten the set screw against a flat on the shaft where possible to prevent shaft damage; re-check set screw torque after initial run-in.
