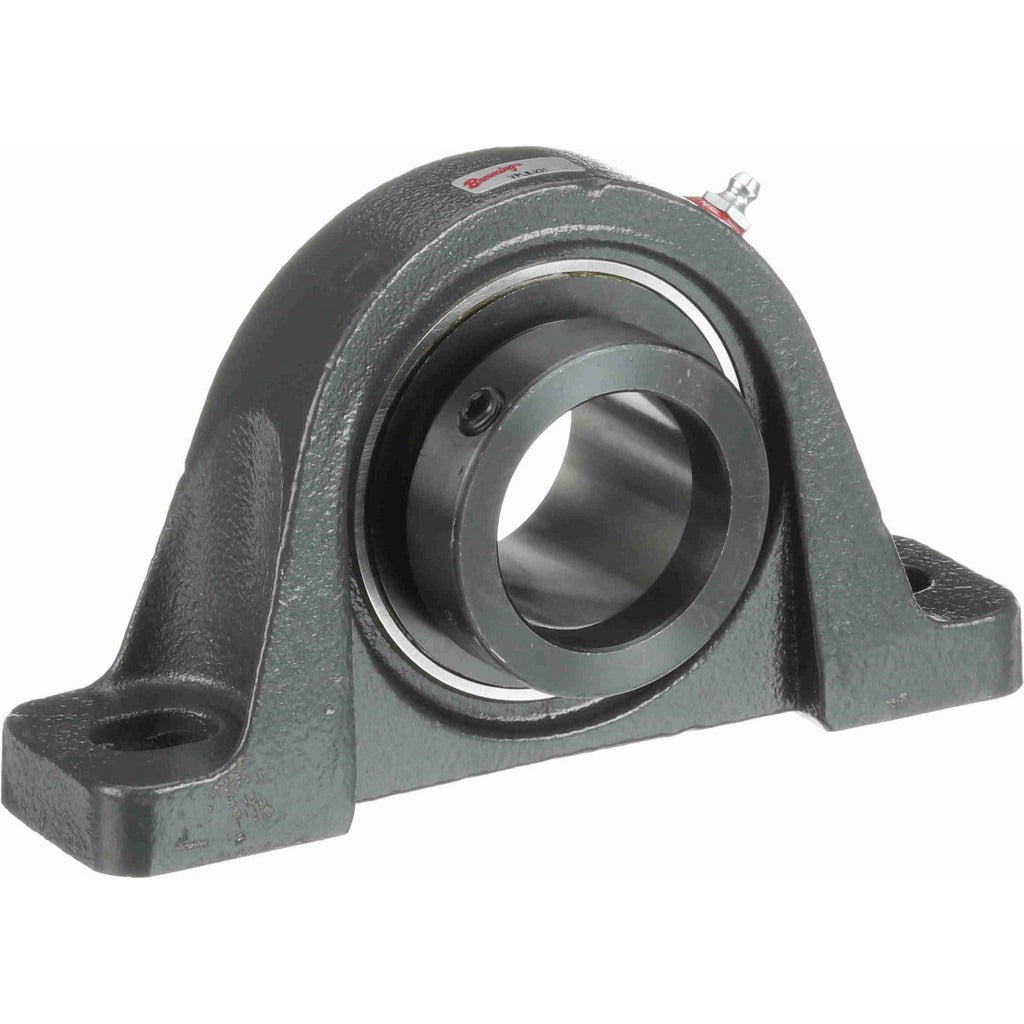

Browning 767688 Pillow Block Bearing 1-15/16 in Id Cast Iron

Product Description

The BROWNING 767688 is a two-bolt pillow block bearing designed for general industrial power transmission applications. It houses a ball insert bearing with a 1-15/16 inch straight bore and uses an eccentric locking collar to secure the shaft. The housing is cast iron, and the insert is manufactured from 52100 bearing steel. Static load capacity is 5,216 pounds and dynamic load capacity is 7,889 pounds, making it a solid choice for moderate-to-heavy duty rotating shaft applications. It is part of the VPLE 200 Series and is installed by millwrights, maintenance technicians, and industrial mechanics working on conveyor systems, fans, pumps, and similar rotating equipment.

This bearing is suited for industrial and commercial machinery requiring reliable shaft support in standard pillow block configurations. The two-bolt base mounts to a flat surface with 6-3/16 inches between mounting hole centers, simplifying alignment and installation. With a maximum rated speed of 3,000 RPM, it is appropriate for a wide range of motor-driven equipment operating in manufacturing, agricultural, and material handling environments. The VPLE 200 Series is a commonly specified bearing family for replacement and new-build shaft support assemblies.

Key Features

• 1-15/16 inch straight bore accommodates standard shaft diameters in the VPLE 200 Series
• Eccentric locking collar provides positive shaft retention without set screw damage to shaft surface
• Cast iron housing offers durability and resistance to deformation under load
• 52100 bearing steel insert rated for 5,216 pounds static and 7,889 pounds dynamic load capacity
• Two-bolt mounting base with 6-3/16 inch center-to-center spacing for easy alignment
• Maximum 3,000 RPM operating speed suitable for a broad range of industrial drive applications

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for industrial shaft support applications requiring a 1-15/16 inch bore, two-bolt mount, and cast iron housing within the VPLE 200 Series specification.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance technician. Lock out and tag out all power sources and relieve any stored mechanical energy before removing or installing this bearing. Ensure the mounting surface is flat and clean before torquing the base bolts, and verify shaft alignment before securing the eccentric locking collar. Follow applicable ANSI and OSHA machine guarding requirements during installation and commissioning.
