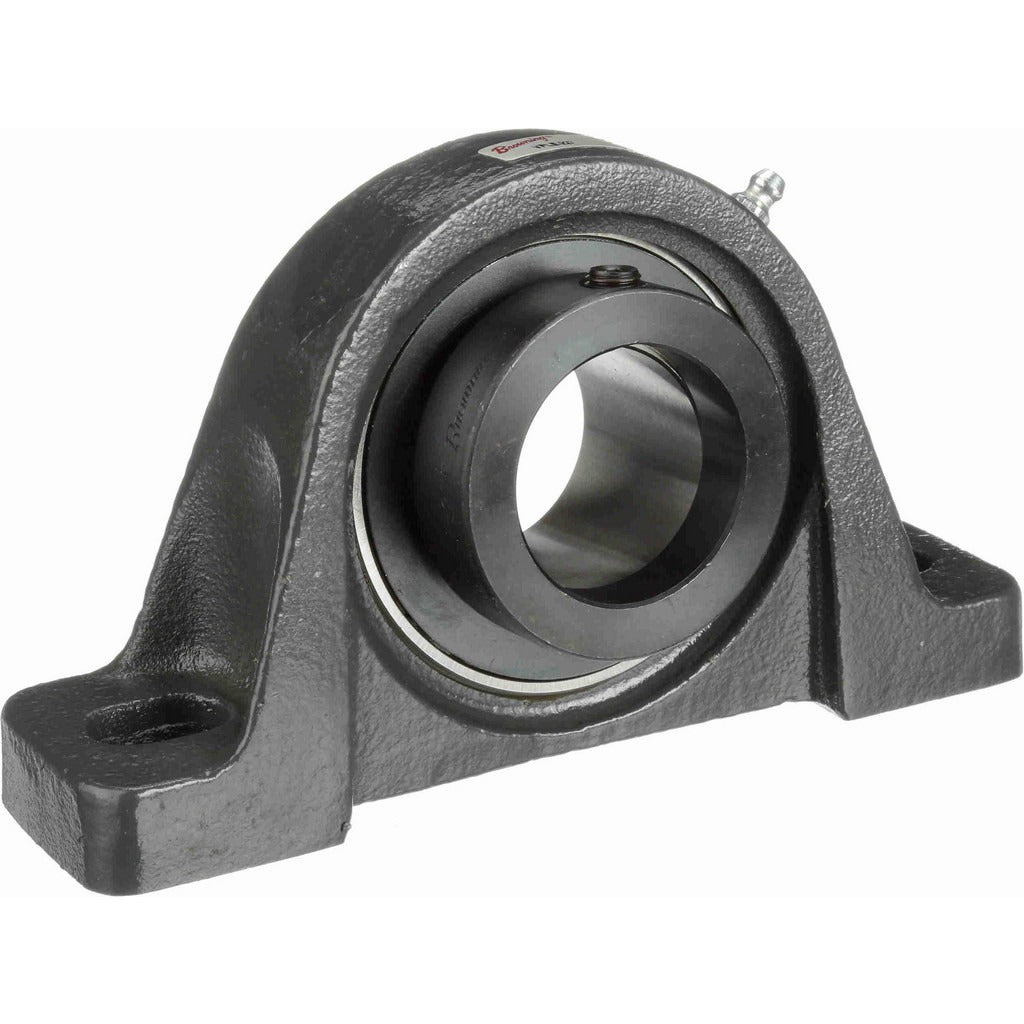

Browning 767666 Pillow Block Bearing 1-11/16 in Vple 200

Product Description

The BROWNING 767666 is a two-bolt pillow block bearing in the VPLE 200 series, designed for industrial shaft support applications in rotating equipment. It features a 1-11/16 inch straight bore with an eccentric lock collar, a cast iron housing, and a 52100 bearing steel ball insert. The unit carries a static load capacity of 5,139 pounds and a dynamic load capacity of 7,901 pounds, making it well suited for moderate-to-heavy radial load service. Overall dimensions measure 7-3/8 inches in overall length and 4-3/16 inches in overall height. Mechanical and millwright tradespeople install this bearing in conveyor systems, fan shafts, and general industrial machinery where a bolt-down pillow block mount is required.

This pillow block fits into fixed-mount applications where the shaft diameter is 1-11/16 inches and the mounting surface accepts a two-bolt pattern with 5-21/32 inch center-to-center spacing. The base-to-center height of 2-1/16 inches allows consistent shaft alignment across common industrial frames. Maximum rated speed is 3,000 RPM, keeping this unit in range for fans, blowers, light conveyors, and similar rotating shaft assemblies found in both commercial and industrial settings.

Key Features

• 1-11/16 inch straight bore with eccentric locking collar for reliable shaft retention
• Cast iron housing provides rigidity and vibration dampening in fixed-mount installations
• 52100 bearing steel ball insert for durability under radial load
• 5,139 lb static and 7,901 lb dynamic load capacity for moderate-to-heavy duty service
• Two-bolt mounting pattern with 5-21/32 inch hole center spacing
• Rated to 3,000 RPM maximum operating speed

Compatibility

Designed as an OEM-style replacement or direct-install pillow block for rotating shaft applications requiring a 1-11/16 inch bore, two-bolt base mount, and VPLE 200 series dimensioning.

Installation Notes

Installation is typically performed by a licensed millwright or qualified mechanical technician. De-energize and lock out all power to the driven equipment before removing or installing bearings per LOTO procedures. Ensure the mounting surface is flat and free of debris before seating the housing. Torque mounting bolts evenly and verify shaft alignment before returning equipment to service.
