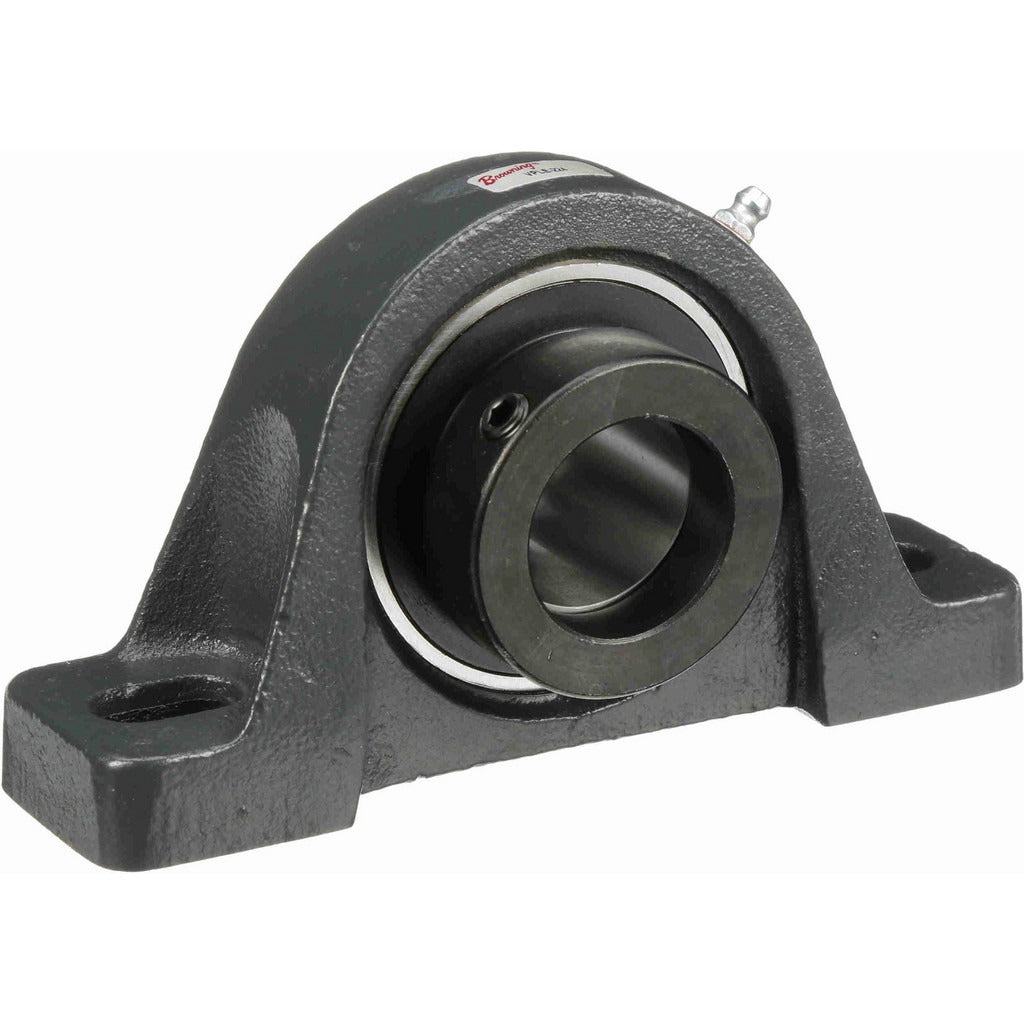

Browning 767656 Pillow Block Bearing 1.5 in Id Cast Iron

Product Description

The BROWNING 767656 is a VPLE-224 series pillow block bearing designed for industrial shaft support applications. It features a 1-1/2 inch straight bore with an eccentric lock collar for shaft retention. The cast iron housing provides rigid mounting support, and the 52100 bearing steel insert delivers dependable load handling with a static load capacity of 4,467 pounds and a dynamic load capacity of 7,340 pounds. Rated to a maximum of 3,500 RPM, this two-bolt pillow block is suited for general industrial conveying, processing, and power transmission equipment. Licensed technicians and millwrights install this unit in fixed-shaft applications requiring a reliable, replaceable bearing assembly.

The BROWNING 767656 fits a 1-1/2 inch diameter shaft and mounts with two bolts on 5-3/8 inch center-to-center spacing. The base-to-center height of 1-15/16 inches and overall height of 3-15/16 inches make it compatible with standard low-profile mounting configurations. An overall length of 7-1/8 inches and bearing length of 2-7/32 inches suit a range of light-to-moderate duty industrial installations including fans, pumps, conveyors, and similar rotating equipment. This unit is part of the VPLE 200 series.

Key Features

• 1-1/2 inch straight bore with eccentric lock collar for positive shaft retention
• Static load capacity of 4,467 pounds and dynamic load capacity of 7,340 pounds
• Cast iron housing for rigid, durable mounting in industrial environments
• 52100 bearing steel insert for reliable wear resistance and load performance
• Two-bolt base mount with 5-3/8 inch bolt hole center-to-center spacing
• Maximum operating speed of 3,500 RPM

Compatibility

Designed as an OEM-style replacement or new-installation pillow block for industrial shafts with a 1-1/2 inch straight bore requiring a two-bolt VPLE 200 series housing.

Installation Notes

Installation is typically performed by a millwright or maintenance technician following standard power transmission safety procedures. De-energize and lock out all rotating equipment before mounting or removing the bearing. Ensure the mounting surface is flat and clean before torquing the base bolts, and verify shaft alignment before final tightening of the eccentric lock collar. Follow applicable ANSI and OSHA lockout/tagout procedures during service.
