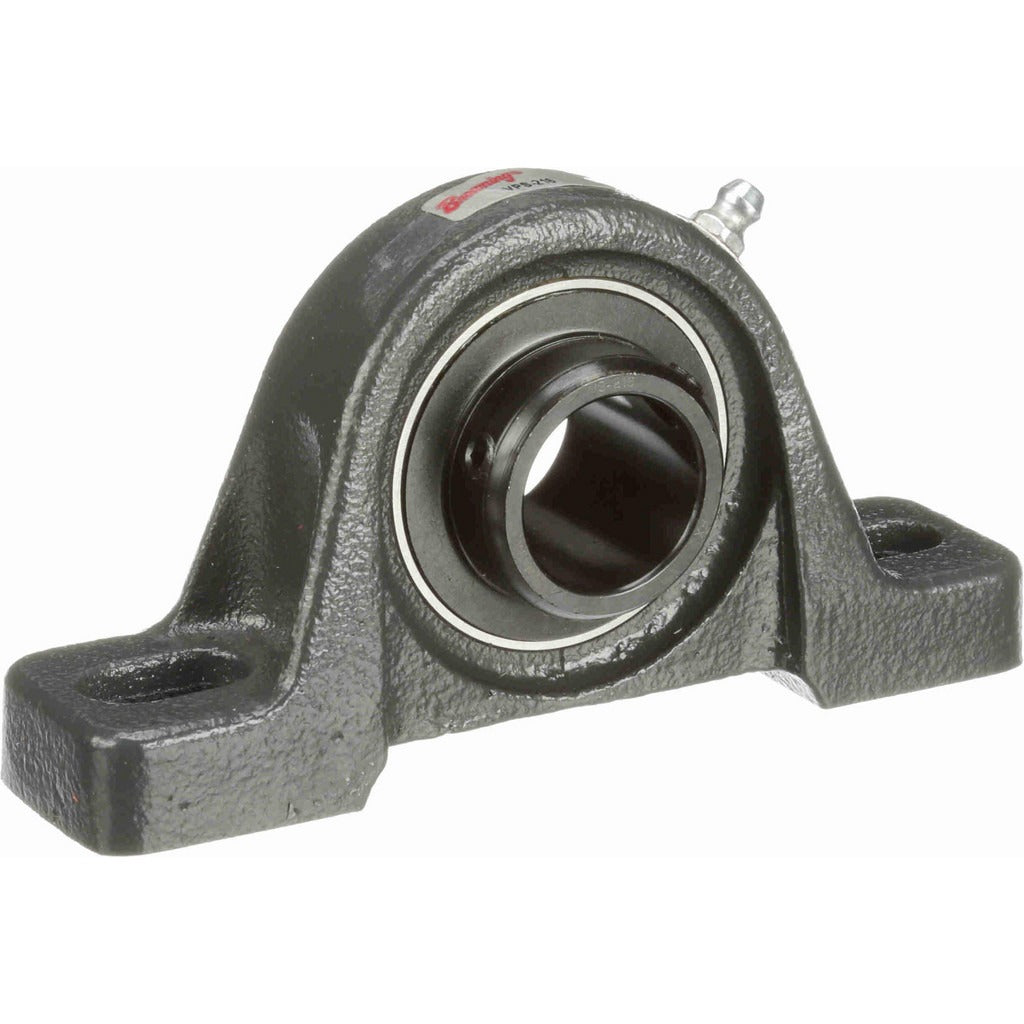

Browning 767625 Pillow Block Bearing 1 Inch Id Vps 200

Product Description

The BROWNING 767625 is a two-bolt pillow block bearing in the VPS 200 series, designed to support rotating shafts in light-to-medium industrial applications. It features a 1 inch straight bore with a set screw locking mechanism and a cast iron housing that encloses a 52100 bearing steel ball insert. The unit carries a static load capacity of 1,651 pounds and a dynamic load capacity of 2,801 pounds, with a maximum rated speed of 5,500 RPM. Licensed millwrights, maintenance mechanics, and industrial equipment technicians install this style of bearing on conveyor systems, fans, pumps, and general power transmission equipment.

This pillow block is suited for horizontal shaft mounting in both light industrial and commercial settings. The two-bolt base mounts to a flat surface using standard fastener hardware, with mounting hole centers spaced 4.125 inches apart. The base-to-center height of 1.4375 inches accommodates typical shaft alignment requirements in conveyor frames, blower assemblies, and driven equipment. The VPS 200 series is a catalog-standard offering commonly specified in OEM and replacement applications where a 1 inch bore pillow block is required.

Key Features

• 1 inch straight bore with set screw locking for positive shaft retention
• 52100 bearing steel ball insert rated to 5,500 RPM maximum
• Cast iron housing provides rigid support and corrosion resistance in dry environments
• Static load capacity of 1,651 pounds and dynamic load capacity of 2,801 pounds
• Two-bolt base with 4.125 inch center-to-center mounting hole spacing
• Compact overall dimensions: 5.5 inches overall length, 2.8125 inches overall height

Compatibility

Designed as a standard OEM-style replacement pillow block for applications requiring a 1 inch bore, two-bolt mount, VPS 200 series bearing unit.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. Before mounting, power down and lock out all rotating equipment per applicable LOTO procedures. Ensure the mounting surface is flat and clean before torquing fasteners. Set screws should be tightened in sequence against a properly sized shaft; do not overtighten or use the set screws to compensate for shaft misalignment.
