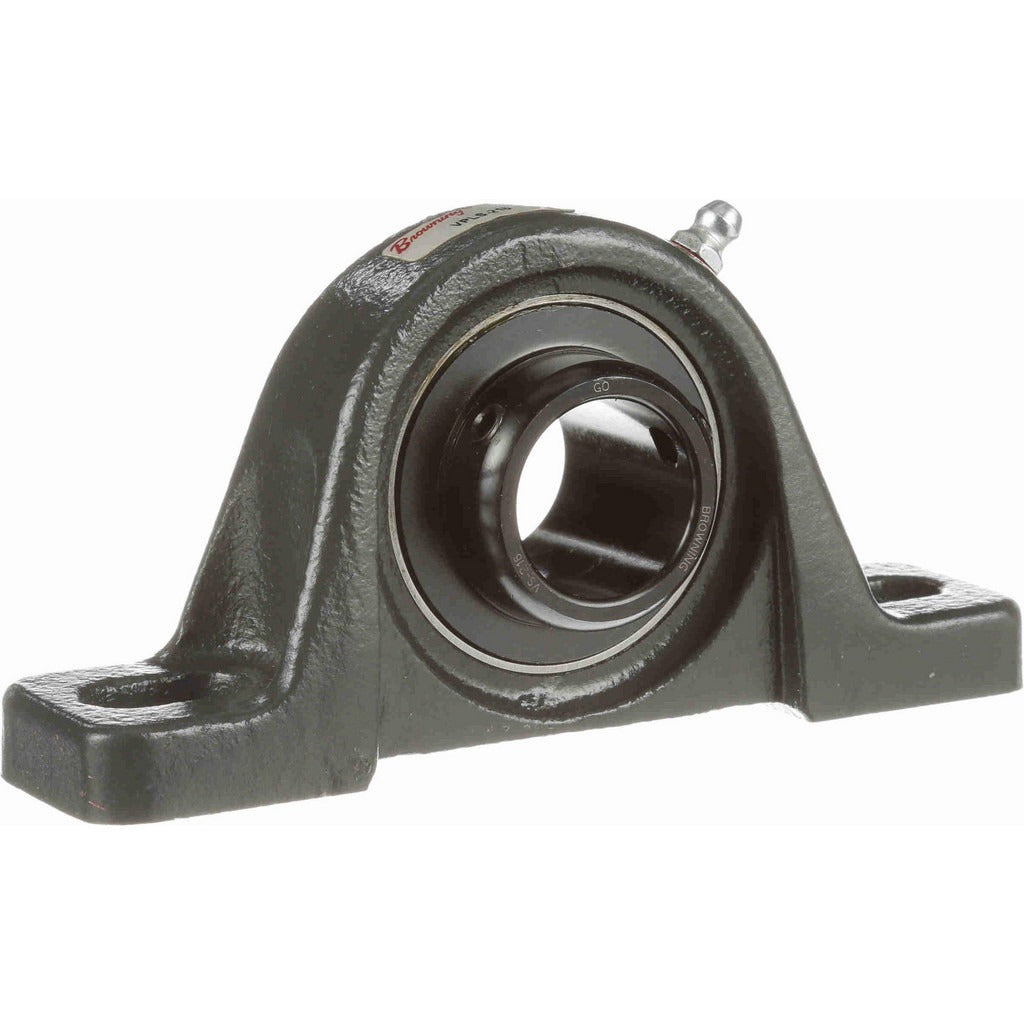

Browning 767624 Pillow Block Bearing 1 Inch Id Cast Iron

Product Description

The BROWNING 767624 is a two-bolt pillow block bearing in the VPLS 200 series, designed to support rotating shafts in light-to-medium duty industrial and mechanical applications. It features a 1 inch straight bore with a set screw lock, a cast iron housing, and a 52100 bearing steel ball insert. The static load capacity is 1,651 pounds and the dynamic load capacity is 2,801 pounds, making it suitable for moderate radial load conditions. Overall assembly length is 5.5 inches and overall height is 2.6875 inches. Rated to a maximum of 5,500 RPM, this unit is well suited for conveyor, fan, and general machinery shaft support work. Licensed millwrights, maintenance technicians, and mechanical contractors are the typical installers.

The BROWNING 767624 is intended for use in industrial machinery, light manufacturing equipment, conveyor systems, agricultural equipment, and HVAC fan shaft assemblies where a standard two-bolt pillow block mount is required. The 4.125 inch center-to-center bolt hole spacing and 1.313 inch base-to-center height allow straightforward frame or baseplate mounting. The set screw locking mechanism secures the bearing insert to the shaft without requiring a keyed bore. This unit ships individually and is appropriate for both new installations and direct replacement of worn or failed pillow block bearings of matching bore and bolt pattern.

Key Features

• 1 inch straight bore with set screw lock for secure shaft retention
• Cast iron housing provides rigid, durable support in industrial environments
• 52100 bearing steel ball insert rated to 5,500 RPM maximum
• Static load capacity of 1,651 pounds and dynamic load capacity of 2,801 pounds
• Two-bolt mounting with 4.125 inch center-to-center bolt hole spacing
• VPLS 200 series design for consistent dimensional interchangeability

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for machinery requiring a two-bolt mount with a 1 inch straight bore, 4.125 inch bolt hole center-to-center spacing, and VPLS 200 series dimensional standards.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Before mounting, de-energize and lock out the drive system per applicable OSHA lockout/tagout procedures. Ensure the mounting surface is flat and free of debris before torquing the mounting bolts. Set screws should be tightened in accordance with the bearing manufacturer's torque specifications for the shaft diameter. Do not use the bearing housing as a striking surface during installation.
