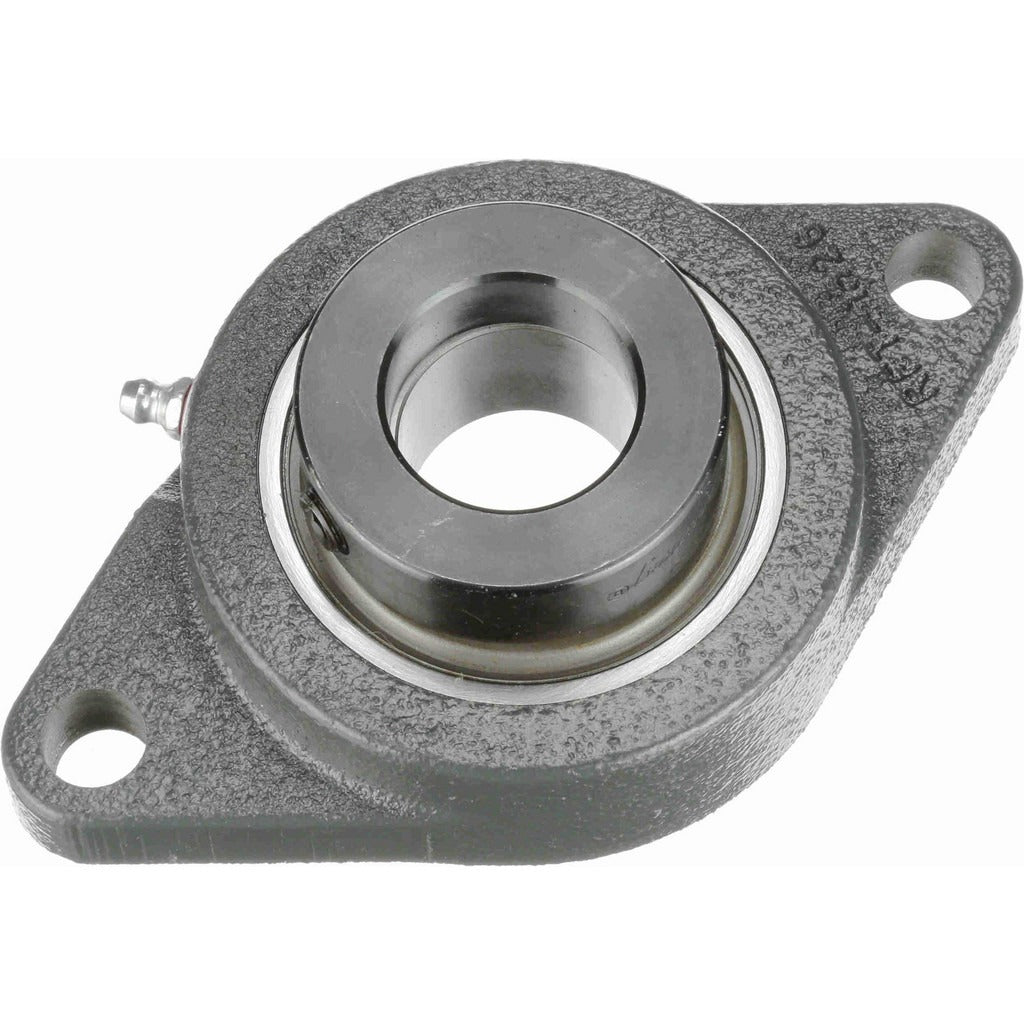

Browning 767621 2-bolt Flange Bearing 1-1/4 Inch Id

Product Description

The BROWNING 767621 is a VF2E-120 series 2-bolt flange bearing unit designed for shaft support in industrial and commercial power transmission applications. It features a 1-1/4 inch inside diameter bore with an eccentric lock collar for secure shaft retention. The cast iron housing provides durability under load, with a static load capacity of 3,493 pounds and a dynamic load capacity of 5,782 pounds. The bearing insert is manufactured from 52100 steel. This unit is installed by millwrights, maintenance mechanics, and industrial technicians in conveyor systems, fan assemblies, pumps, and general rotating equipment.

The BROWNING 767621 fits applications where a 2-bolt flange mount is required on a 1-1/4 inch diameter shaft. It is suited for moderate-speed applications up to 2,500 RPM. The 5-1/8 inch center-to-center bolt hole spacing accommodates standard mounting layouts. Typical install locations include agricultural equipment, HVAC fan shafts, light conveyor lines, and general industrial machinery where a compact flange profile is needed.

Key Features

• 1-1/4 inch bore with eccentric lock collar for positive shaft engagement
• Cast iron housing rated for 3,493 lb static and 5,782 lb dynamic load capacity
• 52100 steel bearing insert for wear resistance under radial load
• 2-bolt mounting pattern with 5-1/8 inch center-to-center spacing and 1/2 inch bolt size
• Maximum operating speed of 2,500 RPM
• Lubrication-required design for extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit flange bearing for equipment using a 2-bolt flange mount with a 1-1/4 inch shaft diameter in the VF2E 100 series configuration.

Installation Notes

Installation is performed by qualified maintenance mechanics or millwrights. De-energize and lock out all power to the equipment before removing or installing any bearing unit. Ensure the shaft and bore surfaces are clean and free of burrs before seating the bearing. Lubricate the insert per the manufacturer interval using a compatible grease fitting; this unit requires periodic re-lubrication and is not sealed for life.
