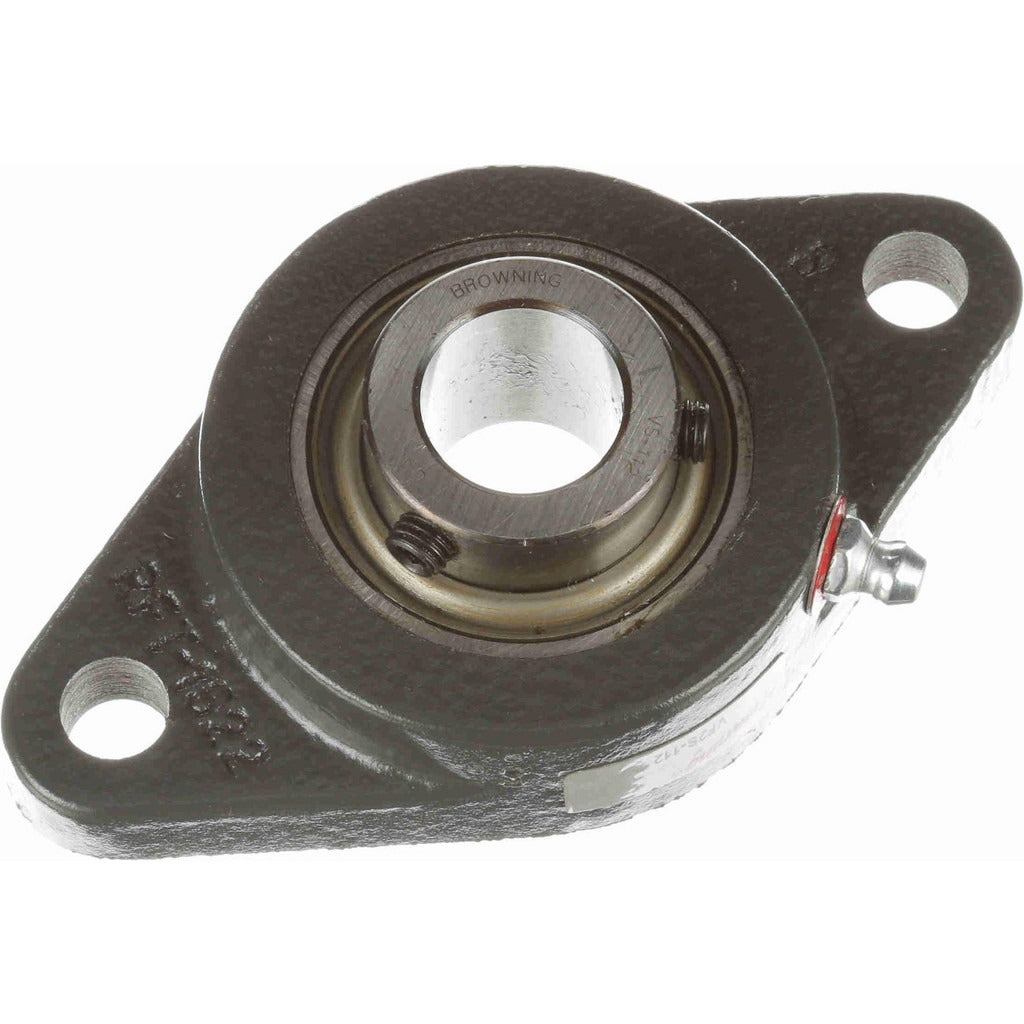

Browning 767605 2-bolt Flange Bearing 3/4 Inch Id

Product Description

The BROWNING 767605 is a 2-bolt flange bearing unit in the VF2S 100 Series, designed for light-to-medium duty shaft support in industrial and mechanical drive applications. The cast iron housing accepts a 52100 steel ball bearing insert with a 3/4 inch bore and secures the shaft via a set screw lock. It carries a static load capacity of 1,444 pounds and a dynamic load capacity of 2,611 pounds, making it suited for moderate radial load conditions. The overall length is 4-13/32 inches and the overall height is 2-1/2 inches. Licensed millwrights, maintenance mechanics, and industrial service technicians are the typical installers.

This bearing is used in conveyor systems, fans, pumps, augers, and general rotating equipment where a two-bolt flange mount is required. The 3/4 inch inside diameter fits standard shaft stock of that size. The maximum rated speed is 4,000 RPM. Mounting hole centers are spaced 3-17/32 inches apart, and the bolt size is 3/8 inch, allowing straightforward installation on standard fabricated or OEM mounting plates. Lubrication is required during installation and as part of a regular maintenance schedule.

Key Features

• Cast iron housing provides durability in industrial environments
• 52100 steel ball bearing insert for reliable load handling
• Set screw lock secures shaft position without additional hardware
• Static load capacity of 1,444 pounds and dynamic load capacity of 2,611 pounds
• Rated to 4,000 RPM maximum operating speed
• Standard 3/8 inch bolt size simplifies mounting to existing structures

Compatibility

Designed as an OEM-style replacement or direct-fit flange bearing for applications requiring a 2-bolt flange mount with a 3/4 inch bore shaft and 3-17/32 inch bolt hole center spacing.

Installation Notes

Shaft and mounting surface should be clean and free of burrs before installation. Torque mounting bolts evenly and confirm shaft alignment before final tightening of set screws. Grease the bearing insert at installation and at regular service intervals per equipment manufacturer recommendations. De-energize and lock out all power to rotating equipment before servicing or replacing bearing units.
