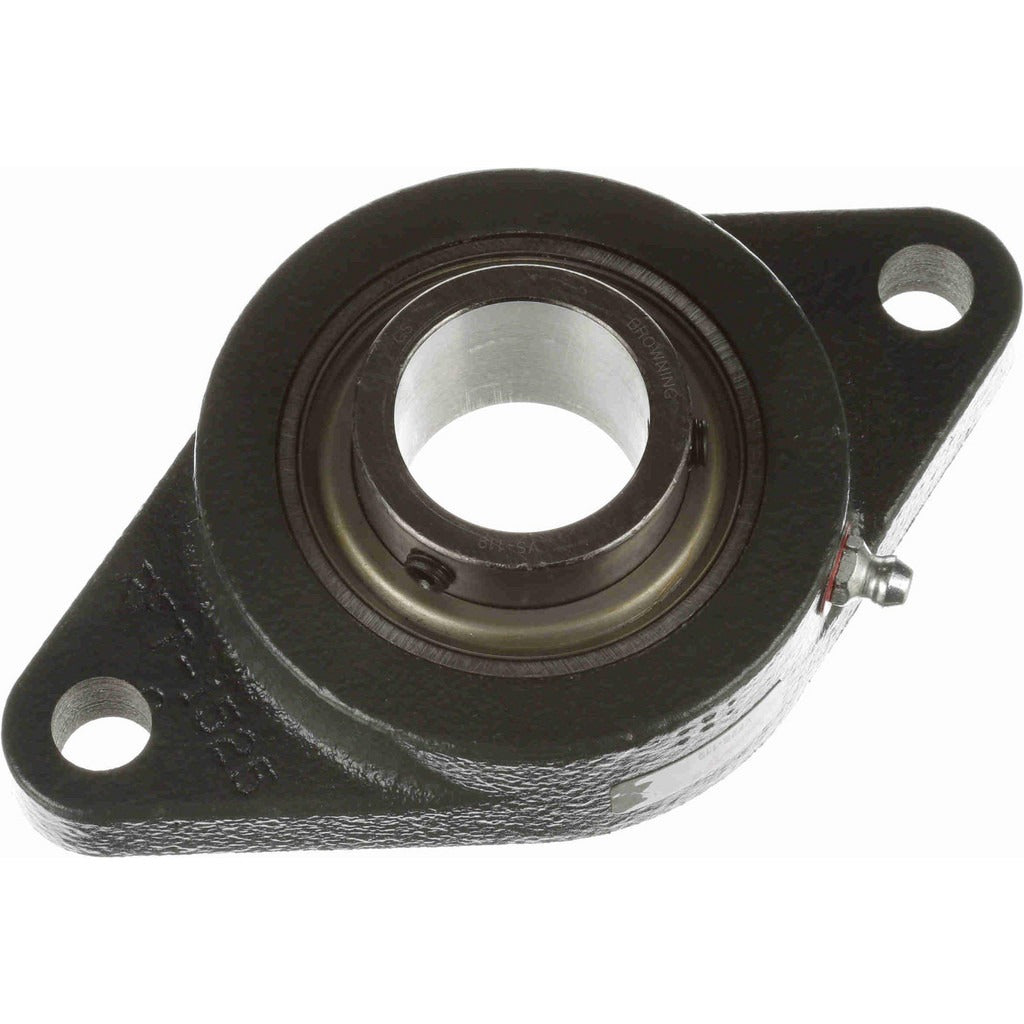

Browning 767589 2-bolt Flange Bearing 1-3/16 in Id

Product Description

The BROWNING 767589 is a 2-bolt flange bearing unit in the VF2S 100 Series, designed for shaft support and radial load handling in industrial power transmission applications. It features a 1-3/16 inch bore with a set screw lock and a cast iron housing that provides rigidity and corrosion resistance in moderate environments. The ball bearing insert is made from 52100 steel and is rated for a static load capacity of 2,567 pounds and a dynamic load capacity of 4,381 pounds. With a maximum operating speed of 3,000 RPM, this unit suits a wide range of general-purpose rotating equipment. Installation requires lubrication before commissioning. Licensed millwrights, maintenance mechanics, and industrial technicians are the typical installers for this type of component.

The BROWNING 767589 is suited for use in agricultural equipment, conveyor systems, fans, blowers, and general industrial machinery where a two-bolt mounting footprint is required. The overall length of 5-9/16 inches and overall height of 3-1/8 inches make it compatible with standard two-bolt flange mounting configurations. The 4-19/32 inch bolt hole center-to-center spacing and 7/16 inch bolt size are consistent with common equipment mounting frames. This unit fits both new installations and replacement applications where the original flange unit has worn or failed.

Key Features

• 1-3/16 inch bore with set screw locking for positive shaft retention
• Cast iron housing for structural rigidity in industrial environments
• 52100 steel ball bearing insert rated at 4,381 pounds dynamic load capacity
• 2,567 pound static load capacity for demanding applications
• Maximum rated speed of 3,000 RPM
• Requires lubrication — grease fitting allows for field serviceability

Compatibility

Designed as an OEM-style replacement 2-bolt flange bearing unit for industrial and agricultural equipment requiring a 1-3/16 inch bore, 5-9/16 inch overall length, and 4-19/32 inch bolt hole center-to-center spacing in the VF2S 100 Series configuration.

Installation Notes

Installation is typically performed by a licensed millwright or qualified maintenance technician. De-energize and lock out all power sources before removing the worn unit or mounting the new bearing. Ensure the shaft and mounting surface are clean and free of burrs before seating the bearing. Apply the appropriate grease to the insert before startup, as this unit requires lubrication and is not pre-packed for sealed maintenance-free service.
