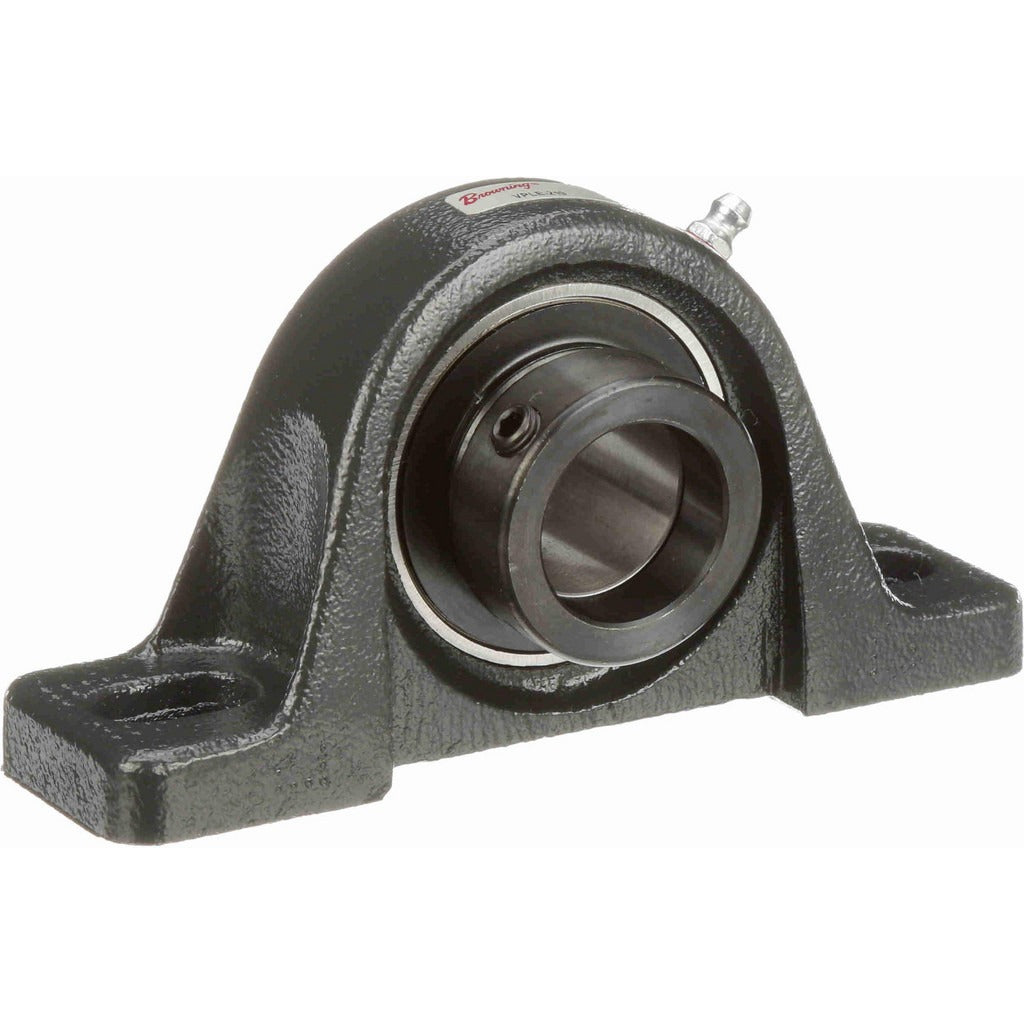

Browning 767539 Pillow Block Bearing 1-3/16 in Vple 200

Product Description

The BROWNING 767539 is a VPLE 200 series pillow block bearing designed for industrial and mechanical power transmission applications. It features a 1-3/16 inch bore with a straight bore profile and an eccentric lock collar for secure shaft retention. The cast iron housing provides rigidity and durability in demanding operating environments. With a static load capacity of 2,567 pounds and a dynamic load capacity of 4,381 pounds, this unit handles substantial radial loads. Overall dimensions are 6-3/16 inches in length and 3-5/32 inches in height, making it a compact but capable bearing unit. Rated to 4,500 RPM, it suits a broad range of rotating shaft applications. Millwrights, maintenance technicians, and mechanical contractors typically specify and install this type of bearing.

This pillow block bearing fits two-bolt mounting configurations with a center-to-center bolt hole spacing of 4-5/8 inches. The base-to-center height is 1-9/16 inches, and the bearing length measures 1-29/32 inches. It is suited for use in conveyor systems, fans, pumps, agricultural equipment, and general industrial machinery where a reliable, field-replaceable mounted bearing unit is required. The eccentric locking collar allows straightforward shaft positioning during installation without the need for set screws or adapter sleeves.

Key Features

• 1-3/16 inch straight bore with eccentric lock collar for positive shaft retention
• Cast iron housing for structural rigidity in industrial environments
• 52100 bearing steel insert for high load and wear resistance
• Static load capacity of 2,567 pounds and dynamic load capacity of 4,381 pounds
• Maximum operating speed of 4,500 RPM
• Two-bolt mounting pattern with 4-5/8 inch center-to-center bolt spacing

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for two-bolt mounted bearing applications using a 1-3/16 inch shaft diameter in the VPLE 200 series configuration.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Shut down and lock out all power to the drive system before removing or installing any bearing unit. Ensure the mounting surface is flat and clean before tightening fasteners evenly to prevent housing distortion. The eccentric collar should be set with shaft rotation direction in mind per standard bearing installation practice.
