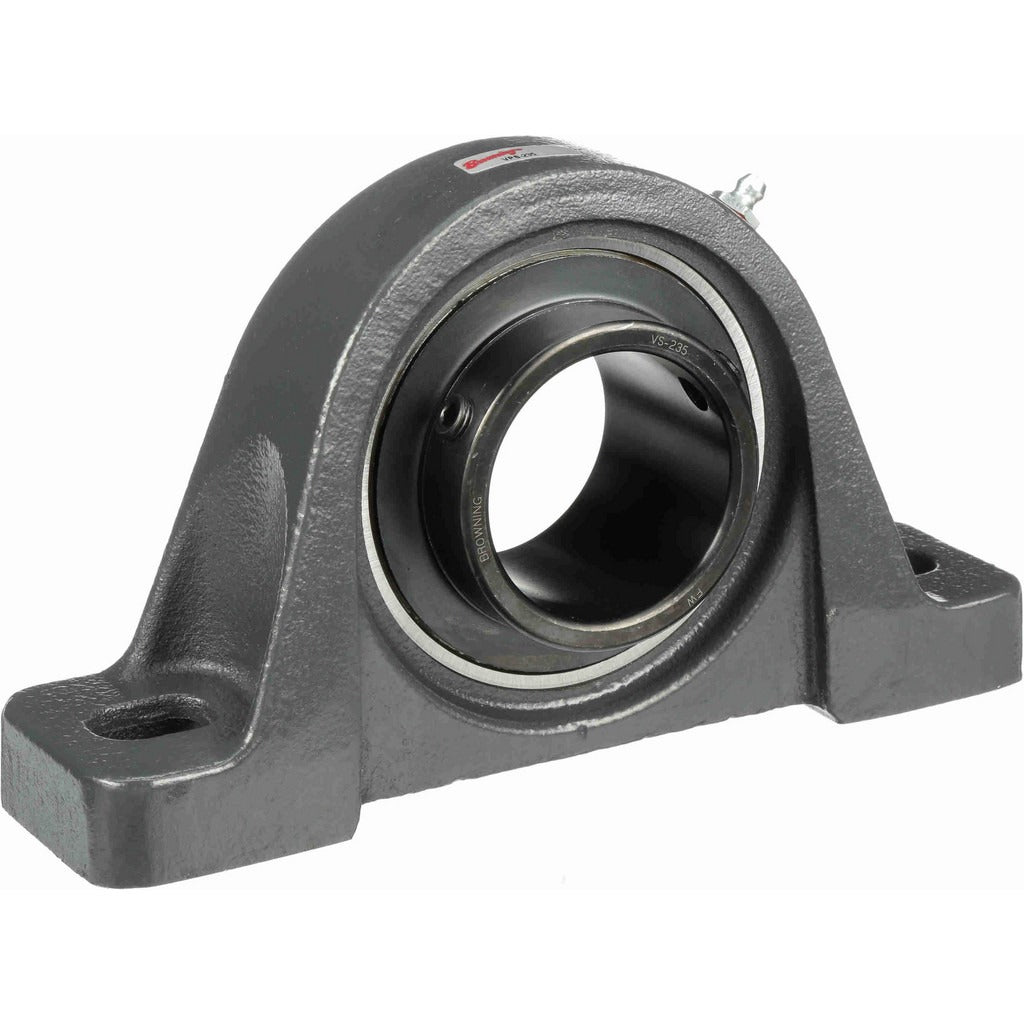

Browning 767485 Pillow Block Bearing 2-3/16 Inch Id

Product Description

The BROWNING 767485 is a two-bolt pillow block bearing from the VPS 200 Series, designed for industrial shaft support applications requiring a straight-bore insert with set screw locking. The bearing features a 2-3/16 inch inside diameter, an overall height of 4-31/32 inches, and an overall length of 8-13/16 inches. The housing is cast iron, and the insert is manufactured from 52100 bearing steel, providing reliable load-handling in moderate to heavy-duty rotating equipment. Static load capacity is rated at 6,601 pounds, and dynamic load capacity is rated at 9,752 pounds. Maximum operating speed is 2,500 RPM. This unit is installed by millwrights, maintenance technicians, and mechanical contractors working on conveyor systems, fans, pumps, and similar rotating equipment.

The BROWNING 767485 fits standard two-bolt pillow block mounting configurations with a 6-15/16 inch distance between mounting hole centers. The base-to-center height measures 2-1/2 inches, allowing straightforward shaft alignment during installation. It is suited for industrial environments where a cast iron housing and precision-grade bearing steel insert are required for continuous-duty operation. The set screw locking mechanism secures the bearing to the shaft without requiring adapter sleeves, simplifying installation on standard straight shafts.

Key Features

• 52100 bearing steel insert for high load capacity and durability in continuous-duty applications
• Cast iron housing provides rigidity and resistance to deformation under static and dynamic loads
• Set screw lock type secures directly to straight-bore shafts without adapter hardware
• Static load capacity of 6,601 pounds and dynamic load capacity of 9,752 pounds
• Maximum rated speed of 2,500 RPM suitable for fans, conveyors, and pump drive applications
• Two-bolt mounting with 6-15/16 inch center-to-center spacing for standard pillow block footprints

Compatibility

Designed as an OEM-style replacement or direct installation pillow block bearing for industrial rotating equipment using a 2-3/16 inch straight bore shaft in the VPS 200 Series configuration.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Shut down and lock out all power to the driven equipment before removing or installing the bearing assembly. Ensure the mounting surface is flat and free of debris before torquing mounting bolts, and verify shaft diameter and straightness before securing set screws. Consult applicable ANSI and OSHA lockout/tagout procedures for rotating equipment service.
