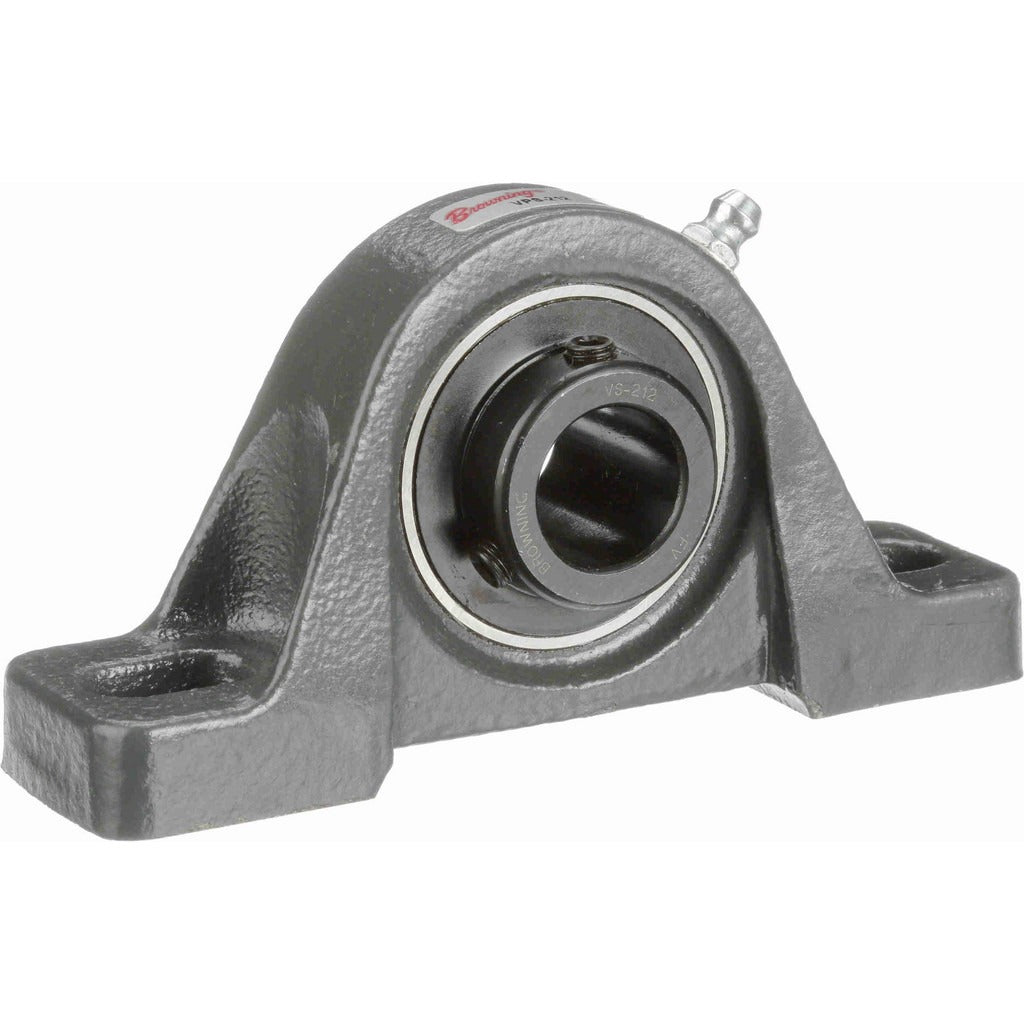

Browning 767434 Pillow Block Bearing 0.75 Inch Id Vps 200

Product Description

The BROWNING 767434 is a two-bolt pillow block bearing in the VPS 200 series, designed for shaft support in light- to medium-duty rotating equipment. It houses a 52100 bearing steel ball insert with a 0.75 inch straight bore, secured by a set screw lock. The cast iron housing provides solid, rigid support in standard industrial and mechanical drive applications. Static load capacity is rated at 1,444 pounds and dynamic load capacity reaches 2,611 pounds, making it suitable for moderate radial loads at speeds up to 6,500 RPM. Licensed HVAC technicians, millwrights, and mechanical contractors install these units on fan shafts, blower assemblies, and conveyor drives.

This pillow block bearing fits shaft-driven equipment in commercial and light industrial settings. Common applications include belt-driven blower assemblies, fan arrays, pump shafts, and conveyor systems where a two-bolt, flat-base mount is required. The VPS 200 series is intended for installations where consistent shaft alignment and reliable radial load support are priorities. The 3.78 inch center-to-center bolt spacing and 1.31 inch base-to-center height suit standard mounting plates and fabricated bases in typical mechanical room or equipment room configurations.

Key Features

• Ball bearing insert made from 52100 bearing steel for durability under radial load
• Set screw locking mechanism secures bearing insert to shaft without additional hardware
• Cast iron housing resists deflection under static and dynamic loading
• Rated to 6,500 RPM maximum, suitable for standard blower and fan shaft speeds
• Two-bolt mounting pattern with 3.78 inch hole center spacing for easy installation
• Straight bore accommodates standard 0.75 inch shafting without modification

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for equipment using a 0.75 inch straight-bore, two-bolt mount in the VPS 200 series configuration.

Installation Notes

Pillow block bearings are installed by millwrights, HVAC mechanics, and mechanical contractors. De-energize and lock out the drive system before removing or installing any bearing assembly. Align the bearing concentrically with the mating shaft before tightening set screws, and ensure the mounting surface is flat and clean to prevent housing distortion. Follow applicable ANSI and OSHA lockout/tagout procedures throughout the service procedure.
