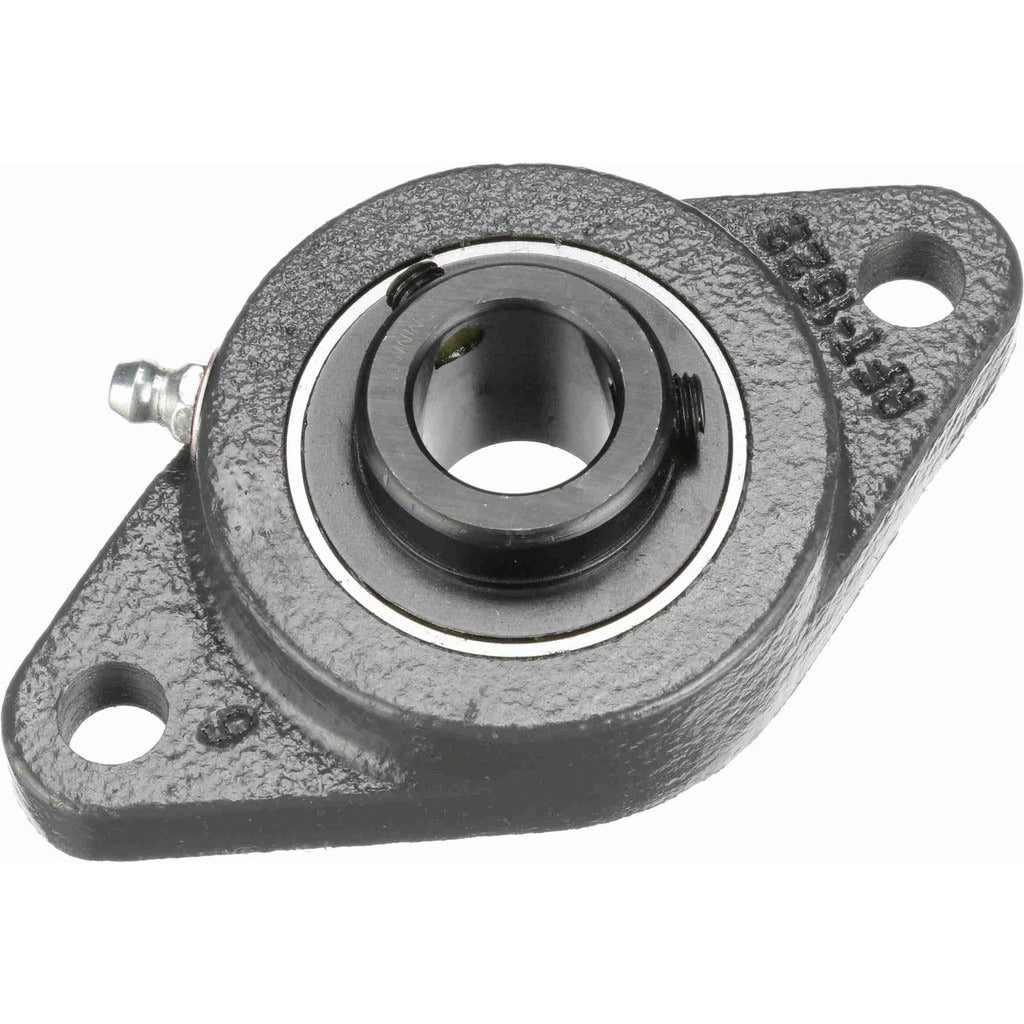

Browning 767432 2-bolt Flange Bearing 3/4 Inch Id

Product Description

The BROWNING 767432 is a 2-bolt flange bearing unit from the VF2S 200 Series, designed for industrial and commercial power transmission applications. It features a 3/4 inch bore with a cast iron housing and a 52100 steel ball bearing insert secured by a set screw lock. The unit carries a static load capacity of 1,444 pounds and a dynamic load capacity of 2,611 pounds, making it well suited for moderate-to-heavy radial load service. Licensed millwrights, maintenance mechanics, and equipment technicians typically install this type of flange bearing in conveyor systems, fans, pumps, and general rotating equipment.

The VF2S-212 fits applications requiring a compact 2-bolt flange mount with a 3/4 inch shaft. The overall length is 4-13/32 inches and the overall height is 2-1/2 inches, with mounting hole centers spaced 3-17/32 inches apart. The base-to-center distance is 0.719 inches. This bearing is appropriate for residential and light commercial HVAC fan shafts, agricultural equipment, and general industrial machinery where a greaseable, set-screw-retained flange unit is specified. Maximum rated speed is 6,500 RPM. Lubrication is required and must be maintained per the equipment manufacturer's service schedule.

Key Features

• 3/4 inch bore with set screw lock for positive shaft retention
• Cast iron housing for rigidity and corrosion resistance in industrial environments
• 52100 steel ball bearing insert rated to 6,500 RPM maximum
• Static load capacity of 1,444 pounds and dynamic load capacity of 2,611 pounds
• 2-bolt flange mount with 3/8 inch bolt size and 3-17/32 inch center-to-center spacing
• Grease fitting included — lubrication required for proper service life

Compatibility

Designed as a direct-fit replacement or new-installation flange bearing for equipment specifying a 3/4 inch bore, 2-bolt flange unit within the BROWNING VF2S 200 Series product family.

Installation Notes

Installation is typically performed by a licensed millwright or qualified maintenance mechanic. De-energize and lock out the equipment fully before mounting or removing any bearing unit. Align the shaft and housing carefully before tightening the 3/8 inch mounting bolts and set screws to prevent premature wear. Grease the bearing insert at initial installation and follow a regular lubrication interval based on operating speed, load, and environment.
