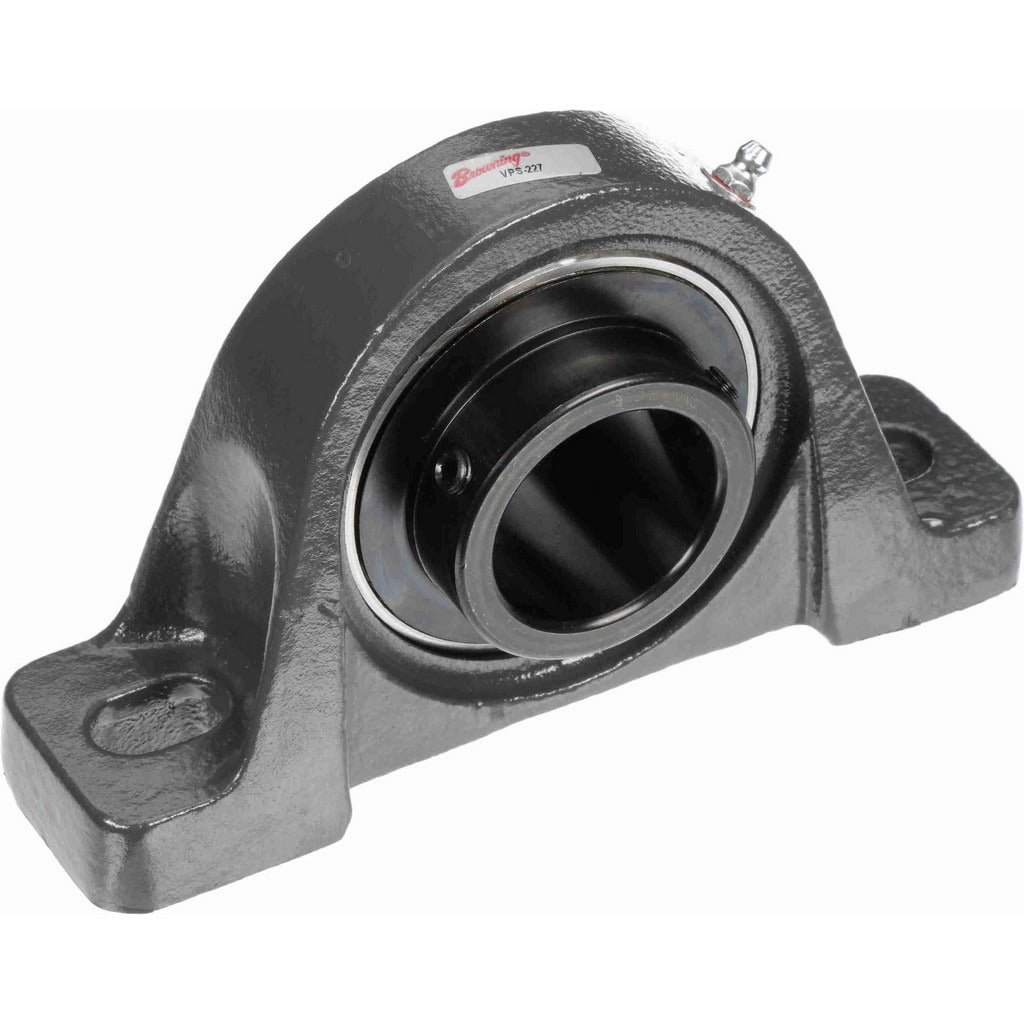

Browning 767419 Pillow Block Bearing 1-11/16 in Id Cast Iron

Product Description

The BROWNING 767419 is a VPS-227 series pillow block bearing designed for industrial and mechanical power transmission applications. It features a 1-11/16 inch straight bore with a set screw lock type, housing a 52100 bearing steel ball insert inside a cast iron housing. This unit carries a static load capacity of 5,139 pounds and a dynamic load capacity of 7,901 pounds, making it suitable for moderate-to-heavy radial load applications. Mechanical contractors, millwrights, and industrial maintenance technicians install this bearing on rotating shafts in conveyor systems, fans, pumps, and similar driven equipment.

This pillow block is suited for two-bolt mounting configurations in industrial settings where a rigid, grounded bearing support is required. The VPS 200 series is commonly used in light industrial and commercial equipment where a cast iron housing provides adequate durability. With a maximum rated speed of 3,000 RPM and a 2-bolt base, it fits standard shaft support arrangements on belt-driven or direct-coupled systems. The 5-21/32 inch center-to-center bolt spacing and 2-1/8 inch base-to-center height are standard reference dimensions for mounting layout and shaft alignment.

Key Features

• 1-11/16 inch straight bore with set screw locking for secure shaft attachment
• 52100 bearing steel ball insert for reliable radial load handling
• Cast iron housing provides rigid support in industrial environments
• Static load capacity of 5,139 pounds and dynamic load capacity of 7,901 pounds
• Maximum operating speed of 3,000 RPM
• Two-bolt base with 5-21/32 inch mounting hole center-to-center spacing

Compatibility

Designed as an OEM-style replacement or direct-install pillow block bearing for two-bolt shaft support applications in the BROWNING VPS 200 series, accommodating 1-11/16 inch diameter shafts.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Deenergize and lock out all power sources before mounting or servicing rotating equipment in accordance with applicable OSHA lockout/tagout procedures. Ensure the mounting surface is flat and the shaft is clean and within tolerance before tightening the set screws. Do not overtighten set screws or apply side loads beyond the rated capacity of the bearing.
