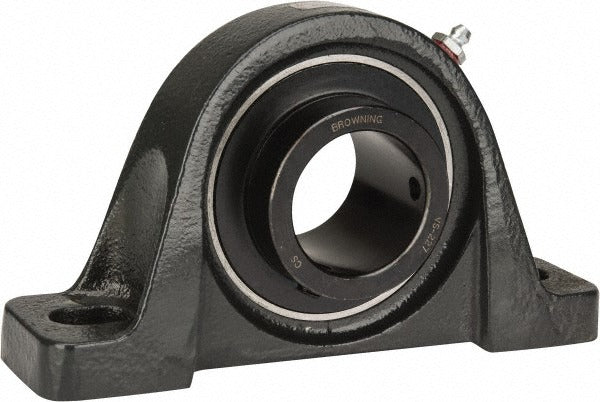

Browning 767418 Pillow Block Bearing 1-11/16 in Id Cast Iron

Product Description

The BROWNING 767418 is a cast iron pillow block bearing designed to support rotating shafts in industrial and commercial mechanical drive systems. This unit houses a 52100 steel insert and uses a set screw locking mechanism to secure the shaft. The bearing carries a static load capacity of 5,139 pounds and a dynamic load capacity of 7,901 pounds, making it well suited for moderate-to-heavy duty conveyor, fan, pump, and general power transmission applications. Licensed millwrights, maintenance mechanics, and industrial technicians are the primary installers of this unit in both new construction and retrofit scenarios.

The 767418 pillow block is used in industrial plant environments wherever a mounted bearing solution is needed for shaft support. Typical installations include conveyor drive systems, blower assemblies, pump stations, and agricultural equipment. The cast iron housing provides rigidity and dimensional stability across a range of operating environments. The set screw lock type allows for straightforward shaft retention without requiring a keyed or eccentric collar arrangement.

Key Features

• 1-11/16 inch bore ID for direct shaft mounting
• Cast iron housing for rigid, durable support in demanding environments
• 52100 steel bearing insert for reliable load performance
• Set screw locking mechanism for secure shaft retention
• 5,139 pound static load capacity and 7,901 pound dynamic load capacity
• 5-21/32 inch distance between mounting hole centers for standard bolt patterns

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block bearing for industrial shaft support applications requiring a 1-11/16 inch bore with cast iron housing and set screw locking.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic familiar with mounted bearing procedures. Lock out and tag out all power sources before removing or installing bearing units on any rotating shaft. Ensure the mounting surface is flat and clean before torquing fasteners, and verify shaft diameter matches the 1-11/16 inch bore before installation. Do not hammer directly on the bearing housing or insert during installation.
