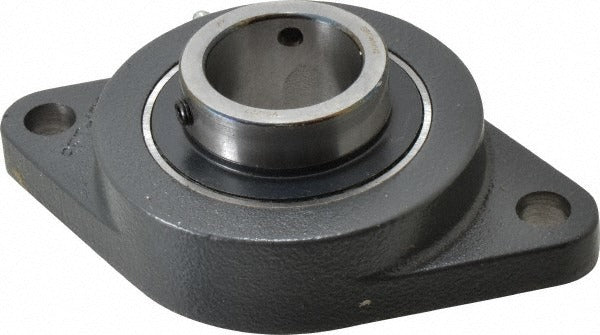

Browning 767416 2-bolt Flange Bearing 1-11/16 in Id

Product Description

The BROWNING 767416 is a 2-bolt flange bearing unit designed for industrial shaft support and radial load applications. It carries an inner diameter of 1-11/16 inches and is built around a 52100 steel insert secured by a set screw lock. The cast iron housing provides rigid, durable support in demanding environments. With a static load capacity of 5,139 pounds and a dynamic load capacity of 7,901 pounds, this unit is rated for heavy-duty use. Overall length measures 7-1/16 inches and overall height measures 4-3/8 inches. Millwrights, maintenance mechanics, and industrial service technicians typically install this type of bearing unit in conveyor, fan, and general power-transmission applications.

This flange bearing is suited for use in manufacturing, material handling, agricultural equipment, and HVAC fan assemblies where a 2-bolt mounting pattern is required. The 2-bolt flange configuration allows for straightforward surface mounting on equipment frames and structural members. Mounting hole centers are spaced 5-27/32 inches apart, and the 9/16-inch bolt size is standard for this frame. The unit is supplied as a complete, ready-to-mount assembly.

Key Features

• Cast iron housing for rigid, corrosion-resistant support in industrial environments
• 52100 steel bearing insert for high load capacity and wear resistance
• Set screw lock secures shaft position and resists axial movement
• Static load capacity of 5,139 pounds and dynamic load capacity of 7,901 pounds
• 2-bolt mounting pattern with 5-27/32 inches between mounting hole centers
• 9/16-inch bolt size for compatibility with standard fastener tooling

Compatibility

Designed as a direct-mount 2-bolt flange bearing for shafts with a 1-11/16-inch diameter in industrial power-transmission and equipment support applications.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance technician. De-energize and lock out all connected equipment before beginning installation per LOTO procedures. Ensure the shaft is clean and free of burrs before seating the bearing, and tighten set screws to the fastener manufacturer's specification using a calibrated torque wrench. Verify proper shaft alignment after mounting to avoid premature bearing wear.
