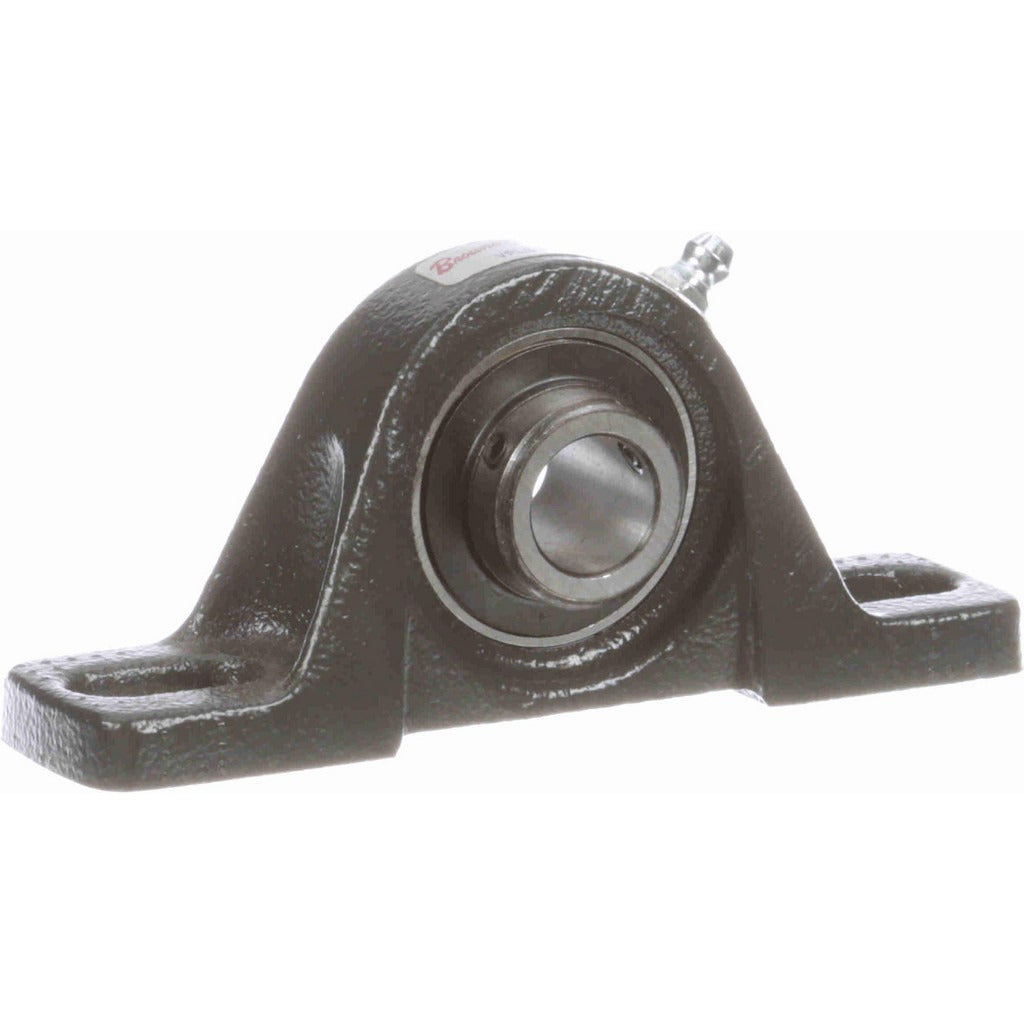

Browning 767402 Pillow Block Bearing 0.625 in Id Cast Iron

Product Description

The BROWNING 767402 is a two-bolt pillow block bearing in the VPLS 200 series, designed to support rotating shafts in light-to-medium duty industrial and mechanical drive applications. The unit features a 0.625 inch straight bore with a set screw locking mechanism, a cast iron housing, and a 52100 bearing steel insert. It carries a static load capacity of 1,444 pounds and a dynamic load capacity of 2,611 pounds, making it a dependable choice for general-purpose shaft support where reliable radial load performance is required. The overall assembly measures 4.875 inches in length and 2.094 inches in overall height.

This pillow block is suited for conveyor systems, fan shafts, pump drives, and similar rotating equipment found in industrial, agricultural, and HVAC mechanical rooms. The two-bolt base mounts to standard flat surfaces with mounting hole centers spaced 3.625 inches apart. The base-to-center height of 1.063 inches accommodates standard shaft alignment in most inline drive configurations. Maintenance technicians and millwrights typically install this unit as an OEM replacement or in new belt-driven or chain-driven shaft assemblies.

Key Features

• 0.625 inch straight bore with set screw locking for positive shaft retention
• 52100 bearing steel insert rated to 7,500 RPM maximum
• Static load capacity of 1,444 pounds and dynamic load capacity of 2,611 pounds
• Cast iron housing for durability in industrial environments
• Two-bolt mounting with 3.625 inch center-to-center hole spacing
• Bearing length of 1.031 inches with a flange height of 0.344 inches

Compatibility

Designed as an OEM-style replacement pillow block bearing for two-bolt mounting applications requiring a 0.625 inch straight bore shaft and VPLS 200 series dimensional envelope.

Installation Notes

Installation is typically performed by a qualified millwright or maintenance technician. Disconnect and lock out all power to the drive system before removing or installing any bearing unit. Ensure the mounting surface is flat and clean before torquing the mounting bolts, and confirm shaft alignment before tightening the set screws to prevent premature bearing wear. Consult applicable machinery safety standards and the equipment manufacturer's service documentation for specific procedure requirements.
