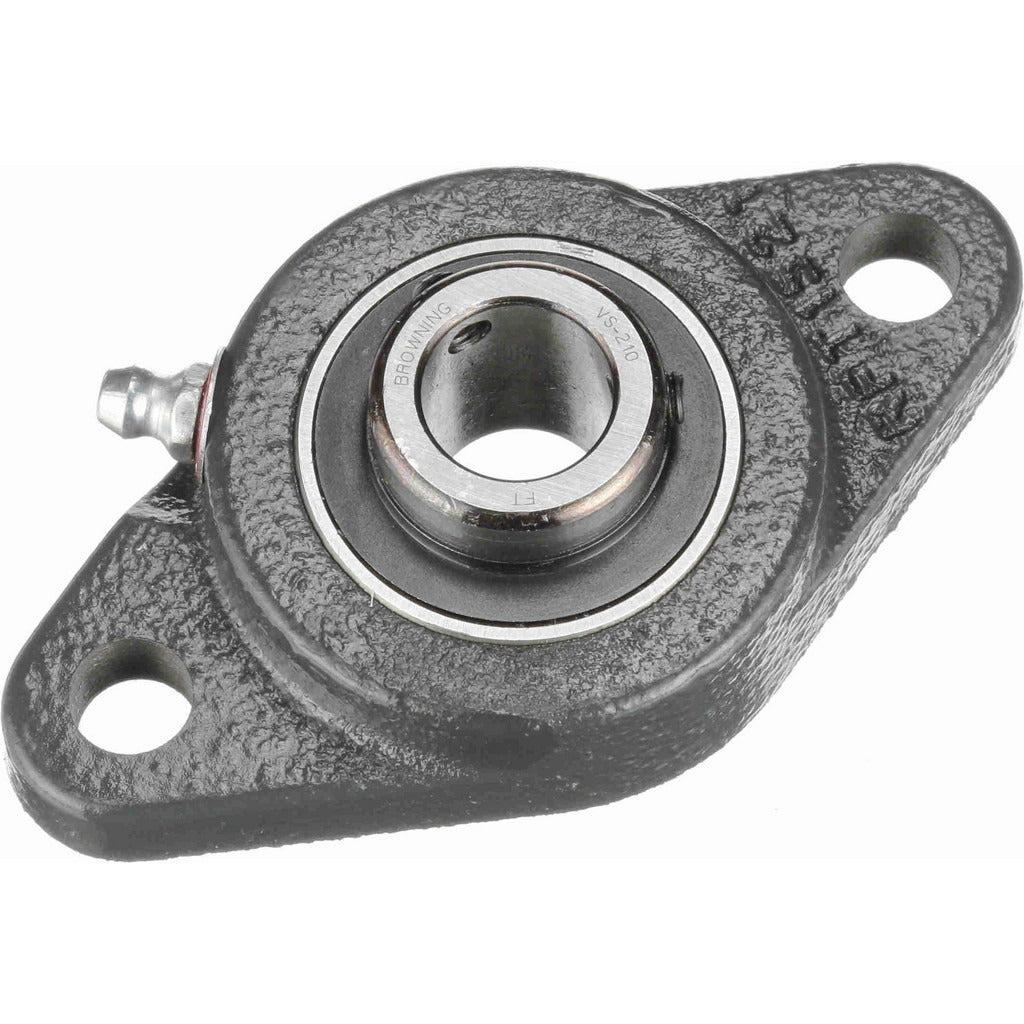

Browning 767400 2-bolt Flange Bearing 5/8 Inch Id

Product Description

The BROWNING 767400 is a VF2S-210 series 2-bolt flange bearing unit designed for light-to-medium duty shaft support in industrial and commercial equipment. The cast iron housing accepts a 5/8-inch inner diameter shaft and secures via set screw lock. The 52100 steel ball bearing insert provides a static load capacity of 1,444 pounds and a dynamic load capacity of 2,611 pounds. Rated to 7,500 RPM, this flange unit handles moderate-speed rotating equipment with consistent performance. Lubrication is required as part of routine maintenance. Overall length is 3-7/8 inches and overall height is 2-1/8 inches.

The 767400 is suited for use in conveyor systems, fans, pumps, agricultural machinery, and general industrial drive applications where a two-bolt mounting footprint is required. The 3-inch bolt hole center-to-center spacing and 3/8-inch bolt size align with standard mounting patterns found on common equipment frames and base plates. This unit is typically installed by millwrights, maintenance mechanics, or industrial technicians during equipment assembly or bearing replacement service.

Key Features

• 5/8-inch bore with set screw lock for positive shaft retention
• Static load capacity of 1,444 pounds and dynamic load capacity of 2,611 pounds
• Maximum shaft speed of 7,500 RPM
• Cast iron housing for durability in industrial environments
• 52100 steel ball bearing insert for reliable load handling
• 3-inch center-to-center bolt spacing fits standard 2-bolt mounting patterns

Compatibility

Designed as an OEM-style replacement or direct-fit unit for equipment requiring a 2-bolt flange bearing with a 5/8-inch bore, 3-inch bolt hole center-to-center spacing, and a 3/8-inch bolt size.

Installation Notes

Power down and de-energize all equipment before removing or installing bearing units. Ensure the shaft is clean and free of burrs before seating the bearing insert. Tighten set screws to the equipment manufacturer's specified torque using the appropriate hex key. Apply grease per the lubrication schedule required for this bearing insert before placing the unit into service.
