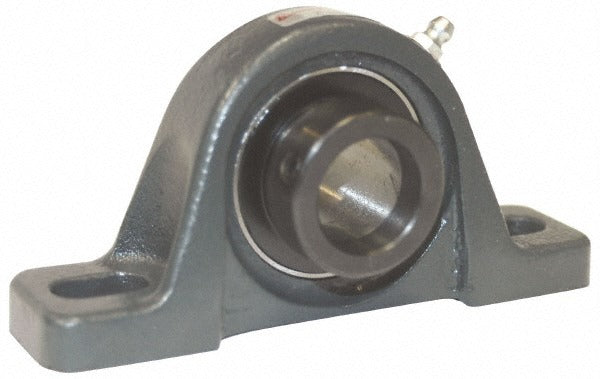

Browning 767389 Pillow Block Bearing 2-3/16 in VPLE-235

Product Description

The BROWNING 767389 is a cast iron pillow block bearing in the VPLE-235 series, designed to support rotating shafts in industrial machinery and mechanical drive systems. It features a 2-3/16 inch bore with an eccentric lock collar for positive shaft retention without keyways or set screws alone. The bearing carries a static load capacity of 6,601 pounds and a dynamic load capacity of 9,752 pounds, making it well suited for moderate-to-heavy radial load applications. The insert is manufactured from 52100 steel, a through-hardened bearing steel known for fatigue resistance under continuous cycling loads. Licensed mechanical technicians and millwrights are the primary installers.

This pillow block is used in conveyor systems, agricultural equipment, industrial fans, pumps, and general power transmission assemblies where a shaft must be supported at a fixed point on a flat mounting surface. The eccentric lock design allows quick installation and removal without specialized tooling, which suits applications with periodic shaft removal for maintenance. The cast iron housing resists deformation under sustained load and is appropriate for indoor and sheltered outdoor environments where corrosive chemical exposure is minimal.

Key Features

• 2-3/16 inch bore diameter for direct shaft fit without adapter sleeve
• Eccentric collar lock provides positive shaft retention under radial and axial load
• 52100 steel insert for high fatigue resistance under continuous rotation
• Cast iron housing for rigidity and dimensional stability under sustained radial load
• 6,601 pound static and 9,752 pound dynamic load capacity for moderate-to-heavy duty service
• Two-bolt base mounting pattern with 6-15/16 inch center-to-center spacing

Compatibility

Designed as an OEM-style replacement or direct installation pillow block bearing for 2-3/16 inch diameter shafts in two-bolt flat-base mounting configurations common to industrial power transmission equipment.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out all rotating equipment before mounting or removing the bearing. Align the housing squarely on the mounting surface before tightening fasteners to avoid preloading the insert. Seat the eccentric collar in the direction of shaft rotation and secure the set screw to complete the lock before returning the system to service.
