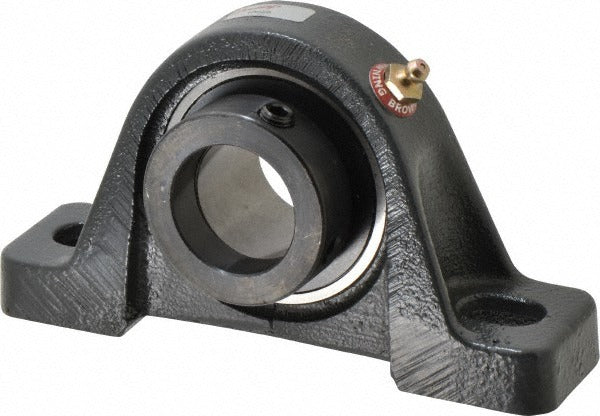

Browning 767385 Pillow Block Bearing 1-7/16 in Id Cast Iron

Product Description

The BROWNING 767385 is a cast iron pillow block bearing designed for industrial shaft support applications. It carries the manufacturer part number VPE-223 and features a 1-7/16 inch inside diameter bore with an eccentric collar lock for secure shaft retention. The unit measures 6-3/4 inches overall length and 3-11/16 inches overall height, with a static load capacity of 3,493 pounds and a dynamic load capacity of 5,782 pounds. The 52100 steel insert provides durability under cyclic loading. This bearing is installed by millwrights, maintenance mechanics, and industrial technicians in conveyor, fan, pump, and general power-transmission systems.

The BROWNING 767385 pillow block is suited for mounting on flat surfaces where shaft support is required at fixed centers. The 5 inch distance between mounting hole centers and 1-7/8 inch base-to-center height make it appropriate for standard industrial equipment frames. It is commonly used in light-to-medium duty conveyor systems, agricultural equipment, HVAC fan assemblies, and general manufacturing machinery where a two-bolt pillow block configuration is specified.

Key Features

• 1-7/16 inch bore with eccentric collar lock for positive shaft engagement
• 52100 steel bearing insert for high fatigue resistance under dynamic loads
• Cast iron housing provides rigid support and corrosion resistance in typical indoor environments
• 3,493 pound static load capacity and 5,782 pound dynamic load capacity
• 5 inch mounting hole center-to-center spacing for straightforward bolt-down installation
• 1-7/8 inch base-to-center height suits standard shaft elevation requirements

Compatibility

Designed as an OEM-style replacement or direct-install pillow block bearing for industrial shaft support applications requiring a two-bolt cast iron housing with a 1-7/16 inch bore and eccentric lock collar.

Installation Notes

Installation is typically performed by a qualified millwright or maintenance mechanic. De-energize and lock out all connected equipment before removing or installing any bearing. Align the pillow block to the shaft carefully before tightening mounting fasteners to prevent misalignment-induced bearing stress. Tighten the eccentric collar lock in the direction of shaft rotation and verify proper lubrication per the equipment manufacturer's requirements before returning the system to service.
