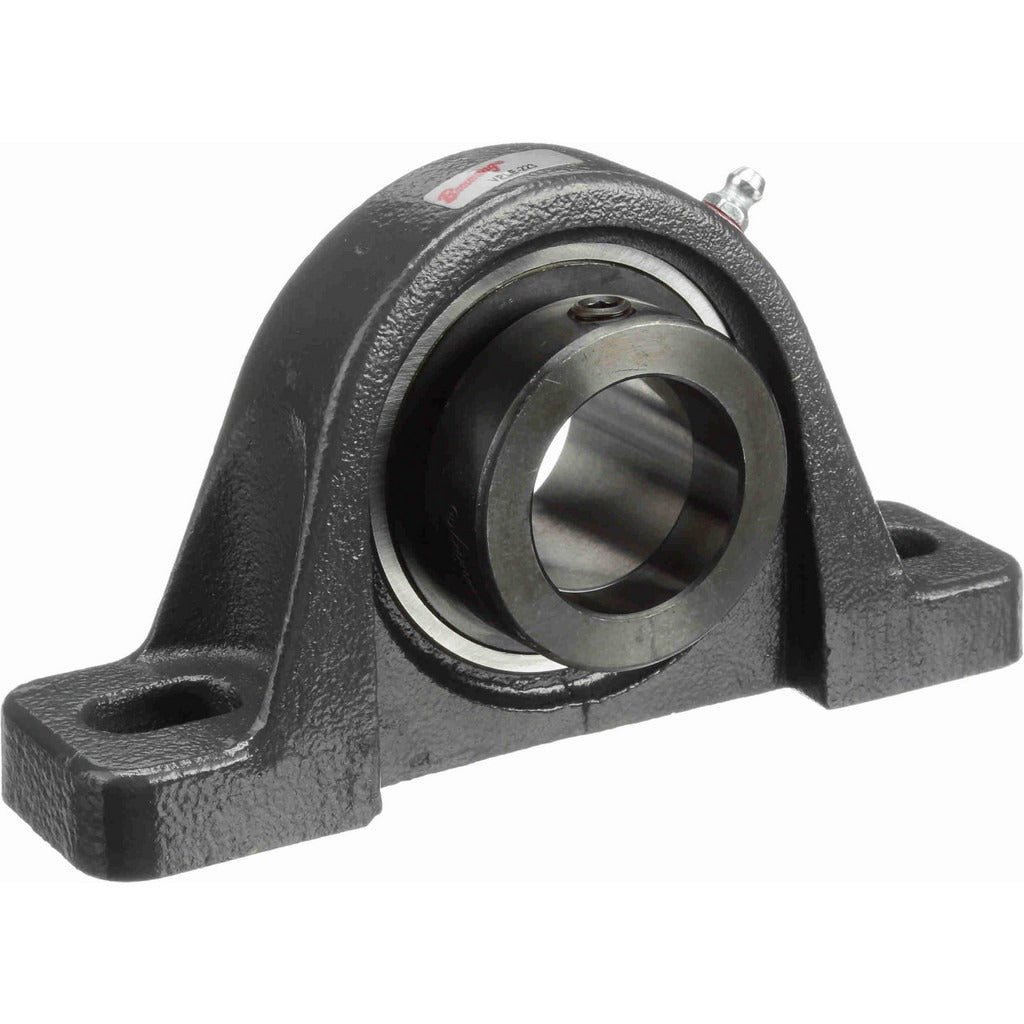

Browning 767384 Pillow Block Bearing 1-7/16 in Cast Iron

Product Description

The BROWNING 767384 is a VPLE 200 Series pillow block bearing designed for industrial shaft support applications requiring a straight bore and reliable radial load handling. The unit features a 1-7/16 inch inside diameter, a cast iron housing, and a 52100 bearing steel insert with an eccentric lock collar for secure shaft retention. Static load capacity is rated at 3,493 pounds and dynamic load capacity at 5,782 pounds, making this unit well suited to moderate-to-heavy duty rotating equipment. It is installed by millwrights, industrial mechanics, and maintenance technicians on equipment requiring a two-bolt pedestal-mount bearing block.

This pillow block is intended for use in industrial and commercial mechanical systems where shaft speeds do not exceed 4,000 RPM. Typical applications include conveyor drives, fan shafts, pump assemblies, and general power transmission equipment. The VPLE 200 Series configuration provides a compact footprint with a 5 inch distance between mounting hole centers and an overall height of 3-5/8 inches, fitting into standard pedestal or base-plate mounting arrangements common in light manufacturing and process environments.

Key Features

• 1-7/16 inch straight bore accommodates standard shaft diameters in the VPLE 200 Series range
• Cast iron housing delivers rigidity and resistance to deformation under sustained radial load
• 52100 bearing steel insert provides hardness and fatigue resistance for rotating service
• Eccentric lock collar secures the insert to the shaft without set screws damaging the shaft surface
• 3,493 lb static and 5,782 lb dynamic load ratings support moderate-to-heavy duty applications
• Rated to 4,000 RPM maximum, suitable for a wide range of industrial drive speeds

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for industrial power transmission systems accepting a 1-7/16 inch straight bore, two-bolt pedestal mount in the VPLE 200 Series configuration.

Installation Notes

Installation is performed by qualified millwrights or industrial maintenance mechanics. De-energize and lock out all power to the drive system before removing or installing any bearing block. Ensure the mounting surface is flat and clean before torquing the two mounting bolts to the equipment manufacturer specifications. After installation, verify shaft alignment and eccentric collar engagement before returning the system to service.
