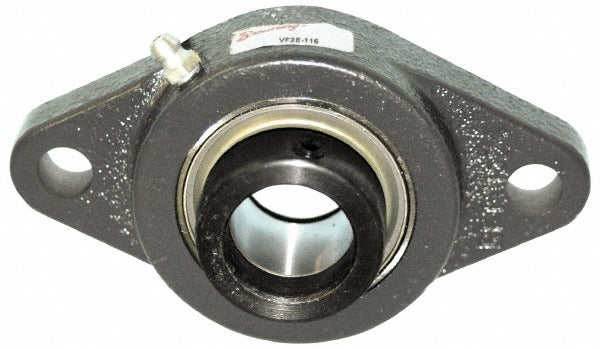

Browning 767382 2-bolt Flange Bearing 1-7/16 Inch Id

Product Description

The BROWNING 767382 is a 2-bolt flange bearing unit designed for shaft mounting in industrial and mechanical drive applications. Built with a cast iron housing and a 52100 steel insert, this bearing accepts a 1-7/16 inch shaft and uses an eccentric lock collar to secure the shaft in place. It carries a static load capacity of 3,493 pounds and a dynamic load capacity of 5,782 pounds, making it well suited for moderate-to-heavy radial load service. The 2-bolt mounting pattern and standardized envelope dimensions allow straightforward installation in conveyor frames, blower mounts, fan shafts, and similar power transmission equipment. Licensed millwrights, maintenance mechanics, and industrial technicians are the primary installers.

This flange bearing is used wherever a 2-bolt pillow-style flange unit is required on a 1-7/16 inch shaft. Typical applications include HVAC fan shaft assemblies, commercial blower systems, light conveyor drives, agricultural equipment, and general industrial machinery requiring a compact flange mount. The 5-1/8 inch distance between mounting hole centers suits standard slotted mounting channels and fabricated base plates common in these installations.

Key Features

• 1-7/16 inch bore accepts standard shaft sizes without machining
• Eccentric lock collar provides positive shaft retention under radial load
• Cast iron housing resists impact and distortion in industrial environments
• 52100 steel bearing insert for high-load capacity and wear resistance
• Static load capacity: 3,493 pounds; Dynamic load capacity: 5,782 pounds
• 2-bolt mounting pattern with 1/2 inch bolt size for simple panel or frame installation

Compatibility

Designed as an OEM-style replacement or direct-install 2-bolt flange bearing for 1-7/16 inch shaft applications in industrial, HVAC, and mechanical drive equipment requiring a cast iron flange unit with eccentric lock.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power to the driven equipment before removing or mounting the bearing unit. Secure the housing using 1/2 inch fasteners torqued to the equipment manufacturer's specification, and seat the eccentric lock collar in the direction of shaft rotation before tightening. Verify shaft alignment before returning the equipment to service to prevent premature bearing wear.
