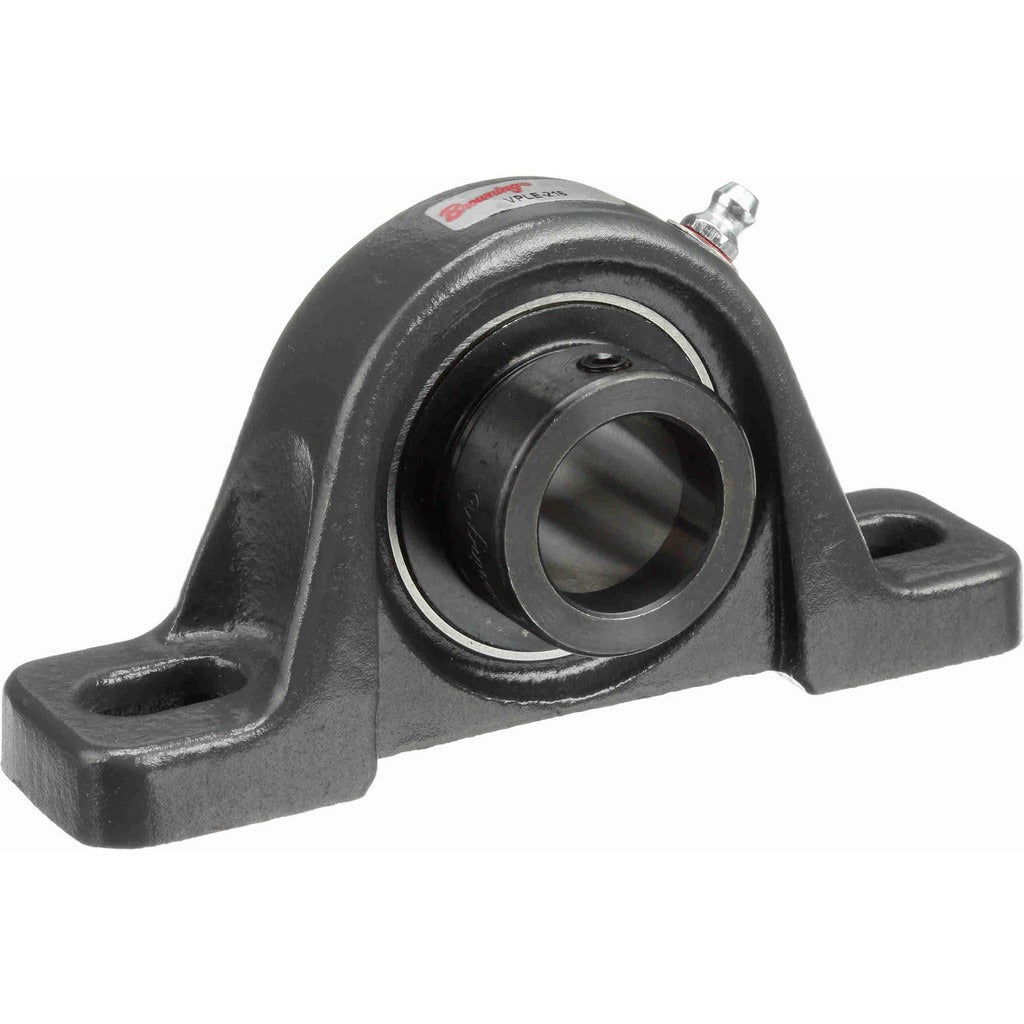

Browning 767363 Pillow Block Bearing 1 in Id Vple 200

Product Description

The BROWNING 767363 is a two-bolt pillow block bearing in the VPLE 200 Series, designed for industrial shaft support applications where a compact, reliable mounted bearing is required. The unit features a 1-inch straight bore with eccentric lock collar, housed in a cast iron block measuring 5.5 inches overall length and 2.6875 inches overall height. The 52100 bearing steel ball insert provides a static load capacity of 1,651 pounds and a dynamic load capacity of 2,801 pounds, making it suitable for moderate-to-heavy radial load service. Licensed HVAC, mechanical, and millwright technicians install this type of bearing in blower assemblies, fan shafts, conveyor systems, and industrial equipment drives.

The BROWNING 767363 fits residential and light commercial applications where a standard two-bolt pillow block is specified for shaft diameters of 1 inch. Typical installation scenarios include belt-driven blower shafts, exhaust fans, pump assemblies, and general power transmission equipment. The eccentric locking collar allows straightforward shaft positioning without the need for set screw modification. The cast iron housing resists corrosion in light industrial and mechanical room environments. Mounting hole center-to-center spacing is 4.125 inches, accommodating standard bolt patterns on equipment frames and mounting plates.

Key Features

• 1-inch straight bore with eccentric lock collar for positive shaft retention
• 52100 bearing steel ball insert rated to 5,500 RPM maximum
• Static load capacity of 1,651 pounds and dynamic load capacity of 2,801 pounds
• Cast iron housing for durability in mechanical and light industrial environments
• Two-bolt mounting with 4.125-inch center-to-center bolt spacing
• VPLE 200 Series design with 1.75-inch bearing length

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block bearing for two-bolt mounted bearing applications requiring a 1-inch straight bore in the VPLE 200 Series configuration.

Installation Notes

Pillow block bearings of this type are installed by licensed millwrights, mechanical contractors, or qualified HVAC technicians. Shut down and lock out all power to the driven equipment before removing or installing the bearing assembly. Verify shaft diameter and alignment before securing the eccentric lock collar, and torque mounting bolts to the equipment manufacturer's specifications. Consult applicable ANSI and OSHA lockout/tagout standards before beginning service work.
