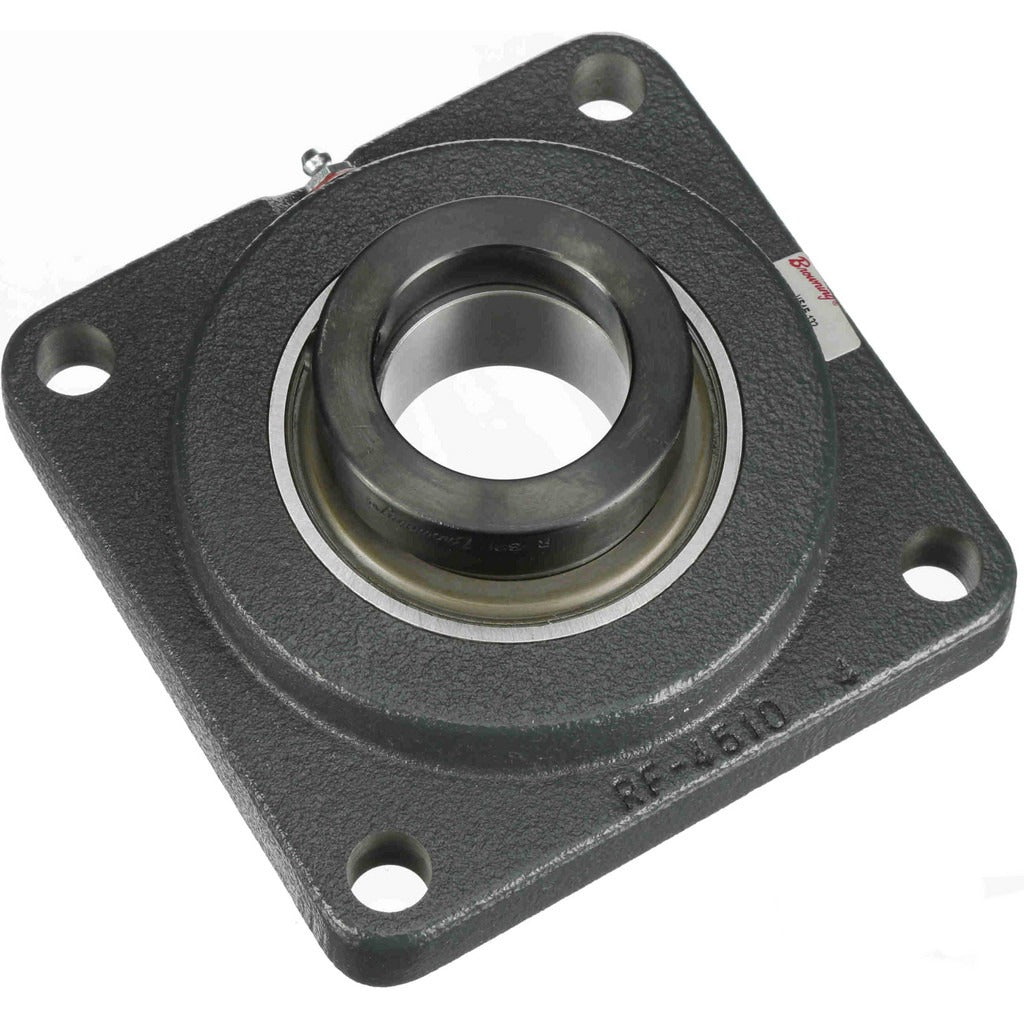

Browning 767328 4-bolt Flange Bearing 2 Inch Id Cast Iron

Product Description

The BROWNING 767328 is a 4-bolt flange bearing unit designed for industrial and commercial power transmission applications. It features a 2-inch inside diameter bore with an eccentric lock mechanism to secure the bearing insert to the shaft. The cast iron housing measures 6-3/8 inches in overall length and 6-3/8 inches in overall height, with a static load capacity of 6,601 pounds and a dynamic load capacity of 9,752 pounds. The bearing insert is manufactured from 52100 steel and requires periodic lubrication. This unit is rated to a maximum of 1,750 RPM and is part of the VF4E 100 series.

This flange unit is suited for shaft support applications in industrial machinery, conveyor systems, agricultural equipment, HVAC fan assemblies, and similar power transmission setups where a rigid, bolt-down bearing mount is required. The 4-bolt flange configuration provides a stable, high-load mounting platform on flat surfaces. Technicians and millwrights working on rotating equipment installations will find this unit appropriate for both new builds and replacement applications requiring a 2-inch bore flange bearing.

Key Features

• Cast iron housing for durability in industrial environments
• 52100 steel bearing insert with eccentric lock for positive shaft retention
• 6,601 pounds static load capacity and 9,752 pounds dynamic load capacity
• 4-bolt flange mount with 5-1/8 inch center-to-center mounting hole spacing
• 5/8 inch bolt size for standard hardware compatibility
• Maximum operating speed of 1,750 RPM
• Grease fitting included for required periodic lubrication

Compatibility

Designed as an OEM-style replacement or direct-fit bearing unit for applications requiring a 4-bolt flange mount with a 2-inch bore in the VF4E 100 series.

Installation Notes

Installation should be performed by a qualified mechanic or millwright. Power down and lock out all rotating machinery before removing or installing any bearing unit. Ensure the mounting surface is clean, flat, and free of debris before torquing the flange bolts. After installation, verify shaft alignment and apply the appropriate grease to the lubrication fitting before returning the unit to service.
