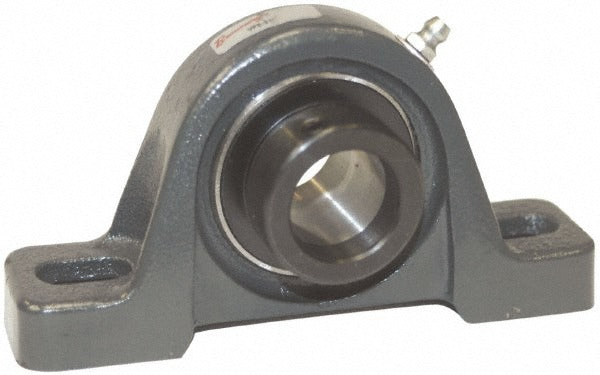

Browning 767327 Pillow Block Bearing 2 Inch Id Cast Iron

Product Description

The BROWNING 767327 is a VPE-132 series pillow block bearing designed for industrial shaft support applications. It features a 2 inch inside diameter and accepts an eccentric lock collar for positive shaft retention without set screws damaging the shaft surface. The cast iron housing measures 8-13/16 inches overall length and 4-31/32 inches overall height, with a static load capacity of 6,601 pounds and a dynamic load capacity of 9,752 pounds. The 52100 steel bearing insert provides hardness and wear resistance suited to moderate-to-heavy radial load environments. Maintenance professionals and millwrights install this unit in conveyor systems, agricultural equipment, fans, and general industrial machinery.

This pillow block fits applications requiring a 2 inch shaft with a two-bolt mounting footprint. The 6-15/16 inch distance between mounting hole centers and 2-1/2 inch base-to-center height make it a standard fit for many existing equipment frames. The eccentric locking collar suits installations where shaft rotation direction is consistent, allowing the collar to self-tighten under load. Typical environments include material handling lines, pump drives, and light-to-medium duty industrial drive trains in both indoor and sheltered outdoor settings.

Key Features

• 2 inch bore with eccentric lock collar for positive shaft retention
• 6,601 pound static load capacity and 9,752 pound dynamic load capacity
• Cast iron housing for durability in industrial environments
• 52100 steel bearing insert for hardness and wear resistance
• 6-15/16 inch mounting hole center distance for standard two-bolt installation
• 2-1/2 inch base-to-center height for consistent shaft alignment

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block bearing for industrial shaft support applications requiring a 2 inch bore two-bolt pillow block housing.

Installation Notes

Installation is performed by millwrights or qualified maintenance technicians. De-energize and lock out all power to the driven equipment before removing the old bearing or mounting the new unit. Ensure the mounting surface is flat and clean before torquing fasteners to the equipment manufacturer's specifications. Do not use the eccentric collar to correct misalignment — align the shaft properly before locking the collar.
