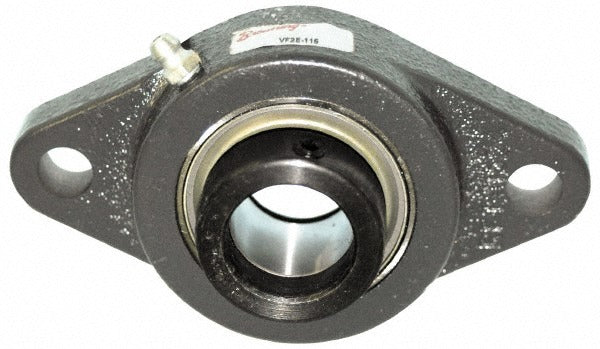

Browning 767325 2-bolt Flange Bearing 1-15/16 in Id

Product Description

The BROWNING 767325 is a 2-bolt flange bearing unit designed for mounting rotating shafts in industrial and mechanical power-transmission applications. The bearing features a 1-15/16 inch inside diameter and uses an eccentric lock collar to secure the shaft in position. The cast iron housing provides rigid support, while the 52100 steel insert delivers the load-handling capacity needed in demanding service environments. Static load capacity is rated at 5,216 pounds and dynamic load capacity reaches 7,889 pounds. Overall dimensions are 7-7/16 inches in length and 4-9/16 inches in height. Licensed millwrights, maintenance technicians, and industrial mechanics typically install this type of bearing unit.

This flange bearing is suited for shaft-mounting applications in conveyor systems, fan assemblies, agricultural equipment, and general industrial machinery where a 2-bolt flange mount is specified. The 6-3/16 inch distance between mounting hole centers and 9/16 inch bolt size align with standard mounting patterns common in HVAC fan assemblies, blower units, and light-to-medium industrial drive systems. The unit ships individually and is packaged for single-unit installation or direct replacement service.

Key Features

• 1-15/16 inch bore with eccentric lock collar for positive shaft retention
• 5,216 pound static load capacity and 7,889 pound dynamic load capacity
• Cast iron housing for rigid, durable shaft support
• 52100 steel bearing insert for high load and wear resistance
• 2-bolt flange mount with 6-3/16 inch center-to-center hole spacing
• 9/16 inch bolt size matches standard industrial flange mounting hardware

Compatibility

Designed as an OEM-style replacement or direct-install 2-bolt flange bearing unit for industrial shafts with a 1-15/16 inch diameter requiring eccentric lock retention and a 2-bolt cast iron flange housing.

Installation Notes

Installation is typically performed by a licensed millwright or qualified maintenance mechanic. Shut down and lock out all power to the drive system before removing the existing bearing or mounting this unit. Ensure the mounting surface is flat and clean before torquing the flange bolts. Do not over-tighten the eccentric lock collar, as this can induce preload on the bearing and shorten service life.
